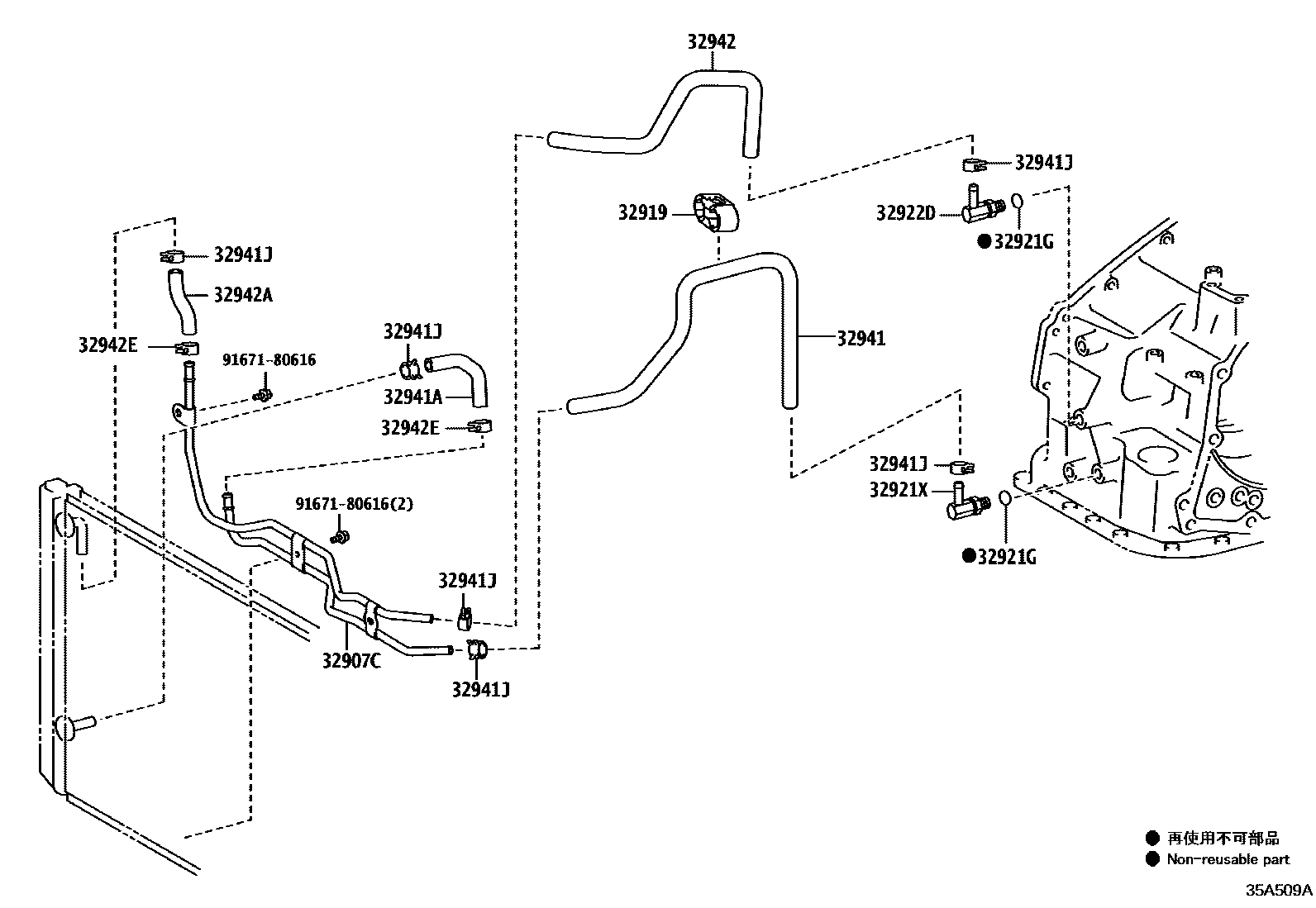

OIL COOLER & TUBE (ATM)

0001 1U660E 0002 1UA80E

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-58070iGGH31..6FC202001

main32907-58080iGGH31..8FC202001

32919HOLDER, OIL COOLER TUBE

main32919-58010iGGH31..6FC202001

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-14032iGGH31..6FC202001

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-14032iGGH31..6FC202001

32941HOSE, OIL COOLER INLET, NO.1

main32941-58030iGGH31..6FC202001

main32941-58070iGGH31..8FC202001

32941AHOSE, OIL COOLER INLET, NO.2

main32942-28270iGGH31..6FC202001

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×6iGGH31..8FC202001

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-58020iGGH31..6FC202001

main32942-58070iGGH31..8FC202001

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-17179iGGH31..6FC202001

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iGGH31..8FC202001

9167180616

main91671-80616

12 parts on this diagram · 2 diagrams in section
