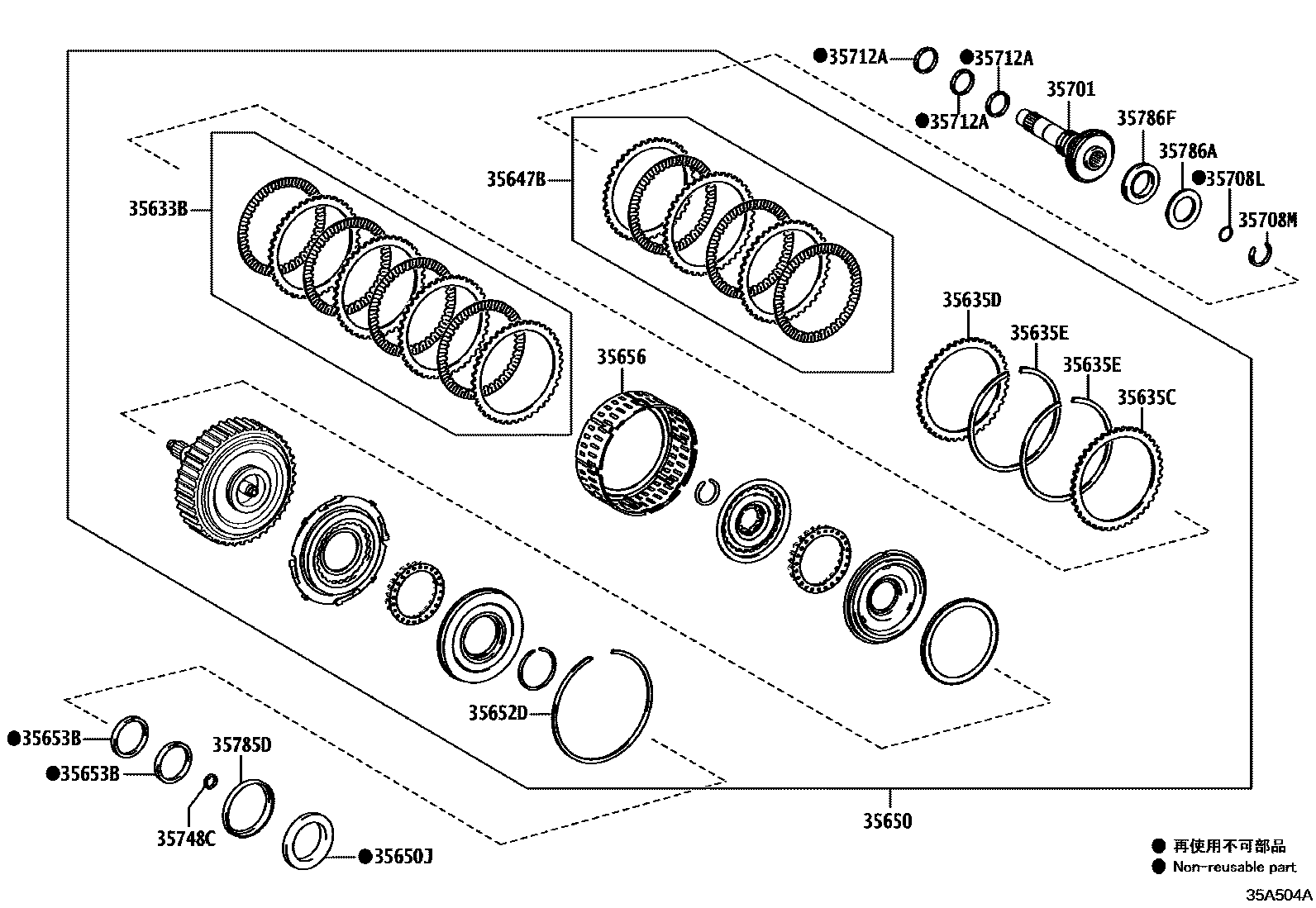

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
T=4.3,TOYOTA:REFER 35-01
T=4.3,AISIN AW:REFER 35-01
T=4.4,TOYOTA:REFER 35-01
T=4.4,AISIN AW:REFER 35-01
T=4.5,AISIN AW:REFER 35-01
T=4.5,TOYOTA:REFER 35-01
T=4.6,TOYOTA:REFER 35-01
T=4.6,AISIN AW:REFER 35-01
T=4.7,TOYOTA:REFER 35-01
T=4.7,AISIN AW:REFER 35-01
T=4.8,TOYOTA:REFER 35-01
T=4.8,AISIN AW:REFER 35-01
T=4.9,AISIN AW:REFER 35-01
T=4.9,TOYOTA:REFER 35-01
T=5.0,TOYOTA:REFER 35-01
T=5.0,AISIN AW:REFER 35-01
T=5.1,TOYOTA:REFER 35-01
T=5.1,AISIN AW:REFER 35-01
35635CCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.1
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35635DCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.2
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35635ERING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
35647BPLATE, CLUTCH, NO.2
NO.1,AISIN:SEE 35-01
*229,NO.1:REF.ILLUST
*229,NO.2:REF.ILLUST
NO.2,AISIN:SEE 35-01
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35656PISTON, DIRECT CLUTCH, NO.2
35701SHAFT SUB-ASSY, INPUT
35708LRING, O (FOR INTERMEDIATE SHAFT)
*229,NO.1:REF.ILLUST
NO.1,AISIN:SEE 35-01
*229,NO.2:REF.ILLUST
NO.2,AISIN:SEE 35-01
35708MRING, SNAP (FOR INTERMEDIATE SHAFT)
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35786FBEARING, THRUST NEEDLE ROLLER
20 parts on this diagram · 2 diagrams in section
