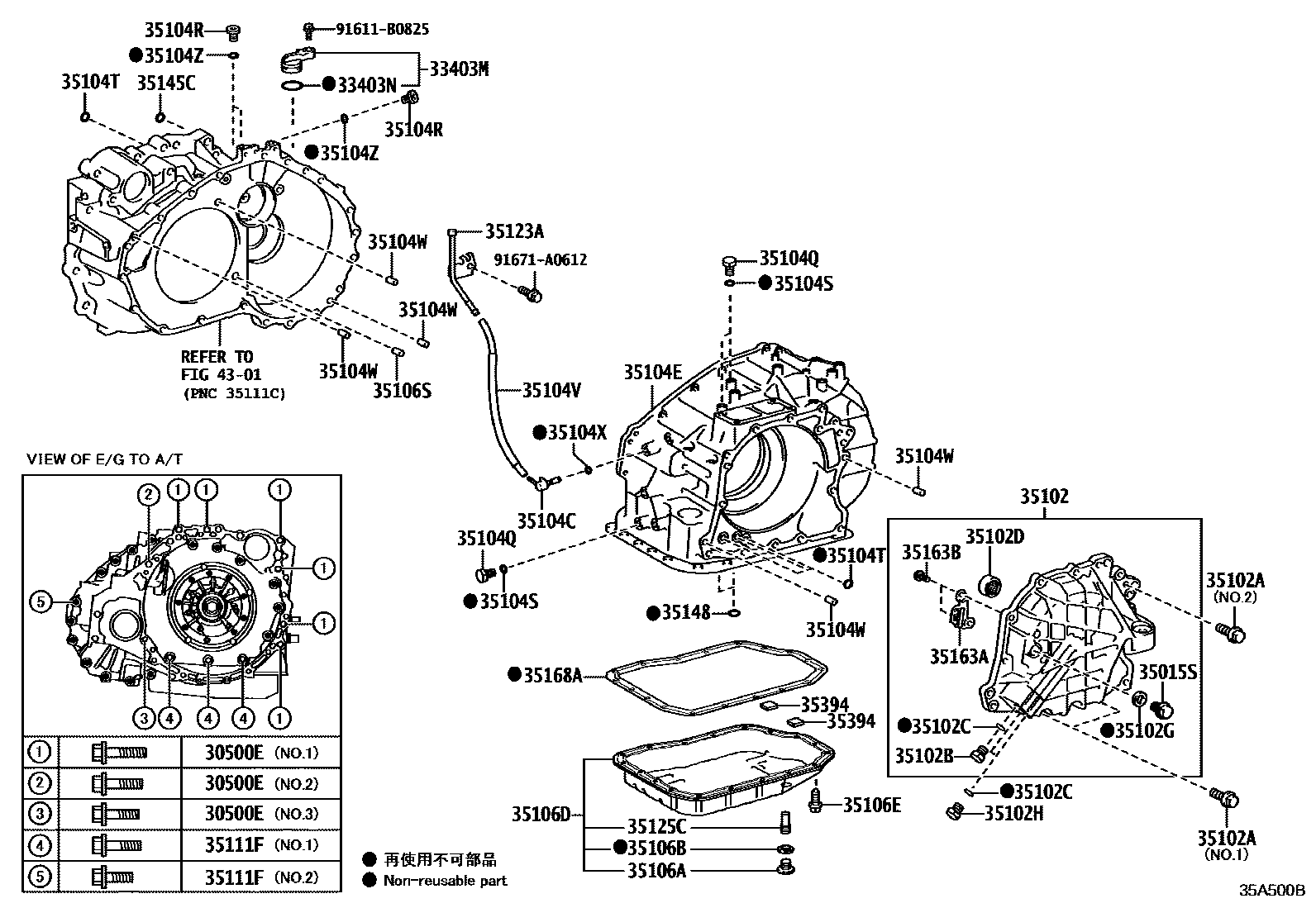

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U660E 0002 1UA80E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGGH31..6FC202001

*10-1.25PX41-28,NO.3:REFER ILLUST.

main90119-12168×6iGGH31..6FC202001

*12-1.25PX55-30,NO.1:REFER ILLUST.

main90119-12250iGGH31..6FC202001

*12-1.25PX50-30,NO.2:REFER ILLUST.

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iGGH31..6FC202001

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iGGH31..6FC202001

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-28042iGGH31..6FC202001

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iGGH31..6FC202001

*8-1.25PX28-22,NO.1:REFER ILLUST.

main91551-00828×12iGGH31..6FC202001

*8-1.25PX28-22

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iGGH31..6FC202001

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iGGH31..6FC202001

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iGGH31..6FC202001

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iGGH31..6FC202001

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iGGH31..6FC202001

main90930-03216iGGH31..8FC202001

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-48030iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

main35104-48040iGGH31..8FC202006

AISIN AW:REFER 35-01

main35141-33073iGGH31..6FC202001

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iGGH31..6FC202001

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iGGH31..6FC202001

main90430-14008×3iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

35104VHOSE (FOR BREATHER PLUG)

main35121-58010iGGH31..6FC202001

main35121-58030iGGH31..8FC202001

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iGGH31..6FC202001

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iGGH31..6FC202001

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGGH31..8FC202006

AISIN AW:REFER 35-01

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iGGH31..6FC202001

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iGGH31..6FC202001

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-48011iGGH31..6FC202001

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iGGH31..6FC202001

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iGGH31..6FC202001

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iGGH31..6FC202001

*8-1.25PX45-22,NO.1:REFER ILLUST.

main91551-00835×12iGGH31..8FC202001-202004

*8-1.25PX35-22,*229,NO.2:REF.ILLUST

main91551-00840×9iGGH31..8FC202006

*8-1.25PX40-22,NO.1,AISIN:SEE 35-01

main91551-10845×17iGGH31..6FC202001

*8-1.25PX45-22,NO.2:REFER ILLUST.

35123ASKIRT, TRANSMISSION BREATHER

main35123-28010iGGH31..6FC202001

main35123-58010iGGH31..8FC202001

NO.1:REFER ILLUST.

main35123-58020iGGH31..8FC202001

NO.2:REFER ILLUST.

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33130iGGH31..6FC202001

main35125-48090iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-33010×3iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

main35145-33020×3iGGH31..8FC202103

AISIN AW:REFER 35-01

35148GASKET, GOVERNOR APPLY, NO.1

main35145-33010×2iGGH31..6FC202001

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iGGH31..6FC202001

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iGGH31..6FC202001

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080iGGH31..6FC202001

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGGH31..6FC202001

main35394-48010×3iGGH31..8FC202001-202004

TOYOTA:REFER 35-01

4301

91611B0825

main91611-B0825

91671A0612

main91671-A0612

38 parts on this diagram · 2 diagrams in section
