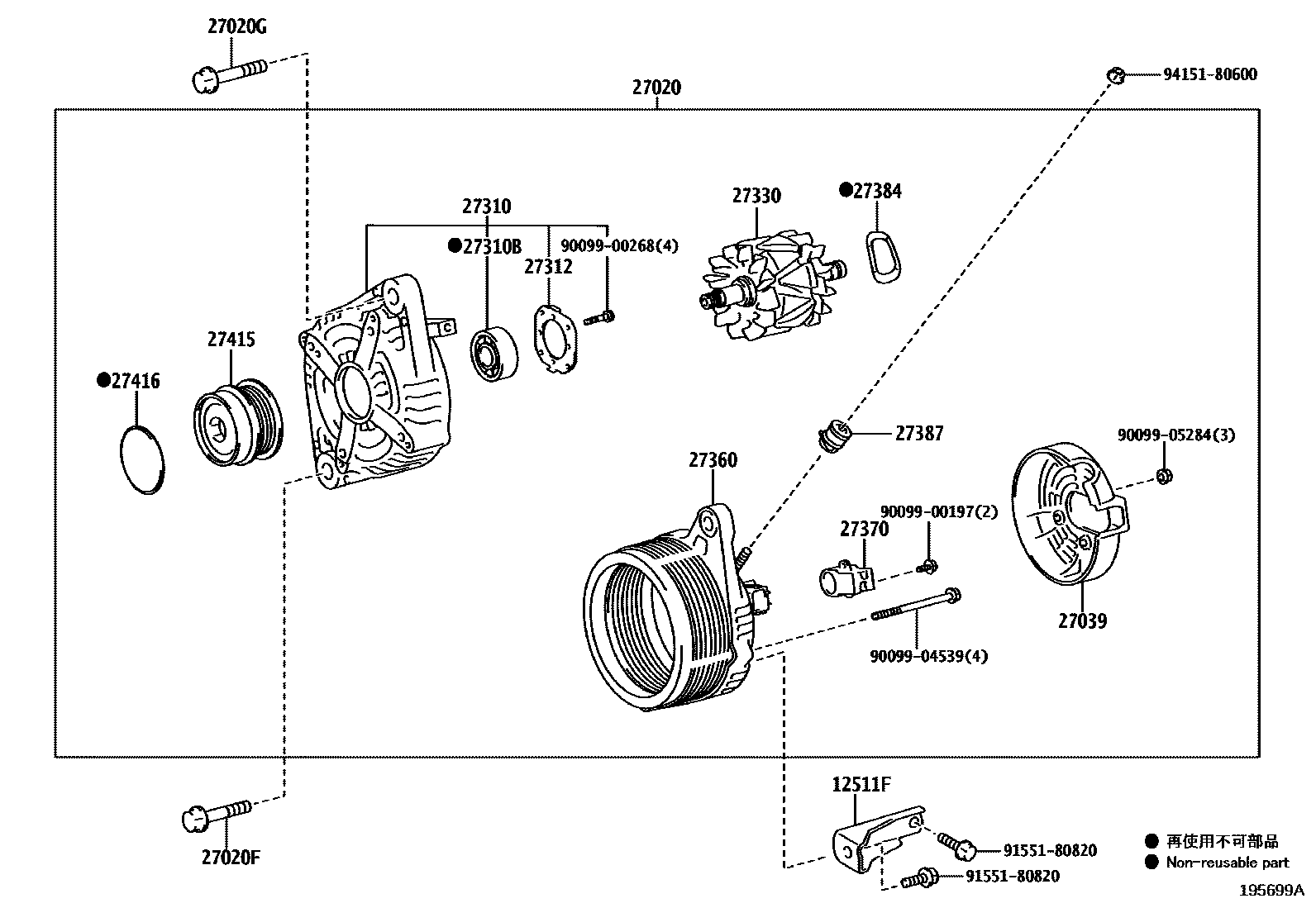

ALTERNATOR

0001 112V 150A 0002 112V 180A

12511FBRACKET, ALTERNATOR, NO.1

main12511-31030i2GRFE..GGH31202001

main12511-31050i2GRFKS..GGH31202001

27020ALTERNATOR ASSY

main27060-31102i2GRFE..GGH31202001

12V 150A

main27060-31410i2GRFKS..GGH31202001

12V 180A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i2GR#..GGH31202001

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i2GRFE..GGH31202001

main91552-81095i2GRFKS..GGH31202001

27039COVER, ALTERNATOR REAR END

main27039-31390i2GRFE..GGH31202001

main27039-38150i2GRFKS..GGH31202001

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31290i2GRFE..GGH31202001

main27310-31630i2GRFKS..GGH31202001

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2GRFE..GGH31202001

main90099-10241i2GRFKS..GGH31202001

27312PLATE, RETAINER

main27312-42010i2GRFKS..GGH31202001

main27312-72100i2GRFE..GGH31202001

27330ROTOR ASSY, ALTERNATOR

main27330-31630i2GRFKS..GGH31202001

main27330-58460i2GRFE..GGH31202001

27360COIL ASSY, ALTERNATOR

main27360-31300i2GRFE..GGH31202001

main27360-31630i2GRFKS..GGH31202001

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2GR#..GGH31202001

27384WASHER

main27384-38130i2GRFKS..GGH31202001

main27384-50030i2GRFE..GGH31202001

27387INSULATOR, TERMINAL

main27387-20130i2GRFE..GGH31202001

main27387-38130i2GRFKS..GGH31202001

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P030i2GRFKS..GGH31202001

main27415-0W131i2GRFE..GGH31202001

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2GR#..GGH31202001

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9155180820

main91551-80820

9415180600

main94151-80600

21 parts on this diagram · 2 diagrams in section
