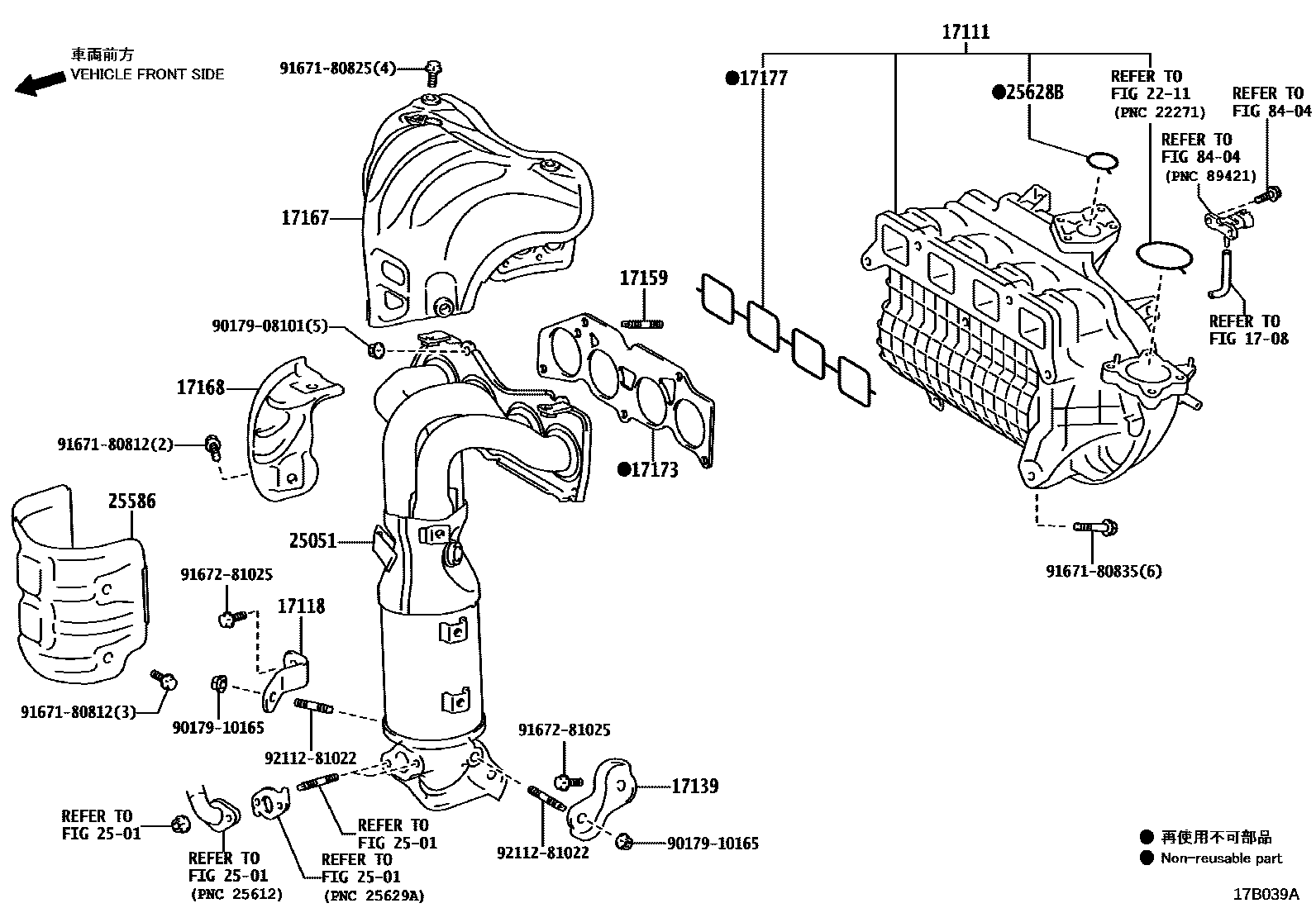

MANIFOLD

0001 1 0002 1 0003 1

1708

17111MANIFOLD, INTAKE

main17111-31141i2GRFE..GGH31202001

main17111-31230i2GRFKS..GGH31202001

main17120-36050i2ARFXE..AYH36202001

17118STAY, MANIFOLD

main17118-31040i2GRFE..GGH31202001

main17118-31190i2GRFKS..GGH31202001

main17118-36020i2ARFXE..AYH36202001

17139STAY, MANIFOLD, NO.2

main17139-36040i2ARFXE..AYH36202001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08037i2ARFXE..AYH36202001

main90126-08052i2GRFKS..GGH31202001

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-36011i2ARFXE..AYH36202001

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-31050i2GRFE..GGH31202001

main17168-31090i2GRFKS..GGH31202001

main17168-36010i2ARFXE..AYH36202001

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFE..GGH31202001

main17173-31070i2GRFKS..GGH31202001

main17173-36020i2ARFXE..AYH36202001

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36020i2ARFXE..AYH36202001

main17177-31040i2GRFE..GGH31202001

main17177-31070i2GRFKS..GGH31202001

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-36410i2ARFXE..AYH36202001

*114=TOYOTA/36410/Y

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-36020i2ARFXE..AYH36202001

25628BGASKET, EGR INLET

main25628-36010i2ARFXE..AYH36202001

8404

9017908101

main90179-08101

9017910165

main90179-10165

9167180812

main91671-80812

9167180825

main91671-80825

9167180835

main91671-80835

9167281025

main91672-81025

9211281022

main92112-81022

22 parts on this diagram · 3 diagrams in section
