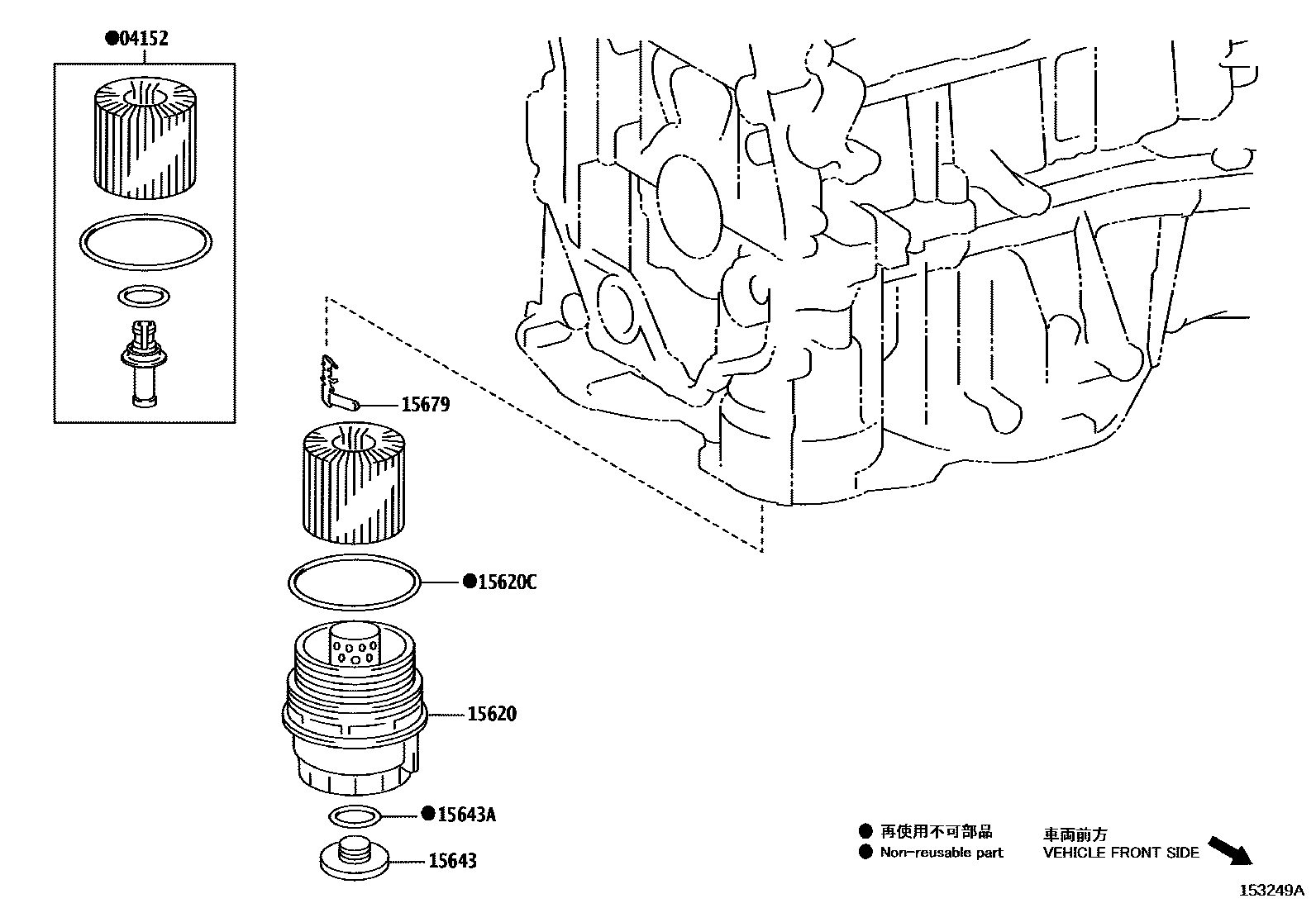

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2ARFXE..AYH36202001

15620CAP ASSY, OIL FILTER

main15620-31060i2ARFXE..AYH36202108

ALUMINUM

main15620-36020i2ARFXE..AYH36202001

PLASTIC

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2ARFXE..AYH36202001

15643PLUG, OIL FILTER DRAIN

main15643-31050i2GR#..GGH31202001

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2GR#..GGH31202001

15679CLIP, OIL FILTER BRACKET

main15679-31050i2GRFKS..GGH31202001

main15679-37011i2ARFXE..AYH36202001

6 parts on this diagram · 3 diagrams in section
