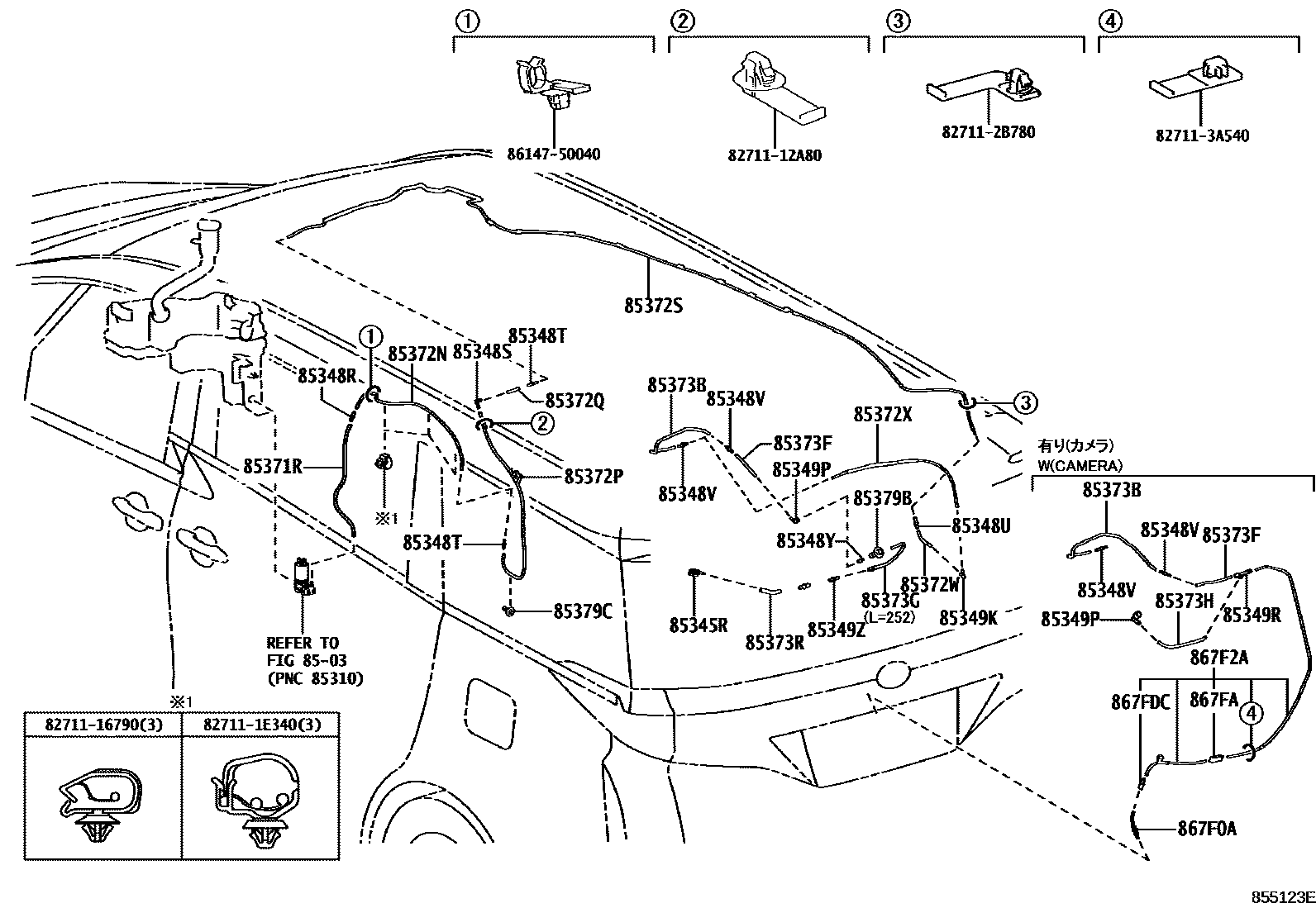

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85348RJOINT, REAR WASHER HOSE, NO.1

main85376-V2070iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85348SJOINT, REAR WASHER ELBOW, NO.1

main85395-16030iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85348TJOINT, REAR WASHER HOSE, NO.2

main85376-V2070×2iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85348UJOINT, REAR WASHER HOSE, NO.3

main85376-V2070iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85348VJOINT, REAR WASHER HOSE, NO.4

main85376-V2070×2iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85348YJOINT, REAR WASHER HOSE, NO.5

main85376-V2050iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85349KJOINT, REAR WASHER ELBOW, NO.2

main85395-16030iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85349PJOINT, REAR WASHER ELBOW, NO.3

main85375-V2070iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85349RJOINT, REAR WASHER HOSE, NO.5

main85375-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85349ZJOINT, REAR WASHER HOSE, NO.6

main85375-V2050iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46210iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=364)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=727); L=1000(*H,L=727),MOON ROOF-FIX TYPE

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=759.5); L=1000(*H,L=759.5),MOON ROOF-FIX TYPE

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=40.5); L=1000(*H,L=40.5),MOON ROOF-FIX TYPE

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90069-46293iAAHH4#,AGH40,TAHA40..L,T; AAHH45,TAHA40..V,Z;AAHH40..(V,Z)..GEN202306

L=5000(*H,L=4190); L=5000(*H,L=4190),MOON ROOF-FIX TYPE

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=77.5); L=1000(*H,L=77.5),MOON ROOF-FIX TYPE

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=601); L=1000(*H,L=601),MOON ROOF-FIX TYPE

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=360); L=1000(*H,L=360),MOON ROOF-FIX TYPE

85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=151); L=1000(*H,L=151),MOON ROOF-FIX TYPE

85373GHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

MOON ROOF-FIX TYPE

85373HHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=75); L=1000(*H,L=75),MOON ROOF-FIX TYPE

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-46296iAAHH4#,AGH40,TAHA40..L,T; AGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

L=1000(*H,L=90); L=1000(*H,L=90),MOON ROOF-FIX TYPE

85379BGROMMET, WASHER, A

main85379-V2050iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-16370iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1

main867F0-30020iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

867F2AHOSE ASSY, CAMERA CLEANER

main867F2-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

867FAFILTER, CLEANER HOSE

main867FA-47050iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

867FDCJOINT, LIDAR CLEANER HOSE, REAR NO.7

main85375-02650iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A80

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B780

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8614750040

main86147-50040

36 parts on this diagram · 1 diagram in section
