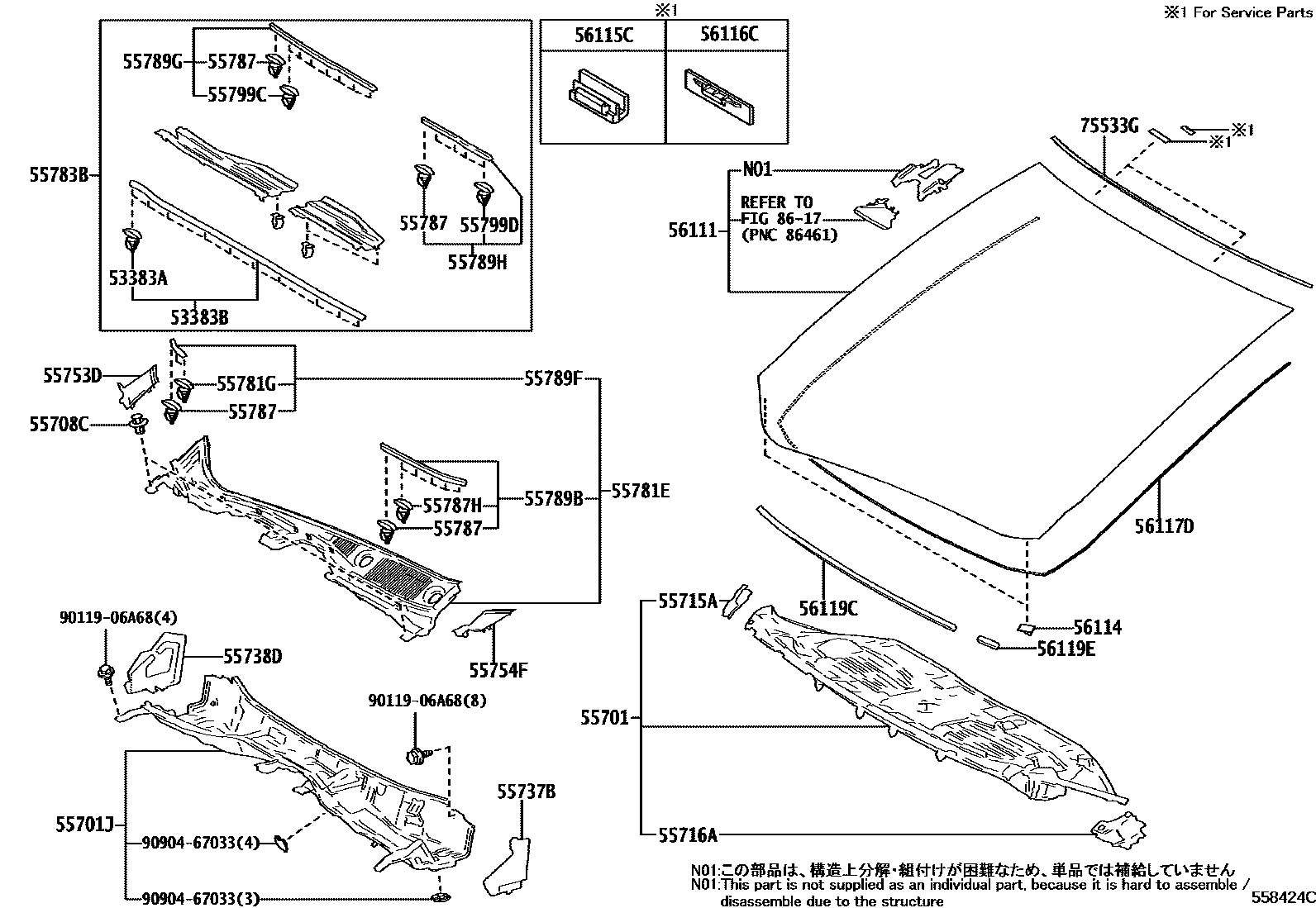

COWL PANEL & WINDSHIELD GLASS
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53383BSEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708CCLIP, COWL TOP VENTILATOR LOUVER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CLIP, COWL VENTILATOR LOUVER, INNER
55787HCLIP, COWL TOP PANEL INSULATOR
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1
55789GPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.3
55789HPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.4
55799CCLIP, COWL TOP VENTILATOR LOUVER
55799DCLIP, COWL TOP VENTILATOR LOUVER, NO.1
56111GLASS, WINDSHIELD
FOR INDIA
56114RETAINER, WINDSHIELD GLASS
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=3601
*D,L=3601,SRI LANKA SPEC
*D,L=3601,ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE
*D,L=3601,HEAD UP DISPLAY-WITH
56119CSEAL, WINDSHIELD GLASS
56119EDAM, WINDOW GLASS ADHESIVE, NO.4
L=78
L=78,ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE
L=78,HEAD UP DISPLAY-WITH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617PRE-COLLISION SYSTEM
9011906A68
main90119-06A68
9090467033
main90904-67033
33 parts on this diagram · 2 diagrams in section
