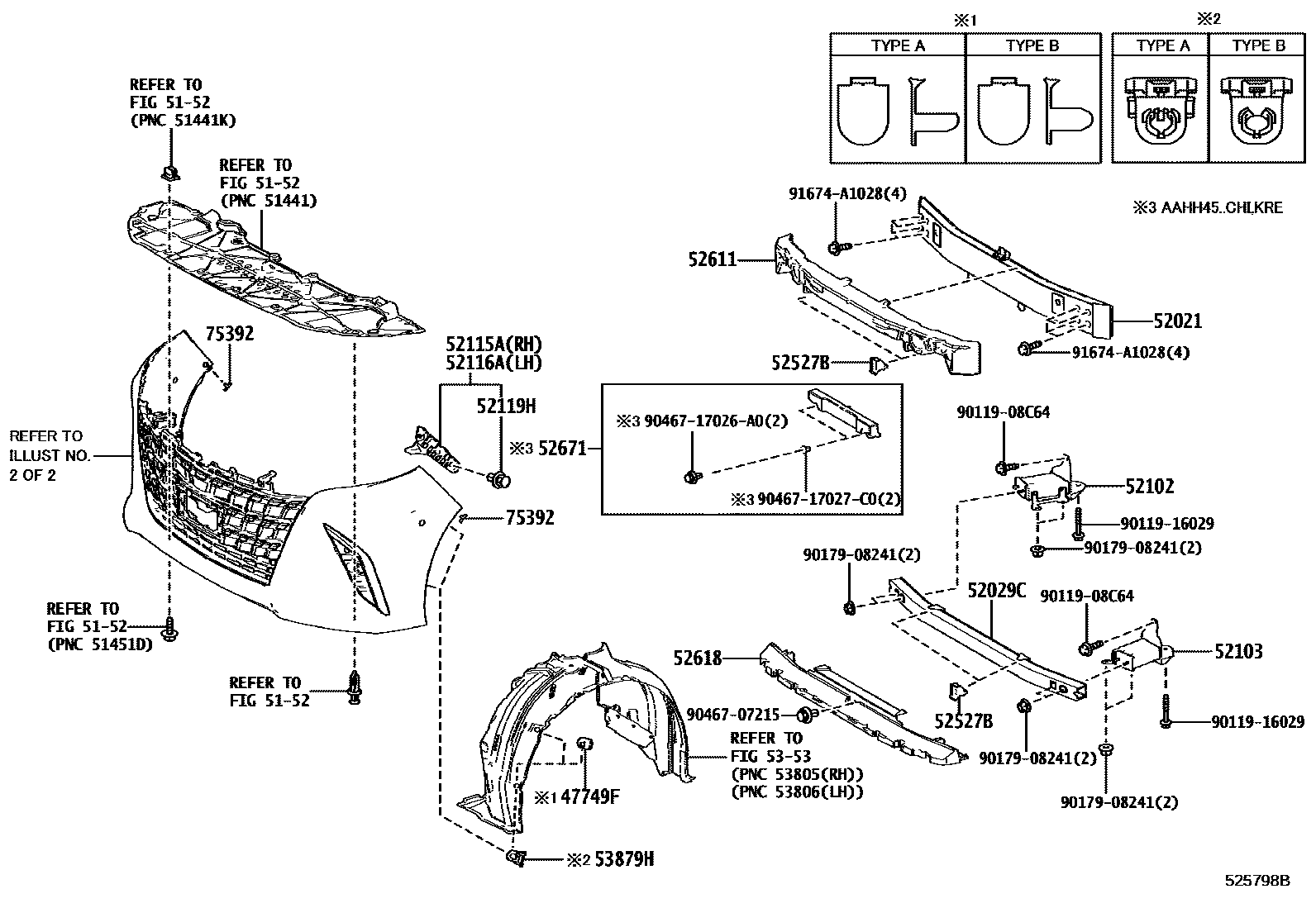

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-30090iAAHH4#,AAHP45,AGH40,TAHA40202306

TYPE A:REFER ILLUST.

main47749-33030iAAHH4#,AAHP45,AGH40,TAHA40202306

TYPE B:REFER ILLUST.

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-V2010iAAHH4#,AGH40,TAHA40..RHD202306

main52021-V2020iAAHH4#,AAHP45,TAHA40..LHD202306

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52102-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52103-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-V2030iAAHH4#,AGH40,TAHA40202306-202410

main52115-V2031iAAHH4#,AAHP45,AGH40,TAHA40202411

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-V2030iAAHH4#,AGH40,TAHA40202306-202410

main52116-V2031iAAHH4#,AAHP45,AGH40,TAHA40202411

52119HCLIP, NO.2

main90467-09237iAAHH4#,AAHP45,AGH40,TAHA40202306

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-V2020iAAHH4#,AAHP45,AGH40,TAHA40202306

52611ABSORBER, FRONT BUMPER ENERGY

main52611-V2011iAAHH4#,AAHP45,AGH40,TAHA40202306

52618ABSORBER, FRONT BUMPER, LOWER

main52618-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

52671EXTENSION, FRONT BUMPER ARM

main52671-V2010iAAHH45..CHI,KRE202306

5353

53879HRETAINER, FRONT FENDER LINER

main53879-30090iAAHH4#,AAHP45,AGH40,TAHA40202306

TYPE A:REFER ILLUST.

main53879-33030iAAHH4#,AAHP45,AGH40,TAHA40202306

TYPE B:REFER ILLUST.

75392RETAINER, OUTSIDE MOULDING

main75392-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

9011908C64

main90119-08C64

9011916029

main90119-16029

9017908241

main90179-08241

9046707215

main90467-07215

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

91674A1028

main91674-A1028

23 parts on this diagram · 4 diagrams in section
