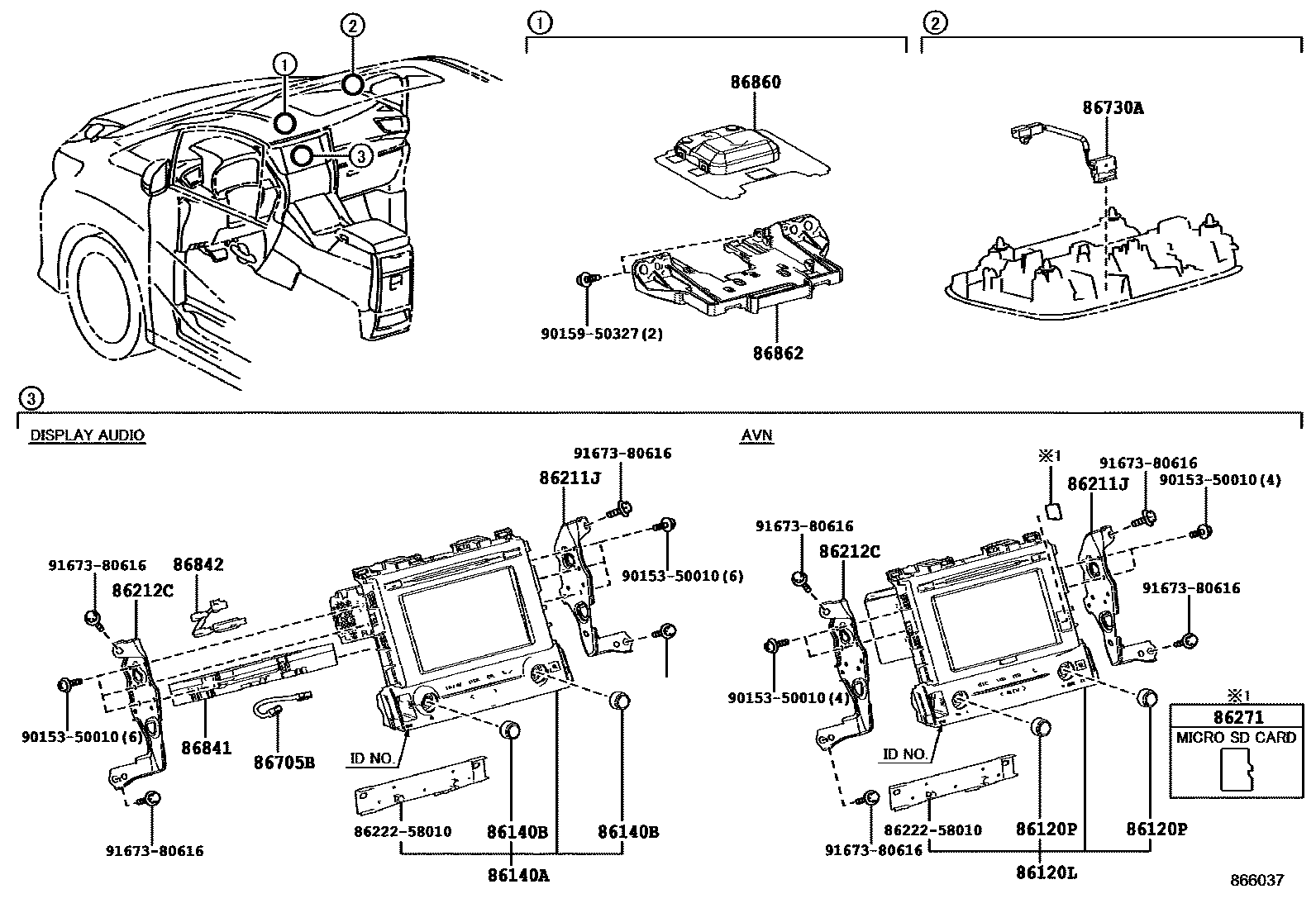

NAVIGATION & FRONT MONITOR DISPLAY
86120LRECEIVER ASSY, NAVIGATION
AISIN AW,ID=B9075; AISIN AW,ID=B9075,AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); AISIN AW,ID=B9075,PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); AISIN AW,ID=B9075,VIETNAM SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
FUJITSU TEN,ID100487; FUJITSU TEN,ID100487,RUSSIA SPEC
PIONEER,ID=P10805; PIONEER,ID=P10805,AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); PIONEER,ID=P10805,PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); PIONEER,ID=P10805,RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER; PIONEER,ID=P10805,RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL; PIONEER,ID=P10805,VIETNAM SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
FUJITSU TEN,ID100487,TAIWAN SPEC
PIONEER,ID=P10806,AUDIO-AVN(8INCH),17SPEKAER,JBL; PIONEER,ID=P10806,INDONESIA SPEC; PIONEER,ID=P10806,INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; PIONEER,ID=P10806,SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; PIONEER,ID=P10806,THAILAND SPEC
PIONEER,ID=P10806,AUDIO-AVN(8INCH),17SPEKAER,JBL; PIONEER,ID=P10806,INDONESIA SPEC; PIONEER,ID=P10806,INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; PIONEER,ID=P10806,MALAYSIA SPEC; PIONEER,ID=P10806,SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; PIONEER,ID=P10806,THAILAND SPEC
86120PKNOB, NAVIGATION RECEIVER SWITCH
PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
86140ARECEIVER ASSY, RADIO & DISPLAY
FUJITSU TEN,ID100488,RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER
FUJITSU TEN,ID100489,RUSSIA SPEC; FUJITSU TEN,ID100489,RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
86211JBRACKET, RADIO RECEIVER, NO.1
AUDIO-AVN(8INCH),17SPEKAER,JBL; INDONESIA SPEC; THAILAND SPEC
86212CBRACKET, RADIO RECEIVER, NO.2
AUDIO-AVN(8INCH),17SPEKAER,JBL; INDONESIA SPEC; THAILAND SPEC
86271DISC, DISC PLAYER
MICRO SD CARD
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),MICRO SD CARD; MICRO SD CARD; PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),MICRO SD CARD; RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER,MICRO SD CARD; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL,MICRO SD CARD; VIETNAM SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),MICRO SD CARD
main86807-11012iAGH30..G; AGH30..L;GGH30..8FC..L; AYH30..Q; GGH30..8FC..V; GGH30..LHD..V202001-202006
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; RUSSIA SPEC; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main86807-11013iAGH30..G; AGH30..L,R;GGH30..8FC..L; AYH30..Q; GGH30..8FC..(V,Z); GGH30..LHD..V202007-202106
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; RUSSIA SPEC; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
main86807-11014iAGH30..G; AGH30..L,R;GGH30..8FC..L; AYH30..Q; GGH30..8FC..(V,Z); GGH30..LHD..V202107-202207
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; RUSSIA SPEC; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
MAP DISC(DOP)-WITH,MICRO SD CARD
MAP DISC(DOP)-WITH,MICRO SD CARD
MAP DISC(DOP)-WITH,MICRO SD CARD
MAP DISC(DOP)-WITH,MICRO SD CARD
TAIWAN SPEC,MICRO SD CARD
TAIWAN SPEC,MICRO SD CARD
TAIWAN SPEC,MICRO SD CARD
TAIWAN SPEC,MICRO SD CARD
AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; INDONESIA SPEC,MICRO SD CARD; SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD
AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; INDONESIA SPEC,MICRO SD CARD; SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD
AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; INDONESIA SPEC,MICRO SD CARD; MALAYSIA SPEC,MICRO SD CARD; PHILIPPINES SPEC,MICRO SD CARD; SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
TAIWAN SPEC
TAIWAN SPEC
TAIWAN SPEC
TAIWAN SPEC
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
MAP DISC(DOP)-WITH
86705BCORD SUB-ASSY, TELEPHONE ANTENNA
RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
86730AMICROPHONE ASSY, TELEPHONE
AUDIO-AVN(8INCH),17SPEKAER,JBL; INDONESIA SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; INDONESIA SPEC&MOON ROOF-WITH(TWIN)&AUDIO-AVN(8INCH),17SPEKAER,JBL; MALAYSIA SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); SINGAPORE SPEC&AUDIO-AVN(8INCH),17SPEKAER,JBL; SINGAPORE SPEC&MOON ROOF-WITH(TWIN)&AUDIO-AVN(8INCH),17SPEKAER,JBL; THAILAND SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
86841COMPUTER, NAVIGATION
main86840-12030iAGH30..G; AGH30..L;GGH30..8FC..L; AYH30..Q; GGH30..8FC..V; GGH30..LHD..V202001-202004
AUDIO-EMV 10.5INCH 17SP JBL,HIGH GRADE; HIGH GRADE; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL,HIGH GRADE; RUSSIA SPEC,HIGH GRADE; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL,HIGH GRADE; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL,HIGH GRADE
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL
main86840-58050iAGH30..G; AGH30..L;GGH30..8FC..L; AYH30..Q; GGH30..LHD..V; GGH30..RHD..8FC..V202001-202007
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; PHILIPPINES SPEC; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL; VIETNAM SPEC
SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-EMV 10.5INCH 17SP JBL; INDONESIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL; SINGAPORE SPEC&AUDIO-EMV 10.5INCH 17SP JBL; THAILAND SPEC&AUDIO-EMV 10.5INCH 17SP JBL
RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
TAIWAN SPEC
TAIWAN SPEC
TAIWAN SPEC
TAIWAN SPEC
RUSSIA SPEC; RUSSIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL
RUSSIA SPEC; RUSSIA SPEC&AUDIO-EMV 10.5INCH 17SP JBL
86842WIRE, NAVIGATION, NO.1
RUSSIA SPEC; RUSSIA SPEC&AUDIO-*DA(8INCH),WITH(*EXB),17SPEKAER,JBL
86860ANTENNA ASSY, NAVIGATION
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); AUDIO-AVN(8INCH),17SPEKAER,JBL; PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER; VIETNAM SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)
86862BRACKET, NAVIGATION ANTENNA
AUDIO-EMV 10.5INCH 17SP JBL
AUDIO-*DA(8INCH),8SPEAKER; AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); AUDIO-AVN(8INCH),17SPEKAER,JBL; INDONESIA SPEC; PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER); RUSSIA SPEC&AUDIO-*DA(8INCH),8SPEAKER; THAILAND SPEC
8622258010FINISH, TAPE PLAYER
main86222-58010
9015350010
main90153-50010
9015950327
main90159-50327
9167380616
main91673-80616
17 parts on this diagram · 4 diagrams in section
