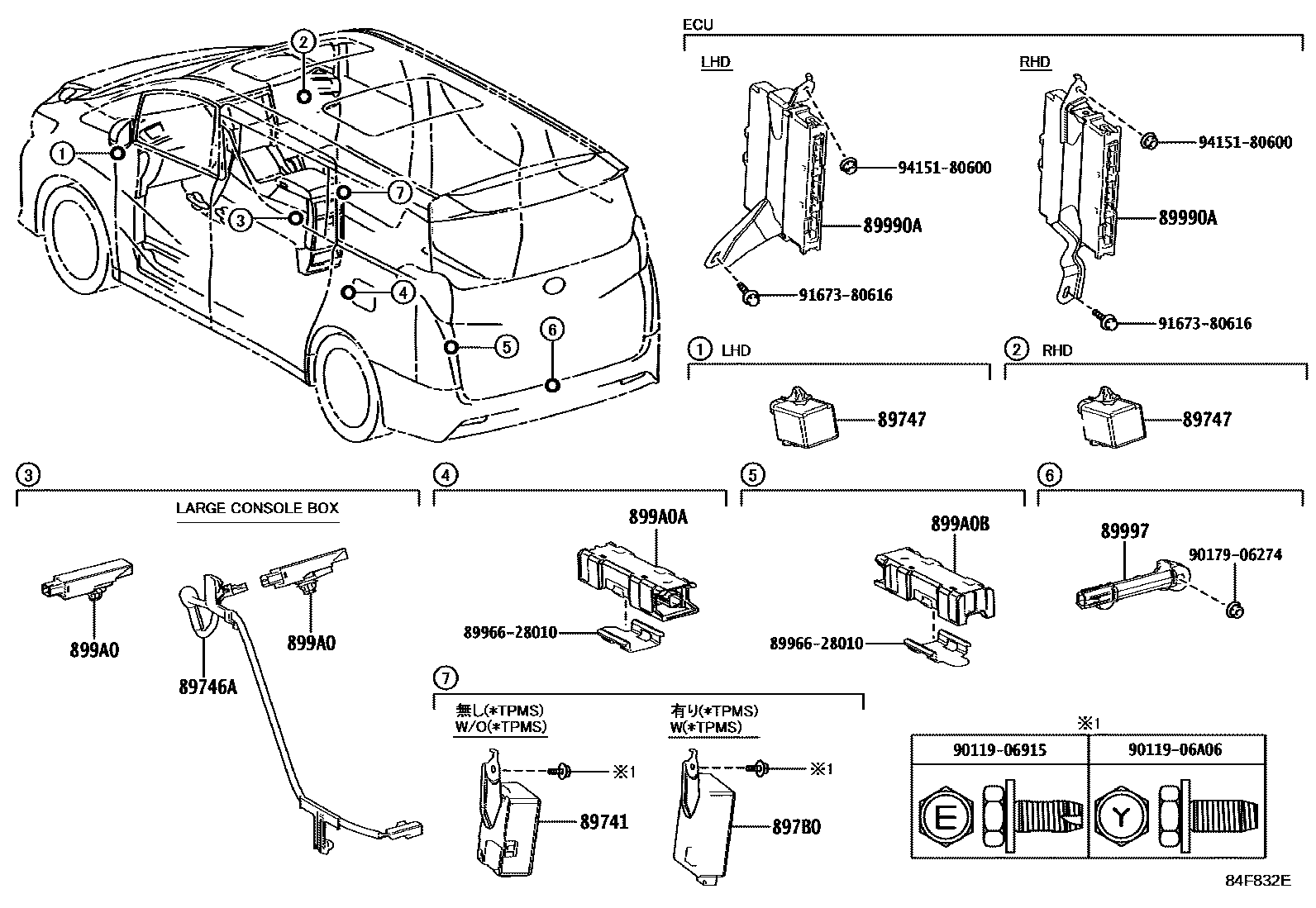

WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
main89740-58090supersedes 89740-58100iAGH30,GGH30..RHD..(G,V); AGH30..G; AGH30..L; AYH30,GGH30..RHD..ALPHD..(Q,V); GGH30..LHD; GGH30..LHD..L201501-201801
INDONESIA SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SINGAPORE SPEC; THAILAND SPEC
89746AHARNESS, ELECTRICAL KEY WIRE
89747BUZZER, WIRELESS DOOR LOCK
897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS
main897B0-58030supersedes 897B0-58050iAGH30..G; AGH30..L,R;GGH30..LHD..L;GGH30..RHD..8FC; AYH30..Q202001
INDONESIA SPEC; THAILAND SPEC
TAIWAN SPEC
RUSSIA SPEC
89990ACOMPUTER ASSY, SMART KEY
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8996628010BRACKET, OSCILLATOR ELECTRICAL KEY
main89966-28010
9011906915
main90119-06915
9011906A06
main90119-06A06
9017906274
main90179-06274
9167380616
main91673-80616
9415180600
main94151-80600
15 parts on this diagram · 1 diagram in section
