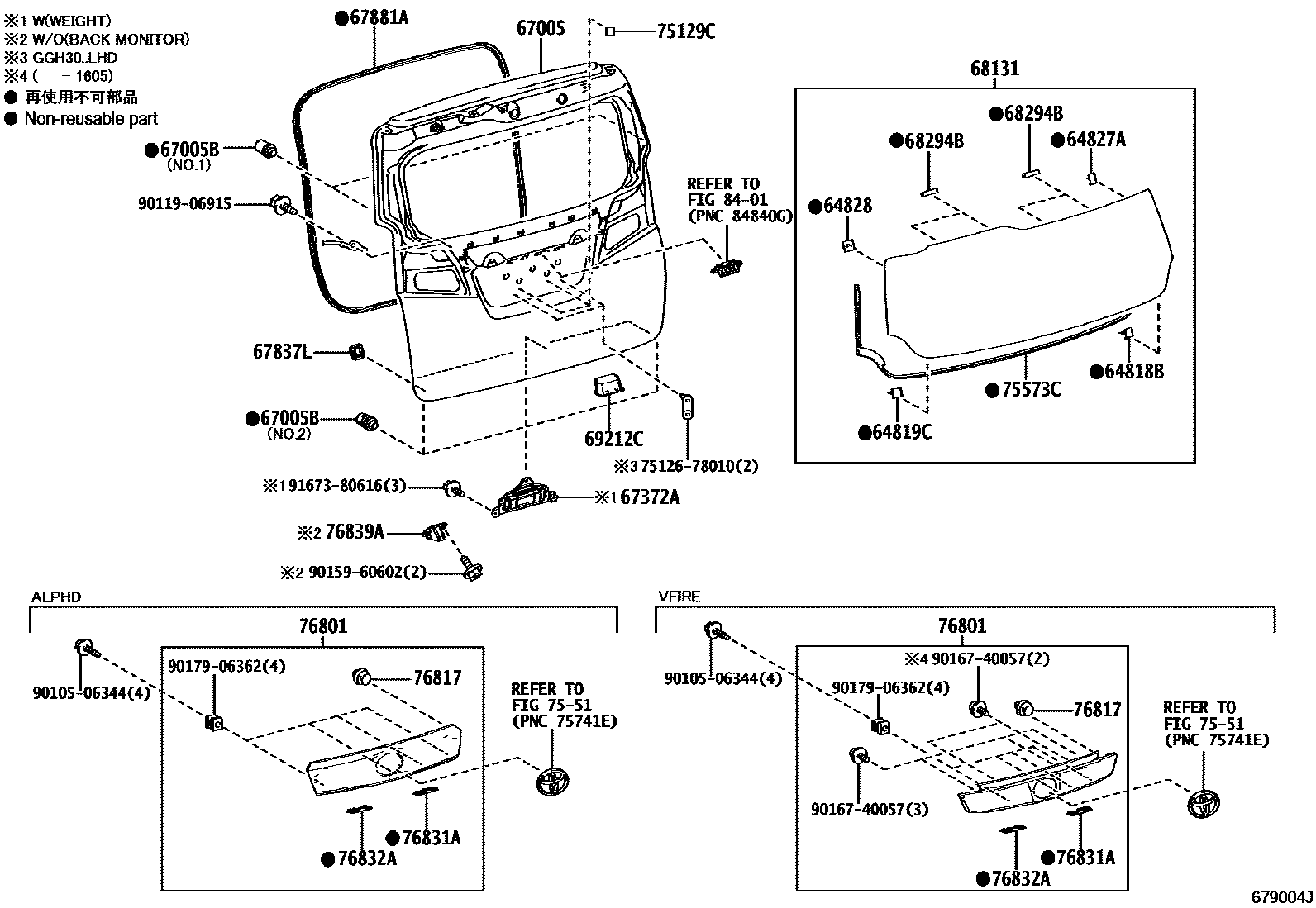

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM 0005 1DOOR TRIM

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-58030iGGH30..RHD..8FC..V201501-202001

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-58030iAGH30,AYH30,GGH30201501-202001

64827ACLIP, BACK WINDOW GLASS, RH

main64827-58030iAGH30,AYH30,GGH30201501-202001

64828CLIP, BACK WINDOW GLASS, LH

main64828-58030iAGH30,AYH30,GGH30201501-202001

67005PANEL SUB-ASSY, BACK DOOR

main67005-58150iAGH30..G201501-201711

sub67005-58200

main67005-58160iAGH30,AYH30,GGH30..RHD..(L,Q,V)201501-201711

RUSSIA SPEC

sub67005-58210

main67005-58160iAGH30,AYH30,GGH30..RHD..(L,Q,V)201501-201711

TAIWAN SPEC

sub67005-58210

main67005-58160iGGH30..LHD..L201501-201711

PHILIPPINES SPEC

sub67005-58210

main67005-58190iGGH30..LHD201505-201711

sub67005-58220

main67005-58200iAGH30..G201712-202001

main67005-58210iGGH30..LHD201712-201801

PHILIPPINES SPEC

main67005-58210iGGH30..LHD201712-201801

RUSSIA SPEC

main67005-58210iAGH30,AYH30,GGH30..RHD..(L,Q,R,S,V)201801-202001

main67005-58210iAGH30,AYH30,GGH30..RHD..(L,Q,V)201712-201801

TAIWAN SPEC

main67005-58220iGGH30..LHD201712-202001

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09148iAGH30,AYH30;GGH30..L,R,V201501-202001

NO.2

main90541-10034iAGH30,AYH30,GGH30201501-202001

NO.1

67372AWEIGHT, BACK DOOR

main67372-58030iAGH30201501-201801

67837LSEAL, DOOR DUST PROOF

main67837-58010iAGH30,AYH30,GGH30201501-202001

67881AWEATHERSTRIP, BACK DOOR

main67881-58040iAGH30,AYH30;GGH30..L,R,V201501-202001

68131GLASS, BACK DOOR

main68105-58110iGGH30..LHD;AGH30..VFIRE201501-201801

THAILAND SPEC

main68105-58110iGGH30..LHD201801-201905

main68105-58120iGGH30..LHD..V201501-201801

SINGAPORE SPEC

main68105-58120iGGH30..RHD;AGH30,AYH30..ALPHD201501-201801

INDONESIA SPEC

main68105-58120iGGH30..RHD;AGH30,AYH30..ALPHD201501-201801

TAIWAN SPEC

main68105-58120iAYH30..RHD..V;GGH30..LHD..V201905-202105

main68105-58130iAYH30..Q201801-202001

THAILAND SPEC

main68105-58130iGGH30..LHD..L201905-202001

main68105-58140iAGH30..VFIRE..L201801-202001

INDONESIA SPEC

main68105-58140iAGH30..VFIRE..L201801-202001

SINGAPORE SPEC

main68105-58140iAGH30..VFIRE..L201801-202001

MALAYSIA SPEC

main68105-58140iGGH30..RHD..V201801-201907

main68105-58150iGGH30..RHD..8FC..V201908-201912

main68105-58160iAYH30..L201905-202001

main68105-58170iAYH30..LHD..V201905-202001

main68105-58210iAYH30..Q202001

THAILAND SPEC

main68105-58220iAGH30..VFIRE..L;GGH30..RHD..8FC..V202001

SINGAPORE SPEC

main68105-58220iAGH30..R,S;GGH30..6FC;GGH30..RHD..8FC..(L,Z);AGH30,AYH30..RHD..ALPHD202001

INDONESIA SPEC

main68105-58220iAGH30..R,S;GGH30..6FC;GGH30..RHD..8FC..(L,Z);AGH30,AYH30..RHD..ALPHD202001

MALAYSIA SPEC

main68105-58230iGGH30..LHD..V202001

main68105-58240iAYH30..L202001

main68105-58250iAYH30..LHD..(V,Z)202001

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030iGGH30..6FC;AGH30,AYH30;GGH30..LHD..V;GGH30..8FC..(L,Q)201501-202001

69212CHANDLE, BACK DOOR INSIDE

main74811-28020-C0iGGH30..V201501-202001

BLACK,TRIM2#

main74811-28020-C0iGGH30..V201501-202001

BLACK,TRIM0#,2#

main74811-28020-C0iGGH30..V201501-202001

BLACK,TRIM0#

75129CCUSHION, REAR LICENCE PLATE

main75129-28020iAGH30,AYH30;GGH30..L,R,V201501-202001

7551

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-58020iGGH30..6FC;AGH30,AYH30;GGH30..LHD..V;GGH30..8FC..(L,Q)201501-202001

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-58140iAYH30..ALPHD..Z202209

PLATED

main76801-58160iAGH30,AYH30,GGH30..ALPHD201501-201801

PLATED

main76801-58180iAGH30,GGH30..VFIRE201501-201801

PLATED

main76801-58190iAYH30..LHD..VFIRE202209

PLATED

main76801-58220iAGH30,AYH30,GGH30..ALPHD201801-202209

PLATED

main76801-58250iGGH30..Q201801-202209

PLATED

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iAGH30,AYH30,GGH30201501-201801

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-58050iAGH30,AYH30,GGH30201501-201801

main76831-58060iGGH30..Q201801-202001

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-58050iAGH30,AYH30,GGH30201501-201801

main76832-58060iGGH30..Q201801-202001

76839ACOVER, BACK DOOR GARNISH

main76839-58050iAGH30,AYH30,GGH30..RHD201501-201801

TAIWAN SPEC

main76839-58050iAGH30,AYH30,GGH30..RHD201501-201801

PHILIPPINES SPEC

main76839-58050iAGH30,AYH30,GGH30..RHD201501-201801

RUSSIA SPEC

main76839-58050iGGH30..Q201801-202001

8401

7512678010STAY, REAR LICENSE PLATE BRACKET, LOWER

main75126-78010

9010506344

main90105-06344

9011906915

main90119-06915

9015960602

main90159-60602

9016740057

main90167-40057

9017906362

main90179-06362

9167380616

main91673-80616

28 parts on this diagram · 5 diagrams in section
