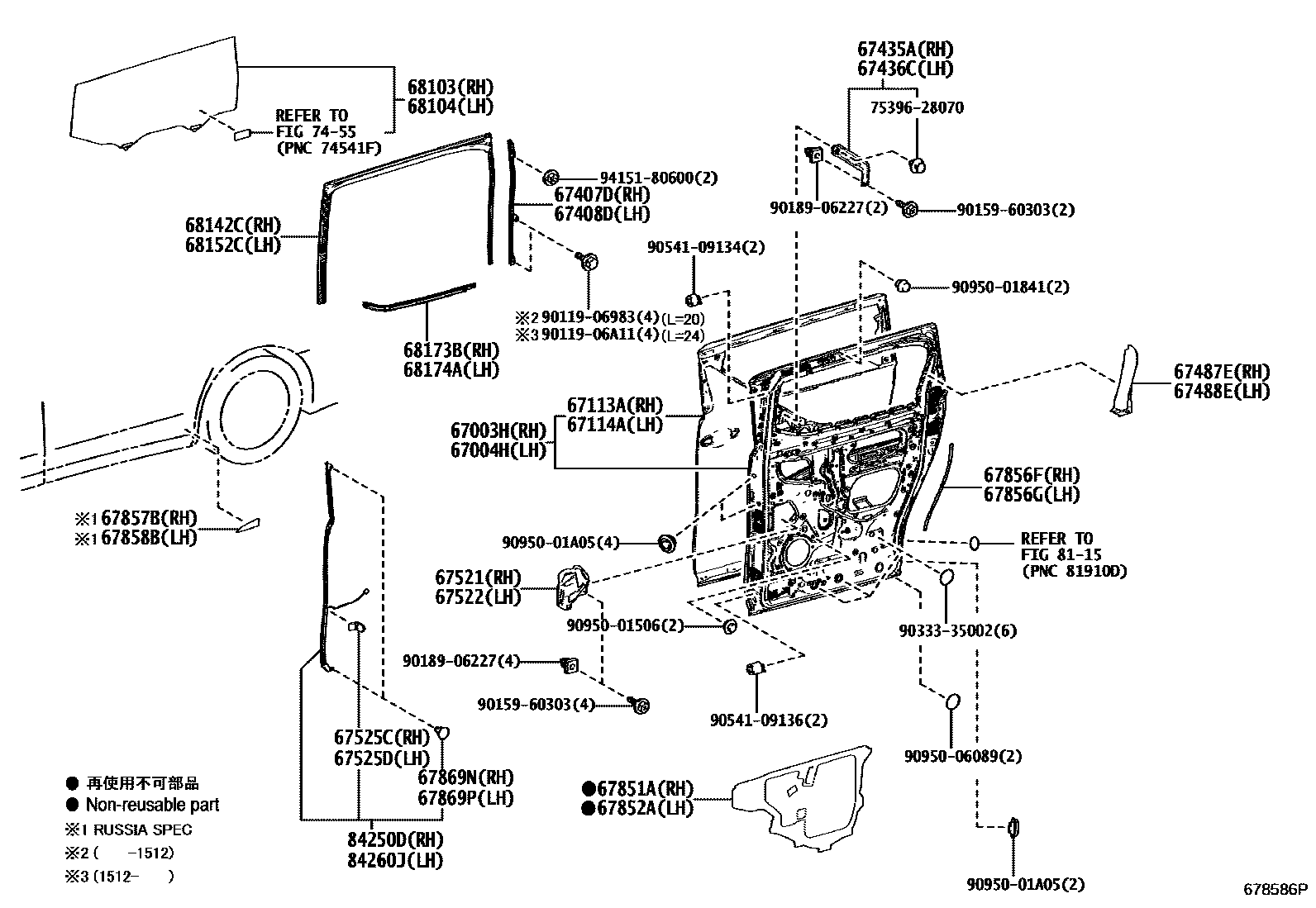

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM 0004 1DOOR TRIM

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-58110iAGH30,AYH30,GGH30201501-202001

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-58080iGGH30..Q201501-202001

67113APANEL, SLIDE DOOR, OUTER RH

main67113-58050iAGH30,AYH30,GGH30201501-202001

67114APANEL, SLIDE DOOR, OUTER LH

main67114-58050iAGH30,AYH30,GGH30201501-202001

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-58030iAGH30,AYH30;GGH30..L,R,V201501-202001

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-58030iAGH30,AYH30;GGH30..L,R,V201501-202001

67435AGUIDE, REAR DOOR WINDOW, FRONT RH

main67435-58030iAGH30,AYH30;GGH30..L,R,V201501-202001

67436CGUIDE, REAR DOOR WINDOW, FRONT LH

main67436-58030iAGH30,AYH30;GGH30..L,R,V201501-202001

67487EGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main62583-58010iGGH30..Q201801-202001

sub62583-58020

main62583-58020iAGH30,AYH30,GGH30202001

main67487-58030iAGH30,AYH30,GGH30201501-201801

67488EGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main62584-58010iAGH30,AYH30;GGH30..L,R,V201801-202001

sub62584-58020

main62584-58020iAGH30,AYH30,GGH30202001

main67488-58030iAGH30,AYH30,GGH30201501-201801

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-58020iAGH30,AYH30,GGH30201501-202001

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-58020iGGH30..Q201501-202001

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-58010iGGH30..Q201501-202001

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-58020iAGH30,AYH30,GGH30201501-202001

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-58040iAGH30,AYH30,GGH30201501-202001

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-58040iGGH30..Q201501-202001

67856FWEATHERSTRIP, CENTER DOOR, REAR RH

main67856-58020iGGH30..Q201501-202001

67856GWEATHERSTRIP, CENTER DOOR, REAR LH

main67856-58020iAGH30,AYH30,GGH30201501-202001

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main67869-28020iAGH30,AYH30,GGH30201501-202001

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main67869-28020iAGH30,AYH30,GGH30201501-202001

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-58110iGGH30..LHD..V201801-201905

main68103-58110iAYH30..Q201501-202001

THAILAND SPEC

main68103-58120iGGH30..RHD..V201801-201907

main68103-58120iGGH30..RHD;AGH30,AYH30..ALPHD201501-202001

INDONESIA SPEC

main68103-58120iGGH30..RHD;AGH30,AYH30..ALPHD201501-202001

SINGAPORE SPEC

main68103-58120iGGH30..RHD;AGH30,AYH30..ALPHD201501-201801

TAIWAN SPEC

main68103-58120iAGH30..S;GGH30..RHD..(L,Q,R);AGH30,AYH30..RHD..ALPHD201801-202001

MALAYSIA SPEC

main68103-58131iGGH30..LHD..V201905-202001

PHILIPPINES SPEC

main68103-58131iGGH30..LHD..V201905-202001

VIETNAM SPEC

main68103-58131iGGH30..LHD..V201905-202001

RUSSIA SPEC

main68103-58131iGGH30..RHD..8FC..V201908-201912

main68103-58140iGGH30..RHD..8FC..V202001

MALAYSIA SPEC

main68103-58140iGGH30..Z;GGH30..6FC..V;AYH30..RHD..V202001

INDONESIA SPEC

main68103-58140iGGH30..LHD..V201905-202105

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-58090iGGH30..LHD;AGH30..VFIRE201501-202001

THAILAND SPEC

main68104-58090iGGH30..LHD..V201801-201905

main68104-58100iAGH30..VFIRE201501-201801

TAIWAN SPEC

main68104-58100iAGH30..VFIRE201501-202001

INDONESIA SPEC

main68104-58100iAGH30..VFIRE201501-202001

SINGAPORE SPEC

main68104-58100iAGH30..R,S;GGH30..RHD..(L,R);AGH30,AYH30..RHD..ALPHD201801-202001

MALAYSIA SPEC

main68104-58100iGGH30..RHD..V201801-201907

main68104-58111iGGH30..LHD..V201908-201912

main68104-58111iAYH30..LHD..V201905-202001

PHILIPPINES SPEC

main68104-58111iAYH30..LHD..V201905-202001

RUSSIA SPEC

main68104-58111iAYH30..LHD..V201905-202001

VIETNAM SPEC

main68104-58120iGGH30..LHD..V201905-202105

main68104-58120iGGH30..Z;GGH30..6FC..V;AYH30..RHD..V202001

INDONESIA SPEC

main68104-58120iGGH30..Z;GGH30..6FC..V;AYH30..RHD..V202001

MALAYSIA SPEC

68142CRUN, REAR DOOR GLASS, RH

main68142-58040iAGH30,AYH30,GGH30201501-201801

sub68142-58050

main68142-58050iGGH30..Q201801-202001

68152CRUN, REAR DOOR GLASS, LH

main68152-58040iAGH30,AYH30,GGH30201501-201801

sub68152-58050

main68152-58050iGGH30..Q201801-202001

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-58030iAGH30,AYH30,GGH30201501-201801

main68173-58040iGGH30..Q201801-202001

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-58030iAGH30,AYH30,GGH30201501-201801

main68174-58040iGGH30..Q201801-202001

7455

8115

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-58220iAGH30,AYH30,GGH30201501-201712

main84250-58221iAGH30,AYH30;GGH30..L,R,V201712-202001

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-58040iAGH30,AYH30,GGH30201501-201712

main84260-58041iAGH30,AYH30,GGH30201712-202001

7539628070CLIP, OUTSIDE MOULDING, NO.2

main75396-28070

9011906983

main90119-06983

9011906A11

main90119-06A11

9015960303

main90159-60303

9018906227

main90189-06227

9033335002

main90333-35002

9054109134

main90541-09134

9054109136

main90541-09136

9095001506

main90950-01506

9095001841

main90950-01841

9095001A05

main90950-01A05

9095006089

main90950-06089

9415180600

main94151-80600

45 parts on this diagram · 4 diagrams in section
