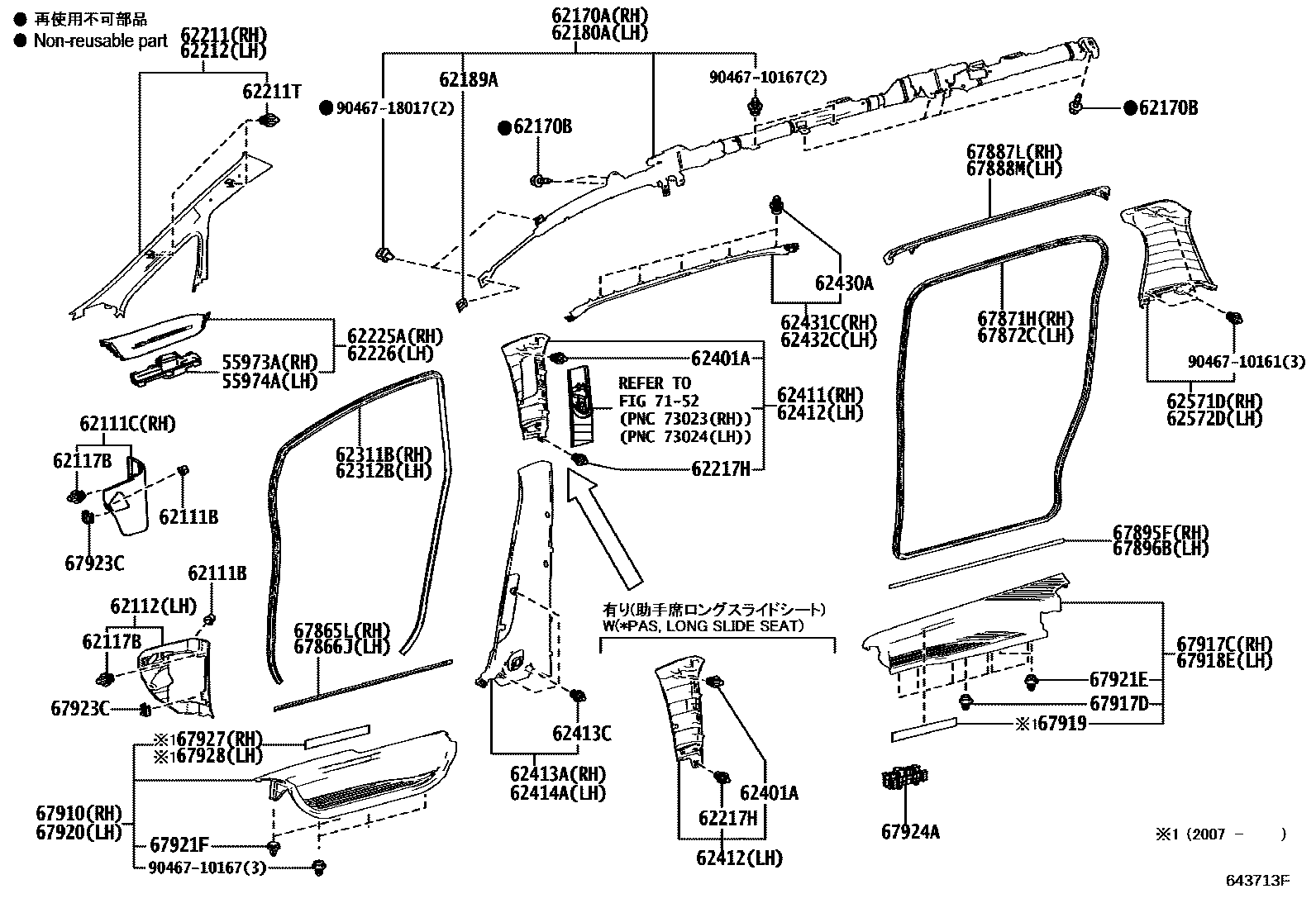

INSIDE TRIM BOARD

0001 1 0002 1RH 0003 1LH 0004 1LH

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-58020iGGH30..Q201501-202001

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-58020iGGH30..Q201501-202001

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iAGH30,AYH30,GGH30201501-202001

62111CBOARD, COWL SIDE TRIM, RH

main62111-58070-C0iGGH30..V201501-202001

BLACK,TRIM0#

main62111-58070-C0iAGH30,GGH30..VFIRE201501-202001

BLACK,TRIM0#,2#

main62111-58070-C0iAGH30,GGH30..VFIRE201501-202001

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-58100-C0iAGH30,GGH30..VFIRE201501-202001

BLACK,TRIM0#

main62112-58100-C0iGGH30..V201501-202001

BLACK,TRIM0#,2#

main62112-58100-C0iGGH30..V201501-202001

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iGGH30..Q201501-202001

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-58030iGGH30..Q201501-202001

62170BBOLT, W/WASHER

main90119-06869iGGH30..Q201501-202001

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-58030iAGH30,AYH30;GGH30..L,R,V201501-202001

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iGGH30..Q201501-202001

62211GARNISH, FRONT PILLAR, RH

main62211-58070-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main62211-58080-A2iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V,Z)201501-202001

FLAXEN,TRIM0#

main62211-58080-B2iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

main62211-58080-C2iGGH30..V201501-202001

CHARCOAL,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iAGH30,AYH30,GGH30201501-202001

62212GARNISH, FRONT PILLAR, LH

main62212-58070-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main62212-58080-A2iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201501-202001

FLAXEN,TRIM0#

main62212-58080-B2iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

main62212-58080-C2iAYH30,GGH30..V201501-202001

CHARCOAL,TRIM2#

62217HCLIP, CENTER PILLER GARNISH

main90467-10161iAGH30,AYH30,GGH30201501-202001

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-58050-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

BLACK,TRIM0#

main62225-58050-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

BLACK,TRIM2#

main62225-58050-C0iGGH30..8FC..L;AGH30,AYH30..ALPHD..(G,L,Q)201501-202001

BLACK,TRIM0#,2#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-58050-C0iAGH30,AYH30,GGH30..ALPHD..(G,L,Q)201501-202001

BLACK,TRIM0#,2#

main62226-58050-C0iGGH30..V201501-202001

BLACK,TRIM2#

main62226-58050-C0iGGH30..V201501-202001

BLACK,TRIM0#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-58030iAGH30,AYH30;GGH30..L,R,V201501-202001

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-58030iGGH30..Q201501-202001

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10188iAGH30,AYH30,GGH30201501-202001

62411GARNISH, CENTER PILLAR, RH

main62410-58050-A0iAGH30..G201501-201510

FLAXEN,TRIM0#

sub62410-58051

main62410-58051-A0iAGH30..G201511-202001

FLAXEN,TRIM0#

sub62410-58051

main62410-58060-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q,V)201501-201510

FLAXEN,TRIM0#

sub62410-58061

main62410-58060-B1iGGH30..Q201501-201511

LT.GRAY,TRIM2#

sub62410-58061

main62410-58060-C1iGGH30..V201501-201510

BLACK,TRIM2#

sub62410-58061

main62410-58061-A1iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201511-202001

FLAXEN,TRIM0#

sub62410-58061

main62410-58061-B1iAGH30..VFIRE201511-202001

LT.GRAY,TRIM2#

sub62410-58061

main62410-58061-C1iGGH30..V201511-201709

BLACK,TRIM2#

sub62410-58061

main62410-58061-C3iAYH30,GGH30..V,Z201709-202001

BLACK,TRIM2#

sub62410-58061

62412GARNISH, CENTER PILLAR, LH

main62420-58050-A0iAGH30..G201501-201510

FLAXEN,TRIM0#

sub62420-58051

main62420-58051-A0iAGH30..G201511-202001

FLAXEN,TRIM0#

main62420-58060-A1iAGH30,AYH30,GGH30..ALPHD..(L,Q,V)201501-201510

FLAXEN,TRIM0#

sub62420-58061

main62420-58060-B1iAGH30..VFIRE201501-201510

LT.GRAY,TRIM2#

sub62420-58061

main62420-58060-C1iGGH30..V201501-201510

BLACK,TRIM2#

sub62420-58061

main62420-58061-A1iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201511-202001

FLAXEN,TRIM0#

sub62420-58061

main62420-58061-B1iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201511-202001

LT.GRAY,TRIM2#

sub62420-58061

main62420-58061-C1iGGH30..V201511-201709

BLACK,TRIM2#

sub62420-58061

main62420-58061-C2iAYH30,GGH30..V,Z201709-202001

BLACK,TRIM2#

sub62420-58061

main62420-58080-B1iGGH30..Q201501-201801

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-58030-C0iAGH30,AYH30,GGH30..ALPHD..(G,L,Q)201501-202001

BLACK,TRIM0#

main62413-58030-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

BLACK,TRIM0#,2#

main62413-58030-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAGH30,AYH30,GGH30201501-202001

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-58030-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

BLACK,TRIM0#

main62414-58030-C0iAGH30..VFIRE201501-202001

BLACK,TRIM2#

main62414-58030-C0iAGH30..VFIRE201501-202001

BLACK,TRIM0#,2#

main62414-58040-C0iGGH30..Q201501-201801

BLACK,TRIM2#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-10167iGGH30..Q201501-202001

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62430-58020-A1iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD201501-202001

FLAXEN,TRIM0#

main62430-58020-B1iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

main62430-58020-C1iGGH30..V201501-201801

BLACK,TRIM2#

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62440-58020-A1iAGH30,AYH30,GGH30..ALPHD201501-202001

FLAXEN,TRIM0#

main62440-58020-B1iGGH30..Q201501-202001

LT.GRAY,TRIM2#

main62440-58020-C1iAYH30,GGH30..V,Z201501-201801

BLACK,TRIM2#

62571DGARNISH, QUARTER LOCK PILLAR, RH

main62550-58100-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main62550-58120-A2iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201501-202001

FLAXEN,TRIM0#

main62550-58120-B2iAGH30,GGH30..VFIRE201501-202001

LT.GRAY,TRIM2#

main62550-58120-C2iAYH30,GGH30..V,Z201501-202001

BLACK,TRIM2#

62572DGARNISH, QUARTER LOCK PILLAR, LH

main62560-58100-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main62560-58120-A2iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201501-202001

FLAXEN,TRIM0#

main62560-58120-B2iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

main62560-58120-C2iAYH30,GGH30..V201501-202001

BLACK,TRIM2#

67865LWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-58100iAGH30,AYH30,GGH30201501-202001

67866JWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-58080iGGH30..Q201501-202001

67871HWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-58050iAGH30,AYH30,GGH30201501-202001

67872CWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-58050iAGH30,AYH30,GGH30201501-202001

67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-58030iAGH30,AYH30,GGH30201501-202001

67888MWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-58030iAGH30,AYH30,GGH30201501-202001

67895FWEATHERSTRIP, SLIDE DOOR, NO.3 RH

main67895-58010iGGH30..LHD..V201501-201801

PHILIPPINES SPEC

main67895-58010iGGH30..LHD..L201501-201801

TAIWAN SPEC

main67895-58010iGGH30..Q201801-202001

main67895-58020iAYH30..LHD201501-202001

main67895-58020iAYH30..LHD202001

RUSSIA SPEC

67896BWEATHERSTRIP, SLIDE DOOR, NO.3 LH

main67896-58010iGGH30..LHD..V201501-201801

PHILIPPINES SPEC

main67896-58010iAGH30,AYH30,GGH30..RHD201501-201801

TAIWAN SPEC

main67896-58010iGGH30..Q201801-202001

main67896-58020iGGH30..LHD201501-202001

main67896-58020iAYH30..LHD202001

RUSSIA SPEC

67910PLATE ASSY, DOOR SCUFF, RH

main67910-58130-C0iAGH30..G201501-201801

BLACK,TRIM0#

sub67910-58210

main67910-58180-C1iGGH30..RHD..V201501-201801

BLACK,TRIM0#,2#

sub67910-58230

main67910-58180-C1iGGH30..RHD..V201501-201801

BLACK,TRIM0#

sub67910-58230

main67910-58190-C1iAGH30,GGH30..VFIRE201501-201801

BLACK,TRIM2#

sub67910-58240

main67910-58200-C1iGGH30..LHD..L201501-201801

BLACK,TRIM0#,2#

sub67910-58250

main67910-58200-C1iGGH30..LHD..V201501-201801

BLACK,TRIM0#

sub67910-58250

main67910-58210-C0iAGH30..G201801-202001

BLACK,TRIM0#

sub67910-58340

main67910-58230-C0iGGH30..RHD..V201801-202001

BLACK,TRIM0#,2#

sub67910-58360

main67910-58230-C0iGGH30..RHD..V201801-202001

BLACK,TRIM0#

sub67910-58360

main67910-58240-C0iAGH30,GGH30..VFIRE..(L,R,S)201801-202001

BLACK,TRIM2#

sub67910-58370

main67910-58240-C0iAYH30..RHD..V201907-202001

BLACK,TRIM0#,2#

sub67910-58370

main67910-58250-C0iAYH30,GGH30..LHD..ALPHD..L201801-202001

BLACK,TRIM0#

sub67910-58380

main67910-58250-C0iAYH30,GGH30..LHD..ALPHD..L201801-202001

BLACK,TRIM0#,2#

sub67910-58380

main67910-58280-C0iAYH30..VFIRE..L201905-202001

BLACK,TRIM0#,2#

sub67910-58390

main67910-58280-C0iAYH30..LHD..VFIRE..V201905-202001

BLACK,TRIM2#

sub67910-58390

main67910-58340-C0iAGH30..G202001-202004

BLACK,TRIM0#

sub67910-V2020

main67910-58360-C0iGGH30..RHD..V202001-202004

BLACK,TRIM0#,2#

sub67910-V2040

main67910-58360-C0iGGH30..RHD..V202001-202004

BLACK,TRIM0#

sub67910-V2040

main67910-58370-C0iAYH30..RHD..V202001-202004

BLACK,TRIM0#,2#

sub67910-V2050

main67910-58370-C0iAYH30..RHD..V202001-202004

BLACK,TRIM2#

sub67910-V2050

main67910-58380-C0iAYH30,GGH30..LHD..ALPHD..L202001-202004

BLACK,TRIM0#

sub67910-V2060

main67910-58380-C0iAYH30,GGH30..LHD..ALPHD..L202001-202004

BLACK,TRIM0#,2#

sub67910-V2060

main67910-58390-C0iAYH30..VFIRE..L202001-202005

BLACK,TRIM2#

sub67910-V2090

main67910-58390-C0iAYH30..VFIRE..L202001-202005

BLACK,TRIM0#,2#

sub67910-V2090

main67910-V2010-C0iAYH30..VFIRE..L202105

BLACK,TRIM2#

sub67911-V2010

sub67927-V2010

main67910-V2010-C0iAYH30..LHD..VFIRE..(V,Z)202105

BLACK,TRIM0#,2#

sub67911-V2010

sub67927-V2010

main67910-V2020-C0iAGH30..G202005

BLACK,TRIM0#

main67910-V2040-C0iGGH30..RHD..8FC..L;AGH30,AYH30..RHD..ALPHD..(L,Q)202005

BLACK,TRIM0#

main67910-V2040-C0iGGH30..RHD..8FC..L;AGH30,AYH30..RHD..ALPHD..(L,Q)202005

BLACK,TRIM0#,2#

main67910-V2050-C0iAYH30..RHD..V202005

BLACK,TRIM0#,2#

main67910-V2050-C0iAYH30..RHD..V202005

BLACK,TRIM2#

main67910-V2060-C0iAYH30,GGH30..LHD..ALPHD..L202005

BLACK,TRIM0#

sub67911-V2010

sub67927-58110

main67910-V2060-C0iAYH30,GGH30..LHD..ALPHD..L202005

BLACK,TRIM0#,2#

sub67911-V2010

sub67927-58110

main67910-V2090-C0iAYH30..VFIRE..L202005-202105

TRIM0#,2#

sub67911-V2010

sub67927-58120

main67910-V2090-C0iAYH30..VFIRE..L202005-202105

TRIM2#

sub67911-V2010

sub67927-58120

67917CPLATE, REAR DOOR SCUFF, RH

main67915-58010-C0iAGH30..G202001-202005

BLACK,TRIM0#

sub67930-V2020

main67930-58010-C0iAGH30..G201501-202001

BLACK,TRIM0#

sub67915-58010

main67930-58030-C1iAYH30,GGH30..ALPHD..V201501-202001

BLACK,TRIM0#

sub67930-58080

main67930-58030-C1iAYH30,GGH30..ALPHD..V201501-202001

BLACK,TRIM0#,2#

sub67930-58080

main67930-58040-C1iGGH30..Q201501-202001

BLACK,TRIM2#

sub67930-58090

main67930-58040-C1iAYH30..VFIRE..V201905-202001

BLACK,TRIM0#,2#

sub67930-58090

main67930-58080-C0iAYH30,GGH30..ALPHD..V202001-202004

BLACK,TRIM0#

sub67930-V2040

main67930-58080-C0iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001-202004

BLACK,TRIM0#,2#

sub67930-V2040

main67930-58090-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)202001-202004

BLACK,TRIM0#,2#

sub67930-V2050

main67930-58090-C0iAYH30..VFIRE..V202001-202004

BLACK,TRIM2#

sub67930-V2050

main67930-V2010-C0iAYH30..LHD..VFIRE..(V,Z)202105

BLACK,TRIM0#,2#

sub67915-V2010

sub67927-V2010

main67930-V2010-C0iAYH30..LHD..VFIRE..(V,Z)202105

BLACK,TRIM2#

sub67915-V2010

sub67927-V2010

main67930-V2020-C0iAGH30..G202005

BLACK,TRIM0#

main67930-V2040-C0iGGH30..8FC..L;AGH30,AYH30..ALPHD..(L,Q)202005

BLACK,TRIM0#

main67930-V2040-C0iGGH30..8FC..L;AGH30,AYH30..ALPHD..(L,Q)202005

BLACK,TRIM0#,2#

main67930-V2050-C0iAYH30..RHD..V202005-202105

BLACK,TRIM2#

main67930-V2050-C0iAYH30..VFIRE..L202005-202105

BLACK,TRIM0#,2#

67917DCLIP, REAR DOOR SCUFF PLATE

main62217-13010iAGH30,AYH30;GGH30..L,R,V201501-202001

67918EPLATE, REAR DOOR SCUFF, LH

main67916-58010-C0iAGH30..G202001-202005

BLACK,TRIM0#

sub67940-V2020

main67940-58010-C0iAGH30..G201501-202001

BLACK,TRIM0#

sub67916-58010

main67940-58030-C1iAGH30,AYH30,GGH30..ALPHD..(L,Q)201501-202001

BLACK,TRIM0#

sub67940-58080

main67940-58030-C1iGGH30..V201501-202001

BLACK,TRIM0#,2#

sub67940-58080

main67940-58040-C1iAYH30..VFIRE..V201905-202001

BLACK,TRIM0#,2#

sub67940-58090

main67940-58040-C1iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

BLACK,TRIM2#

sub67940-58090

main67940-58080-C0iAYH30,GGH30..ALPHD..V202001-202004

BLACK,TRIM0#,2#

sub67940-V2040

main67940-58080-C0iAGH30,AYH30,GGH30..ALPHD..(L,Q)202001-202004

BLACK,TRIM0#

sub67940-V2040

main67940-58090-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)202001-202004

BLACK,TRIM2#

sub67940-V2050

main67940-58090-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)202001-202004

BLACK,TRIM0#,2#

sub67940-V2050

main67940-V2010-C0iAYH30..LHD..VFIRE..(V,Z)202105

BLACK,TRIM0#,2#

sub67916-V2010

sub67927-V2010

main67940-V2010-C0iAYH30..VFIRE..L202105

BLACK,TRIM2#

sub67916-V2010

sub67927-V2010

main67940-V2020-C0iAGH30..G202005

BLACK,TRIM0#

main67940-V2040-C0iGGH30..ALPHD..6FC;GGH30..8FC..(V,Z);AYH30..ALPHD..(V,Z)202005

BLACK,TRIM0#,2#

main67940-V2040-C0iGGH30..8FC..L;AGH30,AYH30..ALPHD..(L,Q)202005

BLACK,TRIM0#

main67940-V2050-C0iAYH30..RHD..V202005-202105

BLACK,TRIM0#,2#

main67940-V2050-C0iAYH30..RHD..V202005-202105

BLACK,TRIM2#

67919ORNAMENT, DOOR SCUFF

main00000-00000iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V,Z)202001

NOT APPLICABLE

main67927-V2020-C0iAGH30..G202005

BLACK,TRIM0#

67920PLATE ASSY, DOOR SCUFF, LH

main67912-58010-C0iAGH30..G202001-202005

BLACK,TRIM0#

sub67920-V2020

main67920-58130-C0iAGH30..G201501-201801

BLACK,TRIM0#

sub67920-58250

main67920-58180-C1iGGH30..RHD..V201501-201801

BLACK,TRIM0#

sub67920-58270

main67920-58180-C1iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q)201501-201801

BLACK,TRIM0#,2#

sub67920-58270

main67920-58190-C1iAGH30..VFIRE201501-201801

BLACK,TRIM2#

sub67920-58280

main67920-58230-C1iGGH30..Q201501-201801

BLACK,TRIM2#

sub67920-58300

sub67927-58120

main67920-58240-C1iGGH30..LHD..L201501-201801

BLACK,TRIM0#

sub67920-58290

main67920-58240-C1iGGH30..LHD..V201501-201801

BLACK,TRIM0#,2#

sub67920-58290

main67920-58250-C0iAGH30..G201801-202001

BLACK,TRIM0#

sub67912-58010

main67920-58270-C0iGGH30..RHD..V201801-202001

BLACK,TRIM0#

sub67920-58370

main67920-58270-C0iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q)201801-202001

BLACK,TRIM0#,2#

sub67920-58370

main67920-58280-C0iGGH30..Q201801-202001

BLACK,TRIM2#

sub67920-58380

main67920-58280-C0iAYH30..RHD..V201907-202001

BLACK,TRIM0#,2#

sub67920-58380

main67920-58290-C0iAYH30,GGH30..LHD..ALPHD..V201801-202001

BLACK,TRIM0#

sub67920-58390

main67920-58290-C0iAYH30,GGH30..LHD..ALPHD..V201801-202001

BLACK,TRIM0#,2#

sub67920-58390

main67920-58320-C0iAYH30..LHD..VFIRE..V201905-202001

BLACK,TRIM2#

sub67920-58400

main67920-58320-C0iAYH30..LHD..VFIRE..V201905-202001

BLACK,TRIM0#,2#

sub67920-58400

main67920-58370-C0iGGH30..RHD..V202001-202004

BLACK,TRIM0#

sub67920-V2040

main67920-58370-C0iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q)202001-202004

BLACK,TRIM0#,2#

sub67920-V2040

main67920-58380-C0iAGH30,GGH30..VFIRE202001-202004

BLACK,TRIM2#

sub67920-V2050

main67920-58380-C0iAYH30..RHD..V202001-202004

BLACK,TRIM0#,2#

sub67920-V2050

main67920-58390-C0iAYH30,GGH30..LHD..ALPHD..V202001-202004

BLACK,TRIM0#

sub67920-V2060

main67920-58390-C0iAYH30,GGH30..LHD..ALPHD..V202001-202004

BLACK,TRIM0#,2#

sub67920-V2060

main67920-58400-C0iAYH30..VFIRE..L202001-202005

BLACK,TRIM2#

sub67920-V2090

main67920-58400-C0iAYH30..VFIRE..L202001-202005

BLACK,TRIM0#,2#

sub67920-V2090

main67920-V2010-C0iAYH30..LHD..VFIRE..(V,Z)202105

BLACK,TRIM0#,2#

sub67912-V2010

sub67927-V2010

main67920-V2010-C0iAYH30..LHD..VFIRE..(V,Z)202105

BLACK,TRIM2#

sub67912-V2010

sub67927-V2010

main67920-V2020-C0iAGH30..G202005

BLACK,TRIM0#

main67920-V2040-C0iGGH30..RHD..8FC..L;AGH30,AYH30..RHD..ALPHD..(L,Q)202005

BLACK,TRIM0#,2#

main67920-V2040-C0iGGH30..RHD..8FC..L;AGH30,AYH30..RHD..ALPHD..(L,Q)202005

BLACK,TRIM0#

main67920-V2050-C0iAYH30..RHD..V202005

BLACK,TRIM2#

main67920-V2050-C0iAGH30,GGH30..VFIRE202005

BLACK,TRIM0#,2#

main67920-V2060-C0iAYH30,GGH30..LHD..ALPHD..L202005

BLACK,TRIM0#

sub67912-V2010

sub67927-58110

main67920-V2060-C0iAYH30,GGH30..LHD..ALPHD..L202005

BLACK,TRIM0#,2#

sub67912-V2010

sub67927-58110

main67920-V2090-C0iAYH30..VFIRE..L202005-202105

TRIM0#,2#

sub67912-V2010

sub67927-58120

main67920-V2090-C0iAYH30..LHD..VFIRE..V202005-202105

TRIM2#

sub67912-V2010

sub67927-58120

67921ERETAINER, REAR DOOR SCUFF PLATE

main67771-28150iAGH30,AYH30,GGH30201501-202001

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67771-58030iAGH30,AYH30;GGH30..ALPHD201501-202001

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-28020iAGH30,AYH30,GGH30201501-202001

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-28010iAGH30,AYH30,GGH30201501-202001

67927ORNAMENT, FRONT DOOR SCUFF, RH

main00000-00000iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V,Z)202001

NOT APPLICABLE

main67927-V2020-C0iAGH30..G202005

BLACK,TRIM0#

67928ORNAMENT, FRONT DOOR SCUFF, LH

main00000-00000iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V,Z)202001

NOT APPLICABLE

main67927-V2020-C0iAGH30..G202005

BLACK,TRIM0#

7152

9046710161

main90467-10161

9046710167

main90467-10167

9046718017

main90467-18017

53 parts on this diagram · 4 diagrams in section
