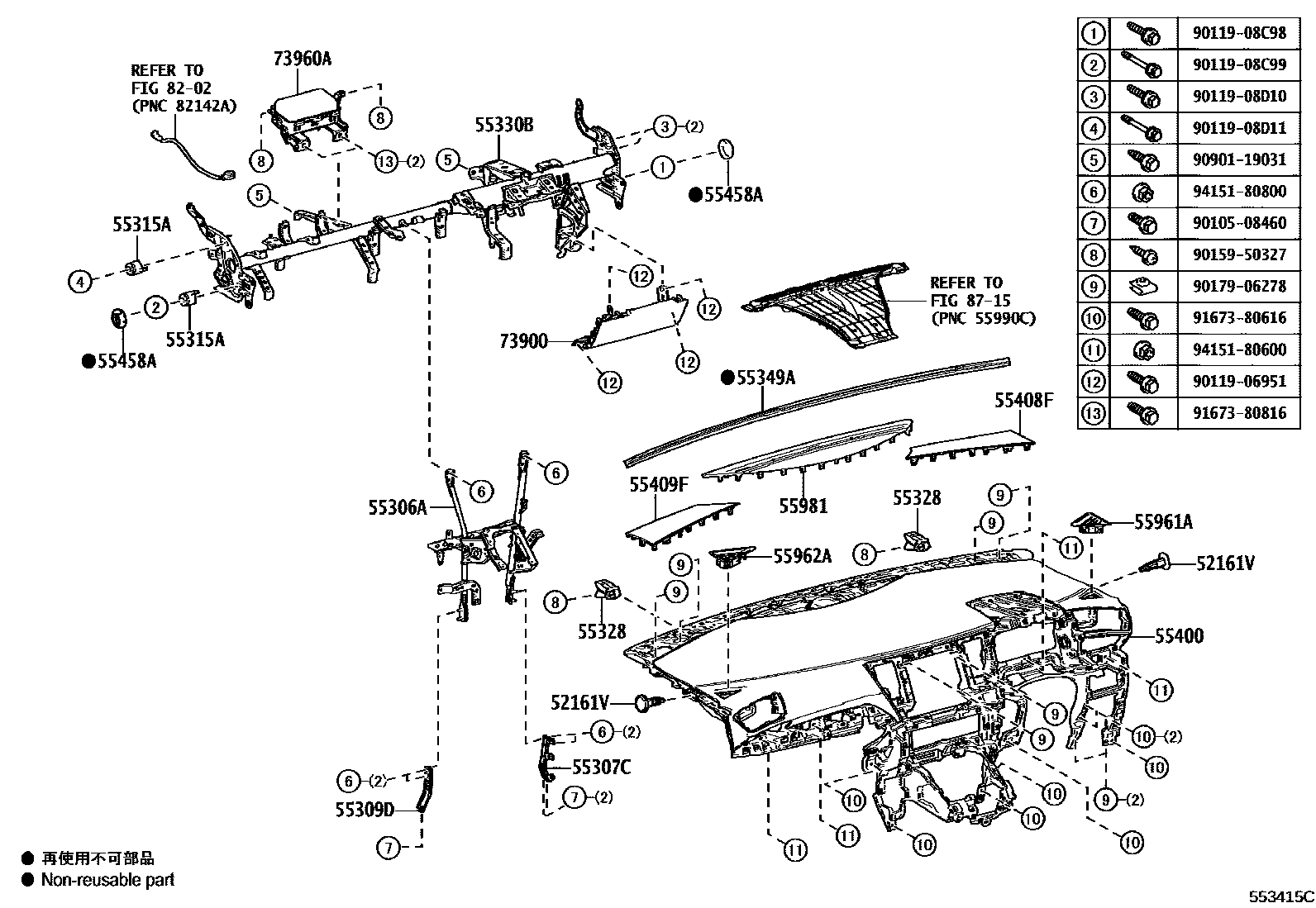

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER(1/2) 0004 1CENTER(2/2) 0005 1PASSENGER SIDE 0006 1 0007 1DRIVER SIDE 0008 1CENTER 0009 1PASSENGER SIDE 0010 1 0011 1DRIVER SIDE 0012 1CENTER(1/2) 0013 1CENTER(2/2) 0014 1PASSENGER SIDE 0015 1 0016 1DRIVER SIDE 0017 1CENTER 0018 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iAGH30,AYH30;GGH30..L,R,V201801-202001

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-58050iAGH30,AYH30..RHD;GGH30..RHD..(L,R,V)201801-202001

main55306-58060iAYH30,GGH30..LHD201801-202001

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-58020iAGH30,AYH30..RHD;GGH30..RHD..(L,R,V)201801-202001

main55307-58030iAYH30,GGH30..LHD201801-202001

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-58010iAGH30,AYH30,GGH30..RHD201501-201801

main55309-58020iGGH30..LHD201501-201801

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iAGH30,AYH30,GGH30202001

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130×2iAGH30,AYH30,GGH30201501-201801

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-58050iAGH30,AYH30,GGH30..RHD201501-201703

main55330-58051iAGH30,AYH30,GGH30..RHD201704-201801

main55330-58052iAGH30,AYH30,GGH30..RHD202001

main55330-58060iGGH30..LHD201501-201703

main55330-58061iGGH30..LHD201801-201812

main55330-58062iAYH30,GGH30..LHD201901-202001

main55330-58063iAYH30,GGH30..LHD202001

55349ACUSHION, INSTRUMENT PANEL

main55349-58050iGGH30..Q201801-201907

main55349-58070iGGH30..LHD201501-201601

main55349-58071iAYH30,GGH30..LHD201801-202001

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-58020-C0iAGH30..G201501-201701

BLACK,TRIM0#

main55400-58021-C0iAGH30..G201701-201801

BLACK,TRIM0#

main55400-58030-C0iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q); AGH30,GGH30..VFIRE; GGH30..RHD..V201501-201701

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55400-58031-C0supersedes 55400-58021-C0iAGH30,AYH30,GGH30..RHD..ALPHD..(L,Q); AGH30,GGH30..VFIRE; GGH30..RHD..V201701-201801

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55400-58040-C0iGGH30..LHD..L; GGH30..LHD..V201501-201601

BLACK,TRIM0#; BLACK,TRIM0#,2#

main55400-58041-C0iAYH30,GGH30..LHD..ALPHD..L; AYH30,GGH30..LHD..V201801-202001

BLACK,TRIM0#; BLACK,TRIM0#,2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-58030-C0iAGH30,AYH30,GGH30..ALPHD..(G,L,Q); AGH30,GGH30..VFIRE; GGH30..V201501-201801

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-58020-C0iAGH30,AYH30,GGH30..ALPHD..(G,L,Q); AGH30,AYH30,GGH30..VFIRE..(L,R,S); AYH30,GGH30..V201801-202001

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×2iAGH30,AYH30;GGH30..L,R,V201801-202001

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-58040-C0iAGH30,AYH30,GGH30..RHD..ALPHD..(G,L,Q); AGH30,GGH30..VFIRE; GGH30..RHD..V201501-201801

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55961-58050-C0iAYH30,GGH30..LHD..ALPHD..L; AYH30,GGH30..LHD..V201801-202001

BLACK,TRIM0#; BLACK,TRIM0#,2#

55962ANOZZLE, SIDE DEFROSTER, LH

main55962-58040-C0iAGH30,GGH30..VFIRE; AYH30..RHD..V;GGH30..ALPHD..6FC;GGH30..RHD..8FC..(V,Z); GGH30..RHD..8FC..L;AGH30,AYH30..RHD..ALPHD202001

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55962-58050-C0iAYH30,GGH30..LHD..(V,Z); AYH30,GGH30..LHD..ALPHD..L; AYH30..VFIRE..L202001

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-58020-C0iAGH30,AYH30,GGH30..ALPHD..(G,L,Q); AGH30,GGH30..VFIRE; GGH30..V201501-201511

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main55981-58021-C0iAGH30,AYH30,GGH30..VFIRE..(L,R,S); AYH30..V,Z;GGH30..ALPHD..6FC;GGH30..8FC..(V,Z); GGH30..8FC..L;AGH30,AYH30..ALPHD..(G,L,Q)202001

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-58030-C0iAGH30,GGH30..VFIRE; AYH30..RHD..V;GGH30..ALPHD..6FC;GGH30..RHD..8FC..(V,Z); GGH30..RHD..8FC..L;AGH30,AYH30..RHD..ALPHD202001

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

main73900-58040-C0iAYH30,GGH30..LHD..(V,Z); AYH30,GGH30..LHD..ALPHD..L; AYH30..VFIRE..L202001

BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-58030iAGH30,AYH30,GGH30201501-201801

8202WIRING & CLAMP

→ Go to FIG 82-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9010508460

main90105-08460

9011906951

main90119-06951

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D10

main90119-08D10

9011908D11

main90119-08D11

9015950327

main90159-50327

9017906278

main90179-06278

9090119031

main90901-19031

9167380616

main91673-80616

9167380816

main91673-80816

9415180600

main94151-80600

9415180800

main94151-80800

32 parts on this diagram · 18 diagrams in section
