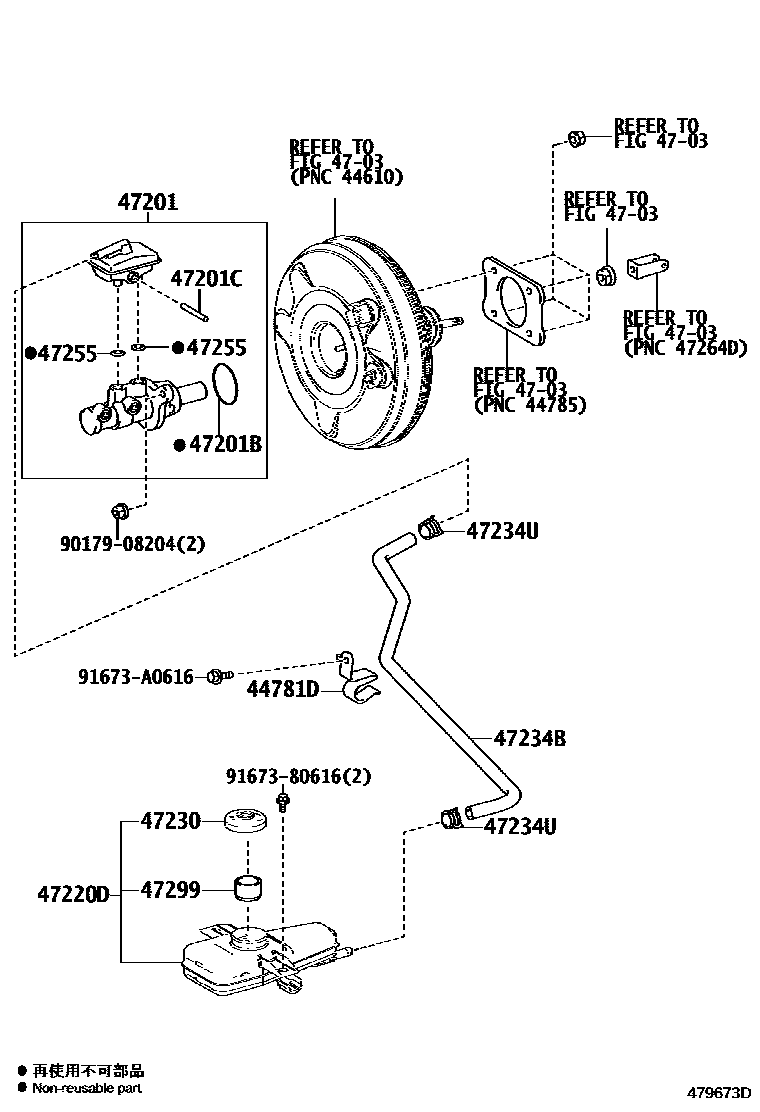

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

44781DBRACKET, RESERVOIR HOSE

main44781-58030iAGH30,GGH30201501-202001

main44781-58040iAYH30..LHD201905-202001

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-58070iAGH30,GGH30..RHD201501-201602

sub47201-58071

main47201-58071iAGH30,GGH30..RHD..(G,L,R,S,V)201603-202001

main47201-58080iGGH30..LHD201501-201602

sub47201-58081

main47201-58081iGGH30..LHD201603-202001

main47201-58090iAYH30201501-202001

main47201-58100iAYH30..LHD201905-202001

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iAGH30,GGH30201501-202001

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iGGH30..LHD201501-202001

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-58050iAGH30,GGH30201501-202001

main47220-58060iAYH30201501-202001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010iAYH30201704-202001

main47230-47090iAYH30201612-201704

main47230-58010iAYH30201501-201612

sub47230-11010

main47230-58021iAGH30,GGH30..G,L,R,S,V201501-202001

47234BTUBE, RESERVOIR, NO.1

main47234-58090iAGH30,GGH30..RHD201501-202001

main47234-58100iGGH30..LHD201501-202001

main47234-58110iAYH30201501-202001

main47234-58130iAYH30..LHD201905-202001

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96136-41801iAGH30,GGH30201501-201904

main96136-51801iGGH30..Q201905-202001

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAYH30201501-202001

main90015-AT001iGGH30..Q201501-202001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iAYH30201501-202001

main47299-58021iAGH30,GGH30..G,L,R,S,V201501-202001

9017908204

main90179-08204

9167380616

main91673-80616

91673A0616

main91673-A0616

14 parts on this diagram · 4 diagrams in section
