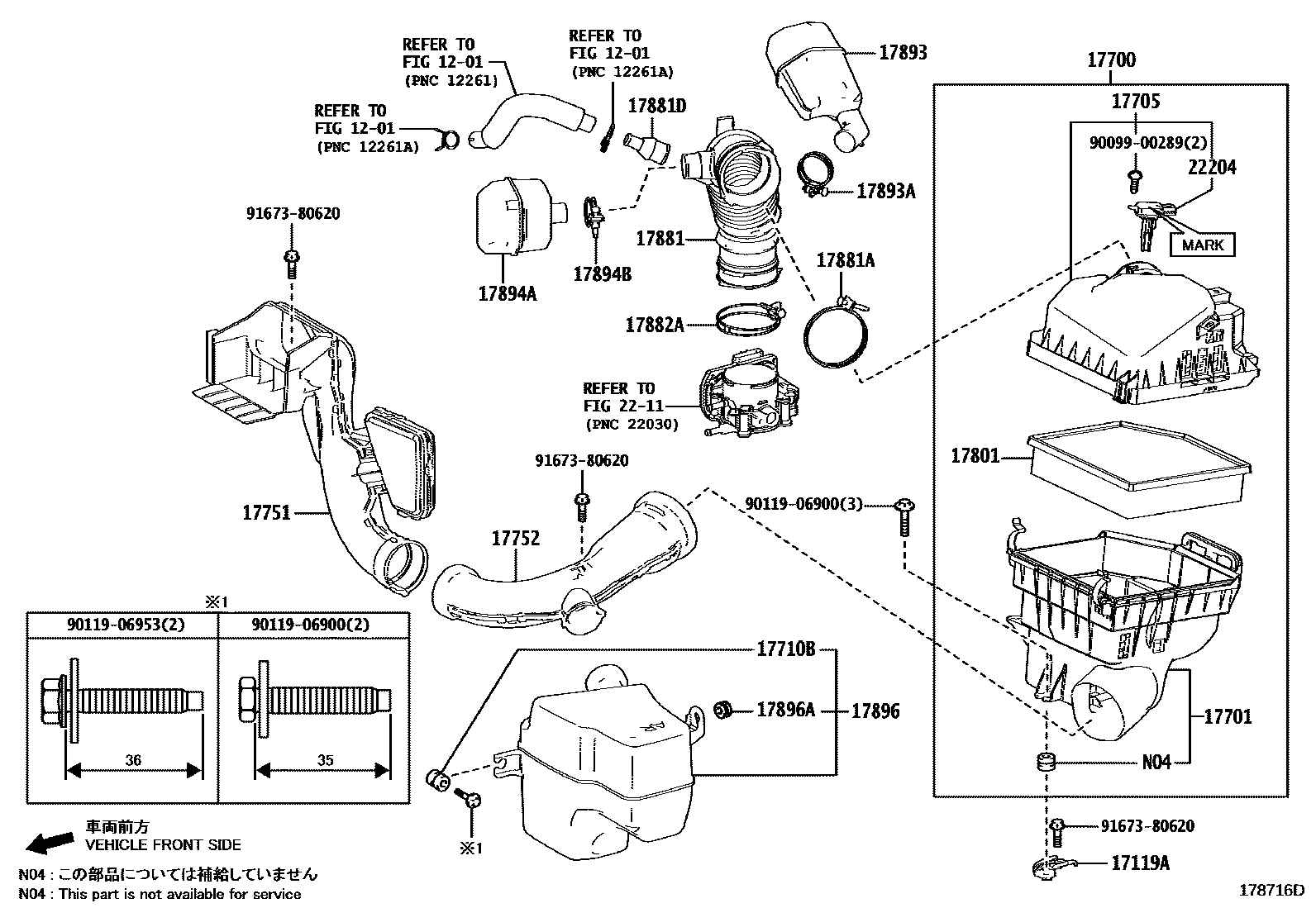

AIR CLEANER
1201
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17896RESONATOR, INTAKE AIR, NO.3
17896ACLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
9009900289
main90099-00289
9011906900
main90119-06900
9011906953
main90119-06953
9167380620
main91673-80620
26 parts on this diagram · 9 diagrams in section
