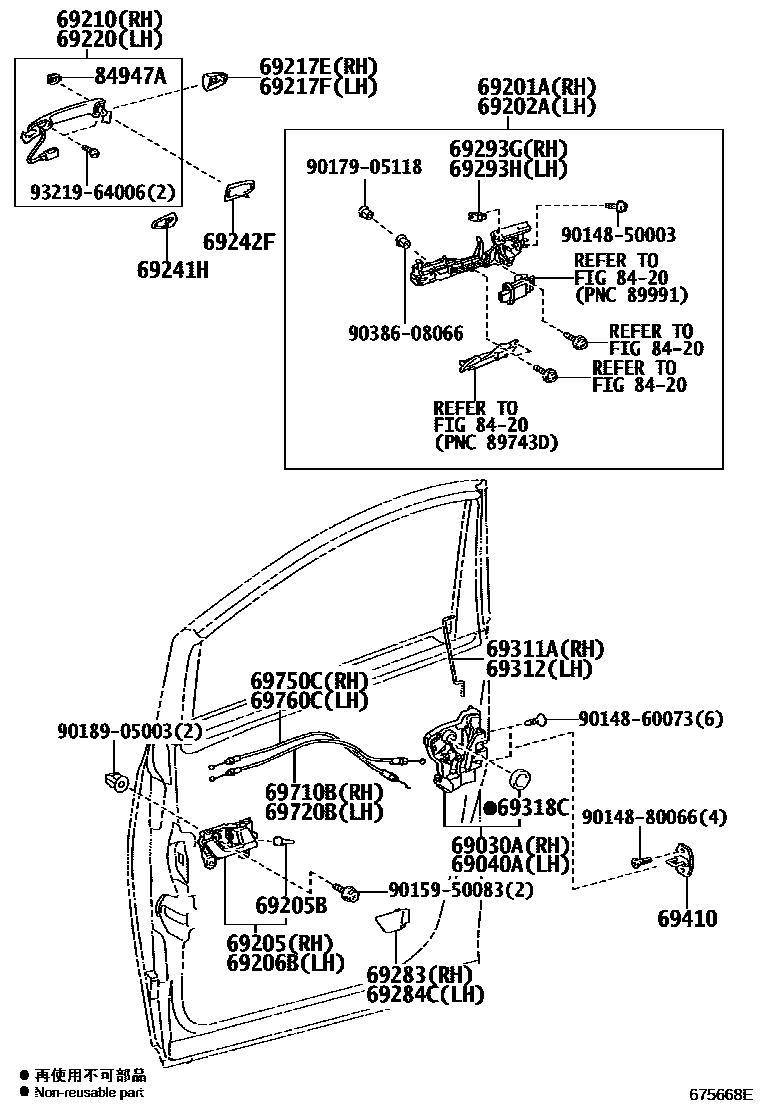

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iANH20,GGH20..RHD200804-201110

main69030-42221iANH20,GGH20..LHD201006-201007

main69030-58010iANH20,GGH20..LHD201007-201110

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-28211iANH20,GGH20..LHD201006-201007

main69040-42230iANH20,ATH20,GGH20..RHD200804-201110

main69040-58020iANH20,GGH20..LHD201007-201110

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-28030iANH20,ATH20,GGH20200804-201110

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-28020iANH20,ATH20,GGH20200804-201110

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20210-C0iANH20,GGH20..350S200804-201501

BLACK,TRIM0#

sub69205-20210

main69205-20210-C0iGGH20..GCC;ANH20,ATH20..07S;GGH20..RHD..ALPHD201110-201501

BLACK,TRIM0#,1#

sub69205-20210

main69205-20210-C0iGGH20..GCC;ANH20,ATH20..07S;GGH20..RHD..ALPHD200804-201501

BLACK,TRIM1#

sub69205-20210

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iANH20,GGH20200804-201110

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20210-C0iGGH20..LHD..GEN201110-201501

BLACK,TRIM0#,1#

sub69206-20210

main69206-20210-C0iANH20,GGH20..350G,350X200804-201501

BLACK,TRIM0#

sub69206-20210

main69206-20210-C0iANH20,GGH20..350G,350X200804-201501

BLACK,TRIM1#

sub69206-20210

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20410-A1iANH20,ATH20,GGH20201002-201501

WHITE PEARL CS.,070

sub69210-20410

main69210-20410-B0iANH20,ATH20,GGH20..ALPHD201002-201501

SILVER ME.,1F7

sub69210-20410

main69210-20410-B3iANH20,GGH20..350S201002-201501

SILVER ME.,1E4

sub69210-20410

main69210-20410-C1iANH20,GGH20201002-201501

BLACK,202

sub69210-20410

main69210-20410-D2iGGH20..VFIRE201008-201501

BORDEAUX M.M.,3R9

sub69210-20410

main69210-20410-E0iANH20..07S;GGH20..350G201002-201110

BEIGE ME.,4T8

sub69210-20410

main69210-20410-E1iANH20,ATH20,GGH20..07S..ALPHD201002-201501

GOLD PEARL CS.,4U1

sub69210-20410

main69210-20410-J1iANH20..07S;GGH20..350G201002-201110

DK.BLUE MC.,8S6

sub69210-20410

main69210-20410-J4iANH20,GGH20..LHD..GEN201110-201501

DARK BLUE MC.,8P8

sub69210-20410

main69210-20410-J5iATH20201112-201501

LT.BLUE ME.,8Q6

sub69210-20410

main69210-30290-A8iANH20,GGH20200804-201002

WHITE PEARL CS.,070

sub69210-30290

main69210-30290-B2iANH20,GGH20..350G,350X200804-201002

SILVER ME.,1F7

sub69210-30290

main69210-30290-B3iANH20,GGH20..350S200804-201002

SILVER ME.,1E4

sub69210-30290

main69210-30290-C0iANH20,GGH20200804-201002

BLACK,202

sub69210-30290

main69210-30290-E3iANH20..07S;GGH20..350G200804-201002

BEIGE ME.,4T8

sub69210-30290

main69210-30290-E4iANH20..07S;GGH20..350G200804-201002

GOLD PEARL CS.,4U1

sub69210-30290

main69210-30290-J2iANH20..07S;GGH20..350G200804-201002

DK.BLUE MC.,8S6

sub69210-30290

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69250-30010-A7iANH20,ATH20,GGH20..RHD200804-201501

WHITE PEARL CS.,070

sub69250-30010

main69250-30010-B2iANH20,ATH20,GGH20..RHD..ALPHD200804-201501

SILVER ME.,1F7

sub69250-30010

main69250-30010-B4iANH20,GGH20..350S200804-201501

SILVER ME.,1E4

sub69250-30010

main69250-30010-C0iANH20,GGH20..RHD200804-201501

BLACK,202

sub69250-30010

main69250-30010-D5iGGH20..VFIRE;GGH20..RHD..350G200804-201501

BORDEAUX M.M.,3R9

sub69250-30010

main69250-30010-E3iANH20..07S..CVFC;GGH20..RHD..350G200804-201110

BEIGE ME.,4T8

sub69250-30010

main69250-30010-E4iANH20,ATH20,GGH20..RHD..07S..ALPHD200804-201501

GOLD PEARL CS.,4U1

sub69250-30010

main69250-30010-J2iANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD200804-201110

DK.BLUE MC.,8S6

sub69250-30010

main69250-30010-R8iATH20201112-201501

LT.BLUE ME.,8Q6

sub69250-30010

main69250-30020-A6iANH20,GGH20..LHD201006-201501

WHITE PEARL CS.,070

sub69250-30020

main69250-30020-B2iANH20,GGH20..LHD201006-201501

SILVER ME.,1F7

sub69250-30020

main69250-30020-C0iANH20,GGH20..LHD201006-201501

BLACK,202

sub69250-30020

main69250-30020-D5iANH20,GGH20..LHD..GEN201110-201501

BORDEAUX M.M.,3R9

sub69250-30020

main69250-30020-E3iANH20,GGH20..LHD201006-201110

BEIGE ME.,4T8

sub69250-30020

main69250-30020-E4iANH20,GGH20..LHD201006-201501

GOLD PEARL CS.,4U1

sub69250-30020

main69250-30020-J0iANH20,GGH20..LHD..GEN201110-201501

DARK BLUE MC.,8P8

sub69250-30020

main69250-30020-J2iANH20,GGH20..LHD201006-201110

DK.BLUE MC.,8S6

sub69250-30020

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69250-30010-A7iANH20,GGH20..LHD201006-201501

WHITE PEARL CS.,070

sub69250-30010

main69250-30010-B2iANH20,GGH20..LHD201006-201501

SILVER ME.,1F7

sub69250-30010

main69250-30010-C0iANH20,GGH20..LHD201006-201501

BLACK,202

sub69250-30010

main69250-30010-D5iANH20,GGH20..LHD..GEN201110-201501

BORDEAUX M.M.,3R9

sub69250-30010

main69250-30010-E3iANH20,GGH20..LHD201006-201110

BEIGE ME.,4T8

sub69250-30010

main69250-30010-E4iANH20,GGH20..LHD201006-201501

GOLD PEARL CS.,4U1

sub69250-30010

main69250-30010-J0iANH20,GGH20..LHD..GEN201110-201501

DARK BLUE MC.,8P8

sub69250-30010

main69250-30010-J2iANH20,GGH20..LHD201006-201110

DK.BLUE MC.,8S6

sub69250-30010

main69250-30020-A6iANH20,ATH20,GGH20..RHD200804-201501

WHITE PEARL CS.,070

sub69250-30020

main69250-30020-B2iANH20,GGH20..RHD..(350G,350X)200804-201501

SILVER ME.,1F7

sub69250-30020

main69250-30020-C0iANH20,ATH20,GGH20..RHD200804-201501

BLACK,202

sub69250-30020

main69250-30020-D5iGGH20..VFIRE200804-201501

BORDEAUX M.M.,3R9

sub69250-30020

main69250-30020-E3iANH20..07S..CVFC;GGH20..RHD..350G200804-201110

BEIGE ME.,4T8

sub69250-30020

main69250-30020-E4iANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD200804-201501

GOLD PEARL CS.,4U1

sub69250-30020

main69250-30020-J2iANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD200804-201110

DK.BLUE MC.,8S6

sub69250-30020

main69250-30020-P4iANH20..350S200804-201501

SILVER ME.,1E4

sub69250-30020

main69250-30020-R7iATH20201112-201501

LT.BLUE ME.,8Q6

sub69250-30020

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-20410-A1iANH20,GGH20201002-201501

WHITE PEARL CS.,070

sub69210-20410

main69210-20410-B0iANH20,GGH20..350G,350X201002-201501

SILVER ME.,1F7

sub69210-20410

main69210-20410-B3iANH20,GGH20..350S201002-201501

SILVER ME.,1E4

sub69210-20410

main69210-20410-C1iANH20,GGH20201002-201501

BLACK,202

sub69210-20410

main69210-20410-D2iGGH20..VFIRE;ANH20,GGH20..LHD..GEN201008-201501

BORDEAUX M.M.,3R9

sub69210-20410

main69210-20410-E0iANH20..07S;GGH20..350G201002-201110

BEIGE ME.,4T8

sub69210-20410

main69210-20410-E1iANH20..07S;GGH20..350G201002-201501

GOLD PEARL CS.,4U1

sub69210-20410

main69210-20410-J1iANH20..07S;GGH20..350G201002-201110

DK.BLUE MC.,8S6

sub69210-20410

main69210-20410-J4iANH20,GGH20..LHD..GEN201110-201501

DARK BLUE MC.,8P8

sub69210-20410

main69210-20410-J5iATH20201112-201501

LT.BLUE ME.,8Q6

sub69210-20410

main69210-30290-A8iANH20,GGH20200804-201002

WHITE PEARL CS.,070

sub69210-30290

main69210-30290-B2iANH20,GGH20..350G,350X200804-201002

SILVER ME.,1F7

sub69210-30290

main69210-30290-B3iANH20,GGH20..350S200804-201002

SILVER ME.,1E4

sub69210-30290

main69210-30290-C0iANH20,GGH20200804-201002

BLACK,202

sub69210-30290

main69210-30290-E3iANH20..07S;GGH20..350G200804-201002

BEIGE ME.,4T8

sub69210-30290

main69210-30290-E4iANH20..07S;GGH20..350G200804-201002

GOLD PEARL CS.,4U1

sub69210-30290

main69210-30290-J2iANH20..07S;GGH20..350G200804-201002

DK.BLUE MC.,8S6

sub69210-30290

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-28060iANH20,ATH20,GGH20200804-201110

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60030iANH20,ATH20,GGH20200804-201110

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-C0iANH20,GGH20..350S200804-201501

BLACK,TRIM0#

sub69283-20020

main69283-20020-C0iGGH20..GCC;ANH20,ATH20..07S;GGH20..RHD..ALPHD201110-201501

BLACK,TRIM0#,1#

sub69283-20020

main69283-20020-C0iGGH20..GCC;ANH20,ATH20..07S;GGH20..RHD..ALPHD200804-201501

BLACK,TRIM1#

sub69283-20020

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-C0iANH20,GGH20..350G,350X200804-201501

BLACK,TRIM0#

sub69284-20010

main69284-20010-C0iANH20,GGH20..350G,350X200804-201501

BLACK,TRIM1#

sub69284-20010

main69284-20010-C0iGGH20..LHD..GEN201110-201501

BLACK,TRIM0#,1#

sub69284-20010

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iANH20,GGH20200804-201501

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iANH20,GGH20200804-201110

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-58020iANH20,GGH20200804-201110

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-58020iANH20,GGH20200804-201110

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iANH20,GGH20200804-201110

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iANH20,GGH20200804-201110

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-58020iANH20,GGH20200804-201110

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-58020iANH20,GGH20200804-201110

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-58020iANH20,GGH20200804-201110

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-58020iANH20,GGH20200804-201110

8420

84947ACOVER, DOOR ELECTRICAL KEY SWITCH

main84947-68010iANH20,GGH20200804-201501

9014850003

main90148-50003

9014860073

main90148-60073

9014880066

main90148-80066

9015950083

main90159-50083

9017905118

main90179-05118

9018905003

main90189-05003

9038608066

main90386-08066

9321964006

main93219-64006

35 parts on this diagram · 1 diagram in section
