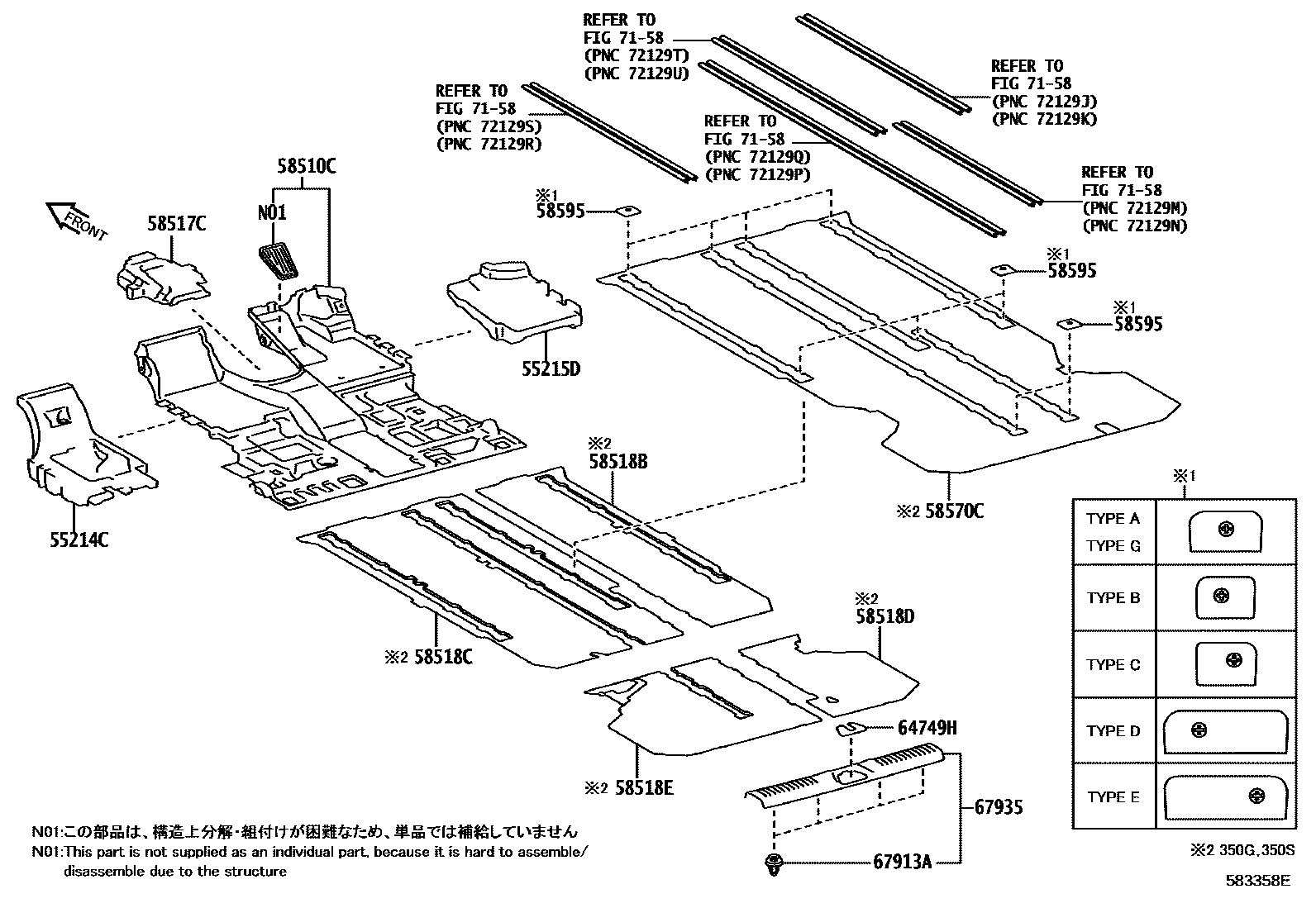

FLOOR MAT & SILENCER PAD

0001 1 0002 1W(REAR POWER SEAT) 0003 1 0004 1 0005 1W(REAR POWER SEAT) 0006 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main58192-58010iANH20,ATH20,GGH20..RHD200804-201110

main58192-58030iANH20,GGH20..LHD201006-201110

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-58020iANH20,GGH20..RHD200804-201110

main55215-58030iANH20,ATH20,GGH20..RHD201110

main55215-58040iANH20,GGH20..LHD201006-201110

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58500-58100-A0iANH20,GGH20..RHD..(350G,350X)200804-201110

SHELL,TRIM0#

main58500-58100-B0iANH20,GGH20..350S200804-201110

DK.GRAY,TRIM1#

main58500-58101-A0iGGH20..350X;ANH20..RHD..07S201110-201501

SHELL,TRIM0#

main58500-58101-B0iGGH20..VFIRE201110-201501

DK. GREY,TRIM1#

main58500-58111-A0iGGH20..RHD..350G201205-201501

SHELL,TRIM0#

main58500-58111-B0iGGH20..VFIRE201205-201501

DK. GREY,TRIM1#

main58500-58130-A0iANH20,GGH20..LHD201006-201110

SHELL,TRIM0#

main58500-58131-A0iANH20,GGH20..GCC201110-201501

SHELL,TRIM0#

main58500-58140-A0iANH20,GGH20..LHD..(6FC,CVFC)..GEN201110-201501

SHELL,TRIM0#

main58500-58140-B0iGGH20..LHD..GEN201209-201501

DK. GREY,TRIM1#

main58500-58150-A0iATH20201112-201205

SHELL,TRIM0#

sub58500-58151

main58500-58160-A0iATH20201205-201311

SHELL,TRIM0#

sub58500-58161

main58500-58161-A0iATH20201311-201501

SHELL,TRIM0#

58517CPAD, FRONT FLOOR MAT

main58573-58010iANH20,GGH20..RHD200804-201110

main58573-58020iANH20,GGH20..LHD201006-201110

58518BMAT, REAR FLOOR, NO.2

main58518-58290iANH20..350S200906-201110

main58518-58320iGGH20..350S;ANH20,GGH20..GCC;ANH20..07S..CVFC200804-201110

main58518-58320iANH20,GGH20..GCC201110-201209

PHILIPPINES SPEC&

main58518-58320iGGH20..VFIRE;ANH20..RHD..07S201110

THAILAND SPEC

main58518-58340iANH20..LHD..GEN;ATH20,GGH20..350G..GEN201110

"L EDITION"*(L) OR "L PACKAGE"*(L)

main58518-58340iANH20,GGH20..GCC200804-201110

58518CMAT, REAR FLOOR, NO.2

main58518-58300iANH20..350S200906-201110

main58518-58330iANH20,GGH20..GCC201110-201209

PHILIPPINES SPEC&

main58518-58330iGGH20..350S;ANH20,GGH20..GCC;ANH20..07S..CVFC200804-201110

main58518-58330iGGH20..VFIRE;ANH20..RHD..07S201110

THAILAND SPEC

main58518-58350iANH20,GGH20..(4FC,6FC)..350G..GEN200804-201110

main58518-58350iANH20..LHD..GEN;GGH20..350G..GEN201110

"L EDITION"*(L) OR "L PACKAGE"*(L)

main58518-58620iATH20201112

58518DMAT, REAR FLOOR, NO.2

main58518-58310iANH20..350X201110

THAILAND SPEC

main58518-58310iANH20;GGH20..350G,350S200804-201110

58518EMAT, REAR FLOOR, NO.2

main58518-58480iANH20;GGH20..350G,350S200804-201110

main58518-58480iANH20;GGH20..350G,350S201110

THAILAND SPEC

main58518-58600iATH20201112

58570CCARPET ASSY, REAR FLOOR

main58570-58150-B0iANH20..350S200906-201501

DK. GREY,TRIM1#

main58570-58160-A0iANH20..RHD..07S200906-201501

SHELL,TRIM0#

sub58570-58161

main58570-58160-A0iANH20..350X200906-201501

THAILAND SPEC,SHELL,TRIM0#

sub58570-58161

main58570-58160-A0iGGH20..LHD..GEN201110-201209

PHILIPPINES SPEC&,SHELL,TRIM0#

sub58570-58161

main58570-58160-B0iGGH20..350S200804-201501

DK. GREY,TRIM1#

sub58570-58161

main58570-58170-A0iGGH20..350G200804-201005

SHELL,TRIM0#

sub58570-58171

main58570-58171-A0iANH20,GGH20..GCC201006-201501

SHELL,TRIM0#

main58570-58171-A0iANH20,GGH20..(4FC,6FC)..350G..GEN201006-201110

L EDITION OR L PACKAGE,SHELL,TRIM0#

main58570-58171-A0iANH20..LHD..GEN;GGH20..350G..GEN201110-201501

"L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#

main58570-58171-B0iGGH20..LHD..GEN201110-201501

DK. GREY,TRIM1#

main58570-58230-A0iATH20201112-201501

SHELL,TRIM0#

58595MOULDING, FLOOR CARPET, NO.3

main58595-58020-A0iANH20..350X201110-201501

"L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#

main58595-58020-A0iANH20,GGH20..(4FC,6FC)..350G..GEN200804-201501

SHELL,TRIM0#

main58595-58020-A0iANH20,GGH20..GCC;ANH20..CVFC..350G200906-201110

L EDITION OR L PACKAGE,SHELL,TRIM0#

main58595-58020-A0iANH20,GGH20..GCC;ANH20..CVFC..350G200906-201110

SHELL,TRIM0#,TYPE A:REFER ILLUST.

main58595-58020-A0iANH20,GGH20..GCC;ANH20..CVFC..350G200906-201110

THAILAND SPEC,SHELL,TRIM0#,TYPE A:REFER ILLUST.

main58595-58020-A0iANH20,GGH20..GCC201110-201209

PHILIPPINES SPEC&,SHELL,TRIM0#

main58595-58020-A0iANH20..LHD..GEN;ATH20,GGH20..350G..GEN201110-201501

THAILAND SPEC,SHELL,TRIM0#

main58595-58020-B0iANH20,GGH20..350S201110-201501

DK.GRAY,TRIM1#

main58595-58020-B0iANH20,GGH20..350S200804-201110

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main58595-58030-B0iANH20..350S200906-201110

DK.GRAY,TRIM1#,TYPE F:REFER ILLUST.

64749HCOVER, BACK DOOR STRIKER

main64749-58010-A0iANH20,GGH20..350G,350X200804-201501

SHELL,TRIM0#

main64749-58010-B0iGGH20..LHD..GEN;ANH20,GGH20..350S200804-201501

DK.GRAY,TRIM1#

67913ACLIP(FOR SCUFF PLATE)

main90467-10161iANH20,GGH20200804-201110

67935PLATE, BACK DOOR SCUFF

main67935-58020-A0iANH20,GGH20..350G,350X200804-201005

SHELL,TRIM0#

sub67935-58021

main67935-58020-B0iANH20,GGH20..350S200804-201005

DK.GRAY,TRIM1#

sub67935-58021

main67935-58021-A0iANH20,GGH20..350G,350X201006-201306

SHELL,TRIM0#

sub67935-58022

main67935-58021-B0iGGH20..LHD..GEN;ANH20,GGH20..350S201006-201306

DK.GRAY,TRIM1#

sub67935-58022

main67935-58022-A0iANH20,ATH20,GGH20..07S..ALPHD201307-201501

SHELL,TRIM0#

main67935-58022-B0iGGH20..LHD..GEN;ANH20,GGH20..350S201307-201501

DK.GRAY,TRIM1#

7158

14 parts on this diagram · 6 diagrams in section
