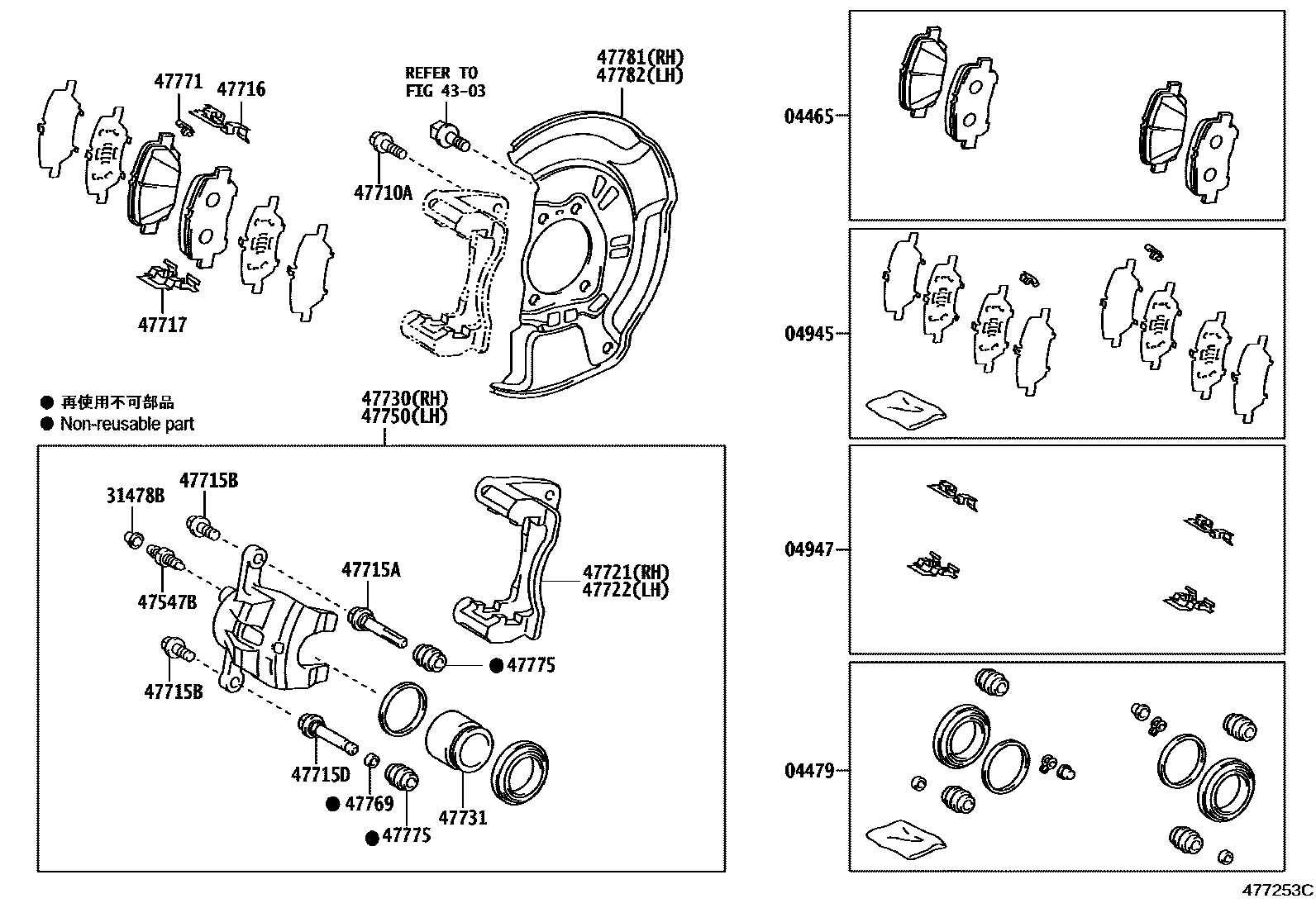

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1G'S

04465PAD KIT, DISC BRAKE, FRONT

main04465-28520iANH20,GGH20200804-201110

MARK ADVICS PV565H

main04465-WY020iANH20..LHD..CVFC201211

MARK ADVICS VC065H,G'S

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-28050iANH20,GGH20200804-201110

main04478-48150iANH20..LHD..CVFC201211

G'S

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-28200iANH20,GGH20200804-201110

main04945-48150iANH20..LHD..CVFC201211

G'S

04947FITTING KIT, DISC BRAKE, FRONT

main04947-28070iANH20,GGH20200804-201110

main04947-48080iANH20..LHD..CVFC201211

G'S

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iANH20,GGH20200804-201110

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iANH20..LHD..CVFC201211

G'S

main47547-20010iANH20,GGH20200804-201110

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iANH20,ATH20,GGH20200804-201501

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iANH20..LHD..CVFC201211

G'S

main47715-48050iANH20,GGH20200804-201110

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA602iANH20..LHD..CVFC201211

G'S

main90105-08346iANH20,ATH20,GGH20200804-201110

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48050iANH20,GGH20200804-201110

main47715-48150iANH20..LHD..CVFC201211

G'S

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28570iANH20,GGH20200804-201110

main47716-48150iANH20..LHD..CVFC201211

G'S

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-28570iANH20,GGH20200804-201110

main47717-48150iANH20..LHD..CVFC201211

G'S

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-28570iANH20,GGH20200804-201110

main47721-WY030iANH20..LHD..CVFC201211

G'S

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-28570iANH20,GGH20200804-201110

main47722-WY030iANH20..LHD..CVFC201211

G'S

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28570iANH20,GGH20200804-201110

main47730-WY030iANH20..LHD..CVFC201211

G'S

47731PISTON, FRONT DISC BRAKE

main47731-48030iANH20,GGH20200804-201110

main47731-48150iANH20..LHD..CVFC201211

G'S

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28570iANH20,GGH20200804-201110

main47750-WY030iANH20..LHD..CVFC201211

G'S

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28570iANH20,GGH20200804-201110

main47769-48150iANH20..LHD..CVFC201211

G'S

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48010iANH20,GGH20200804-201110

main47771-48150iANH20..LHD..CVFC201211

G'S

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28570iANH20,GGH20200804-201110

main47775-48150iANH20..LHD..CVFC201211

G'S

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28210iANH20,GGH20200804-201501

main47781-42050iANH20..LHD..CVFC201211

G'S

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28210iANH20,GGH20200804-201501

main47782-42050iANH20..LHD..CVFC201211

G'S

23 parts on this diagram · 2 diagrams in section
