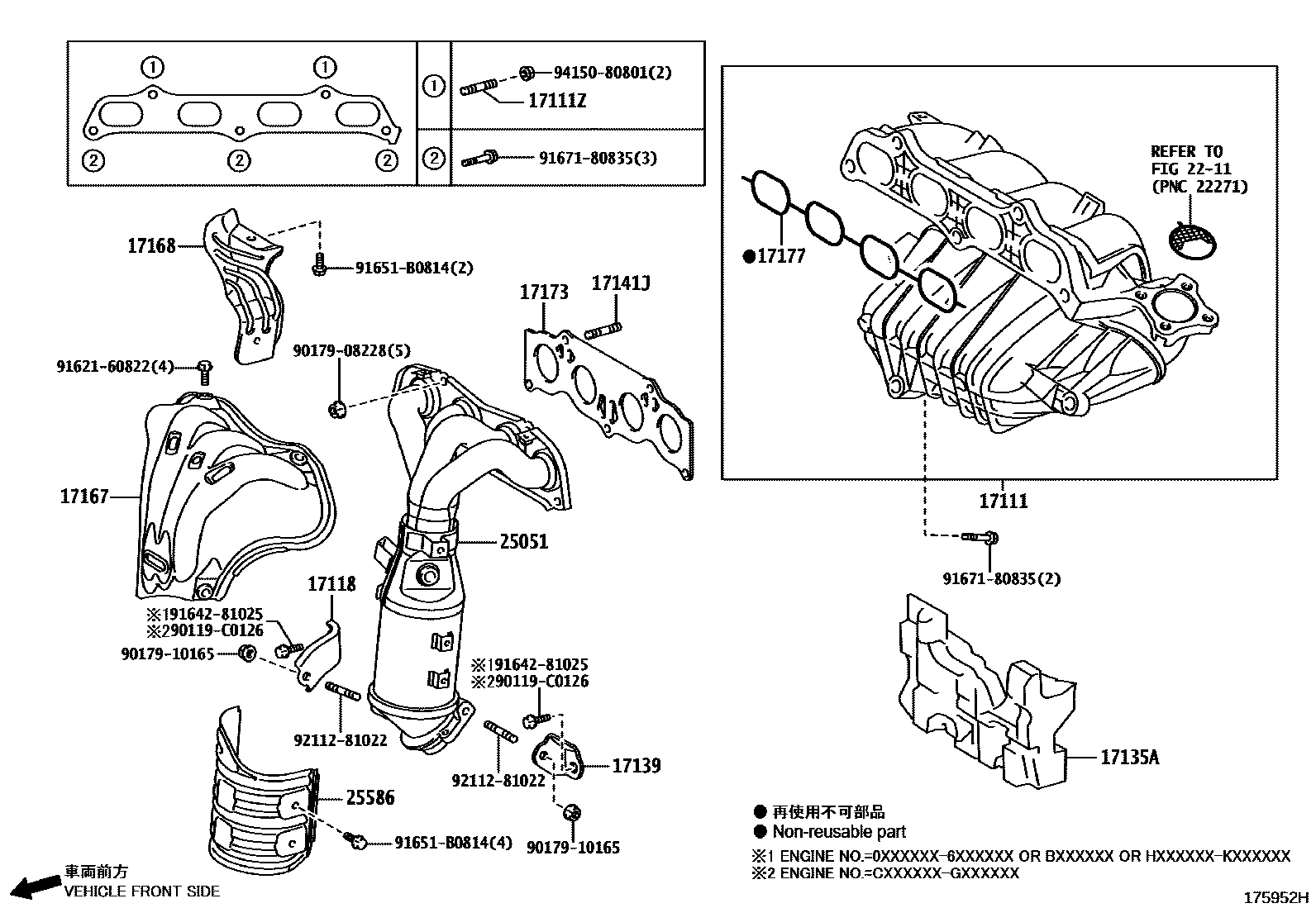

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
*195
*194
2AZ-FE CHINA,*195
17118STAY, MANIFOLD
*195
*194
2AZ-FE CHINA,*195
THAILAND SPEC&2AZ-FE CHINA,*195
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17139STAY, MANIFOLD, NO.2
*195
*194
2AZ-FE CHINA,*195
THAILAND SPEC&2AZ-FE CHINA,*195
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
*195
*194
2AZ-FE CHINA,*195
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*195
(J),*194
2AZ-FE CHINA,*195
THAILAND SPEC&2AZ-FE CHINA,*195
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L),*195
2AZ-FE CHINA,(L),*195
THAILAND SPEC&2AZ-FE CHINA,(L),*195
(J),*195
*195
sub17168-31050
17173GASKET, EXHAUST MANIFOLD TO HEAD
*195
(J),*194
2AZ-FE CHINA,*195
THAILAND SPEC&2AZ-FE CHINA,*195
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
2AZ-FE CHINA,(L),*195
(L),*195
THAILAND SPEC&2AZ-FE CHINA,(L),*195
*114=TOYOTA/28340/Y,*195
(J),*195
*195
25586INSULATOR, MANIFOLD CONVERTER, NO.1
(L),*195
2AZ-FE CHINA,(L),*195
THAILAND SPEC&2AZ-FE CHINA,(L),*195
*195
(J),*195
90119C0126
main90119-C0126
9017908228
main90179-08228
9017910165
main90179-10165
9162160822
main91621-60822
9164281025
main91642-81025
91651B0814
main91651-B0814
9167180835
main91671-80835
9211281022
main92112-81022
9415080801
main94150-80801
22 parts on this diagram · 3 diagrams in section
