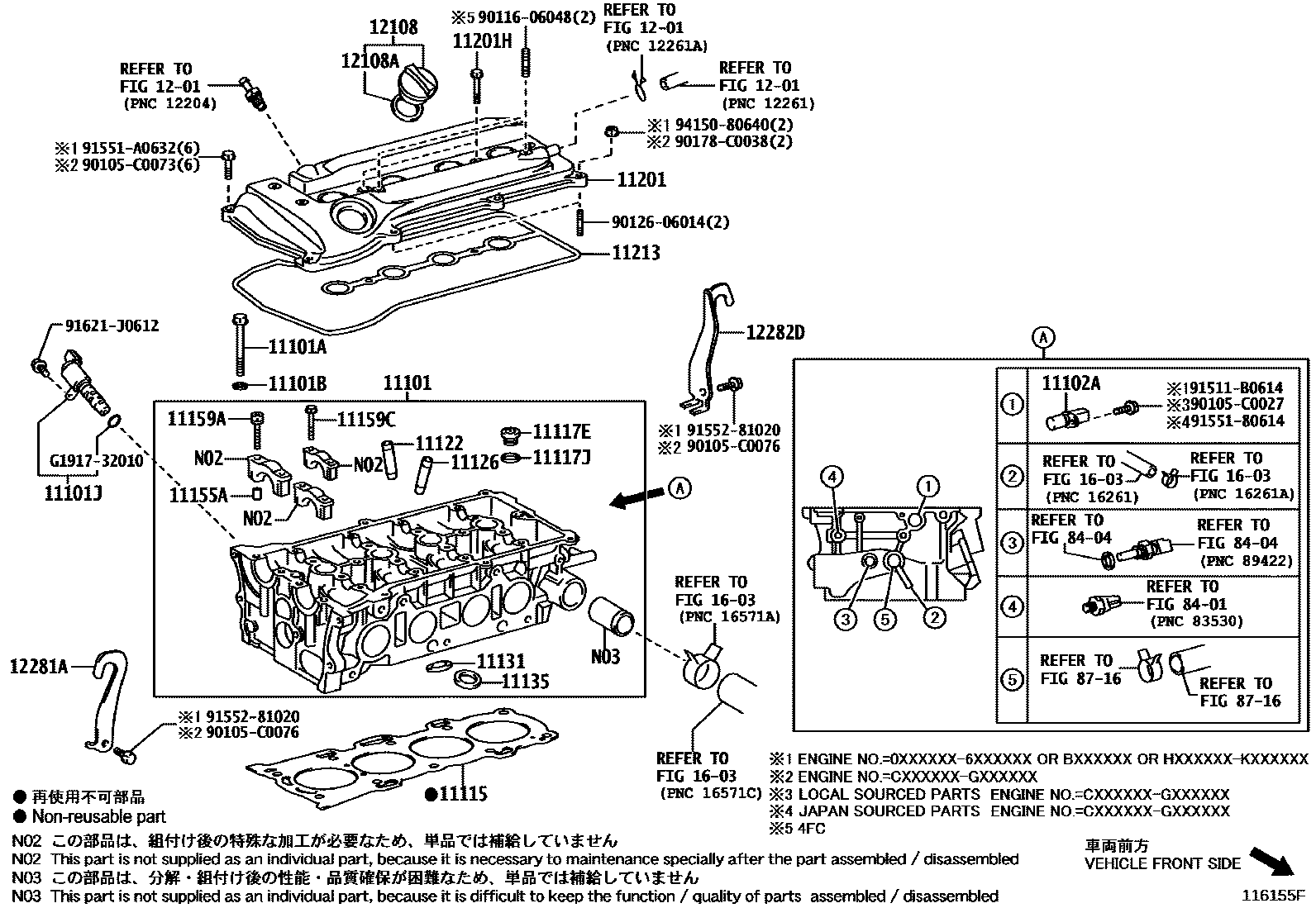

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L),*195
2AZ-FE CHINA,(L),*195
2AZ-FE CHINA,(J),*195
(J),*195
sub11101-39536
sub11101-31H00
11101ABOLT(FOR CYLINDER HEAD SET)
*195
*194
TYPE A
2AZ-FE CHINA,*195
TYPE B
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*195
*194
2AZ-FE CHINA,*195
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11102ASENSOR, CAMSHAFT POSITION
*194
*195
2AZ-FE CHINA,*195
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*195
*194
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*195
*194
11122BUSH, INTAKE VALVE GUIDE
STD,*195
STD,*194
STD,2AZ-FE CHINA,*195
O/S 0.05,*194
O/S 0.05,*195
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,*195
STD,*194
STD,2AZ-FE CHINA,*195
O/S 0.05,*195
O/S 0.05,*194
11131SEAT, INTAKE VALVE
STD,(L),*195
STD,2AZ-FE CHINA,(L),*195
STD,2AZ-FE CHINA,(J),*195
STD,*195
STD,(J),*195
STD,2AZ-FE CHINA,*195
STD,*195
O/S 0.03,(L),*195
O/S 0.03,*195
O/S 0.03,(J),*195
O/S 0.03,*195
11135SEAT, EXHAUST VALVE
STD,(L),*195
STD,2AZ-FE CHINA,(L),*195
STD,(J),*195
STD
O/S 0.03,(L),*195
O/S 0.03,(J),*195
O/S 0.03,*195
O/S 0.03
11155APIN, RING W/HEAD
(J),*195
*195
*194
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L),*195
2AZ-FE CHINA,(L),*195
2AZ-FE CHINA,(J),*195
(J),*195
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L),*195
2AZ-FE CHINA,(L),*195
(J),*195
2AZ-FE CHINA,(J),*195
11201HBOLT(FOR CYLINDER HEAD COVER)
*195
2AZ-FE CHINA,*195
11213GASKET, CYLINDER HEAD COVER
*195
(J),*194
2AZ-FE CHINA,*195
1201
12108CAP SUB-ASSY, OIL FILLER
*195
*194
2AZ-FE CHINA,*195
12108AGASKET(FOR OIL FILLER CAP)
*195
*194
2AZ-FE CHINA,*195
12282DHANGER, ENGINE, NO.2
(L),*195
2AZ-FE CHINA,(L),*195
(L),*194
(J),*195
(J),*194
1603
8401
8404
8716
90105C0027
main90105-C0027
90105C0073
main90105-C0073
90105C0076
main90105-C0076
9011606048
main90116-06048
9012606014
main90126-06014
90178C0038
main90178-C0038
91511B0614
main91511-B0614
9155180614
main91551-80614
91551A0632
main91551-A0632
9155281020
main91552-81020
91621J0612
main91621-J0612
9415080640
main94150-80640
G191732010
mainG1917-32010
41 parts on this diagram · 3 diagrams in section
