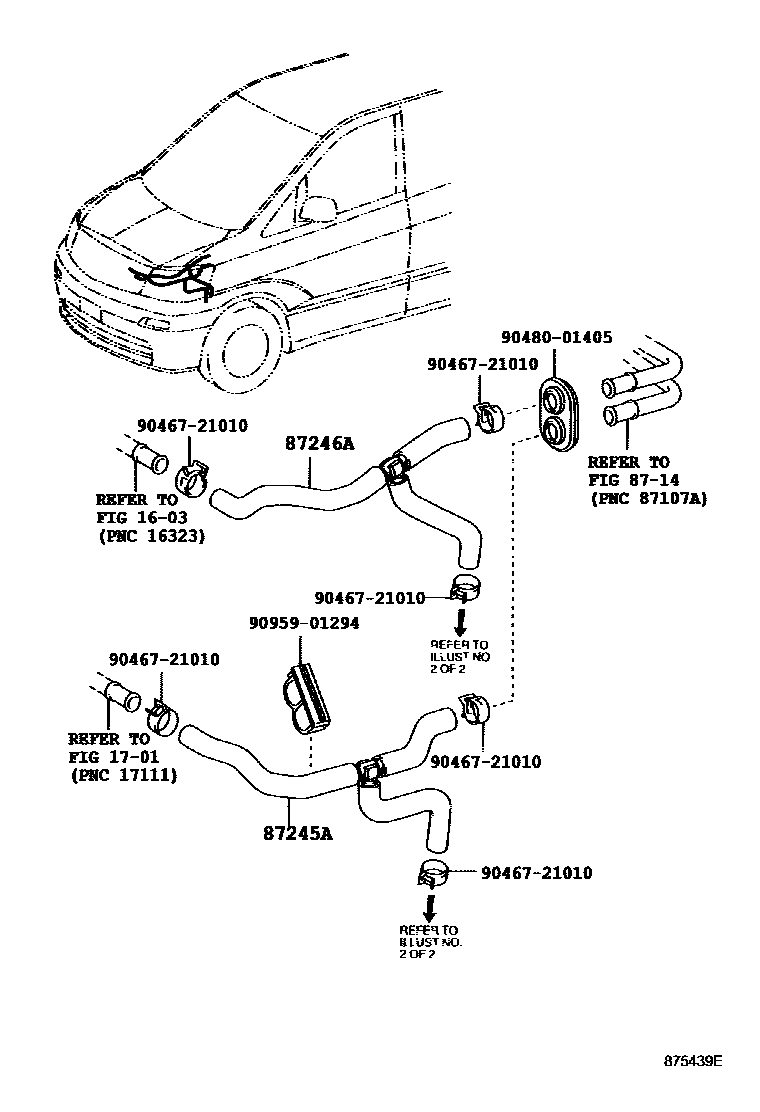

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1REAR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-58010iMNH10200312-200504

87246AHOSE, HEATER WATER, OUTLET A

main87209-58020iMNH10200312-200504

9046721010

main90467-21010

9048001405

main90480-01405

9095901294

main90959-01294

8 parts on this diagram · 2 diagrams in section
