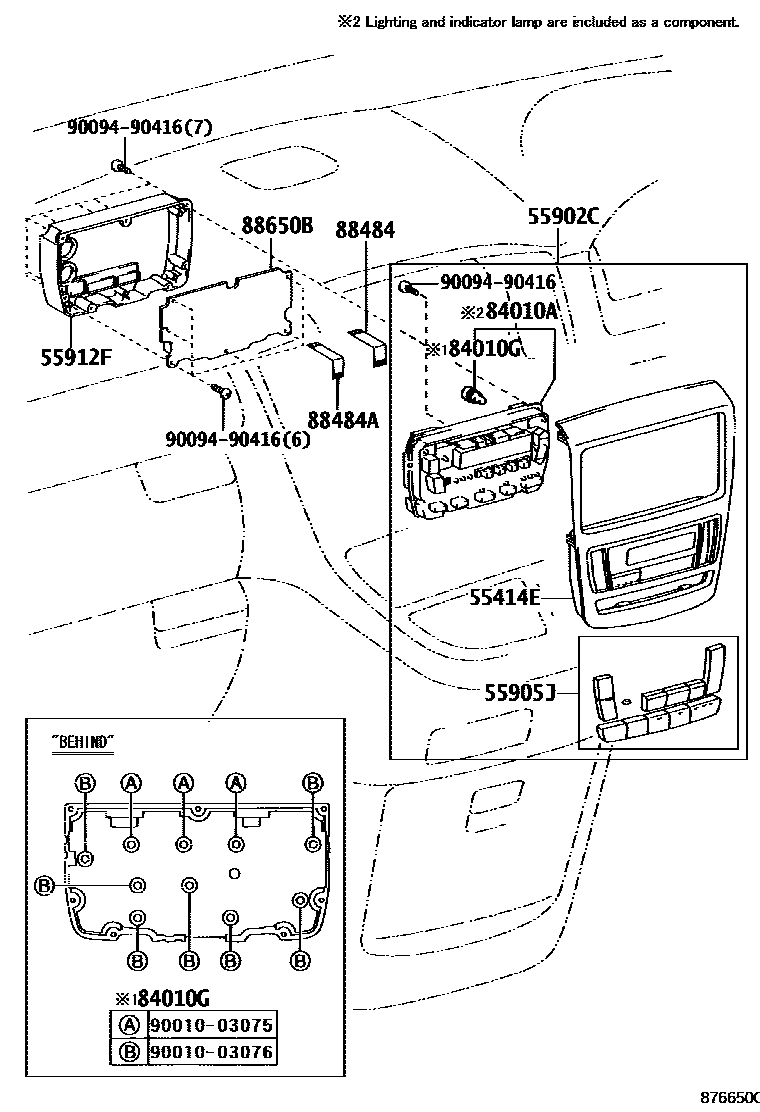

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1FRONT CONTROL 0003 1REAR CONTROL 0004 1FRONT AIR DUCT 0005 1REAR AIR DUCT 0006 1SENSOR

55414EPANEL, INSTRUMENT CLUSTER FINISH, END

main55414-58020iMNH10200312-200504

main55414-58040iMNH10200504-200508

main55414-58041iMNH10200509-200804

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-58020iMNH10..MS200312-200504

main55902-58030iMNH10..MZ200312-200504

main55902-58070iMNH10..MS200504-200508

main55902-58071iMNH10..MS200509

main55902-58080iMNH10..MZ200504-200508

main55902-58081iMNH10..MZ200509

55905JKNOB SUB-ASSY, CONTROL

main55905-58020iMNH10..MS200312-200504

main55905-58030iMNH10..MZ200312-200504

main55905-58090iMNH10..MS200504

main55905-58100iMNH10..MZ200504

55912FHOUSING, HEATER CONTROL

main55912-58040iMNH10200312-200504

main55912-58050iMNH10200504

84010ACONTROL & PANEL ASSY, INTEGRATION

main84012-58020iMNH10..MS200312-200504

main84012-58030iMNH10..MZ200312-200504

main84012-58090iMNH10..MS200504

main84012-58100iMNH10..MZ200504

84010GBULB, INTEGRATION CONTROL & PANEL

main90010-03075×3iMNH10200312-200504

14V 0.84W,TYPE A:REFER ILLUST.

main90010-03076×7iMNH10200312-200504

14V 0.84W,TYPE B:REFER ILLUST.

main90010-03078×5iMNH10200505

14V 0.84W,TYPE B:REFER ILLUST.

88484WIRE, COOLER, NO.1

main88484-58020iMNH10200312-200504

main88484-58040iMNH10200504

88484AWIRE, COOLER, NO.1

main88484-58030iMNH10200312-200504

main88484-58050iMNH10200504

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-58020iMNH10..4FC200312-200407

main88650-58021iMNH10200407-200504

main88650-58140iMNH10200504

9009490416

main90094-90416

10 parts on this diagram · 6 diagrams in section
