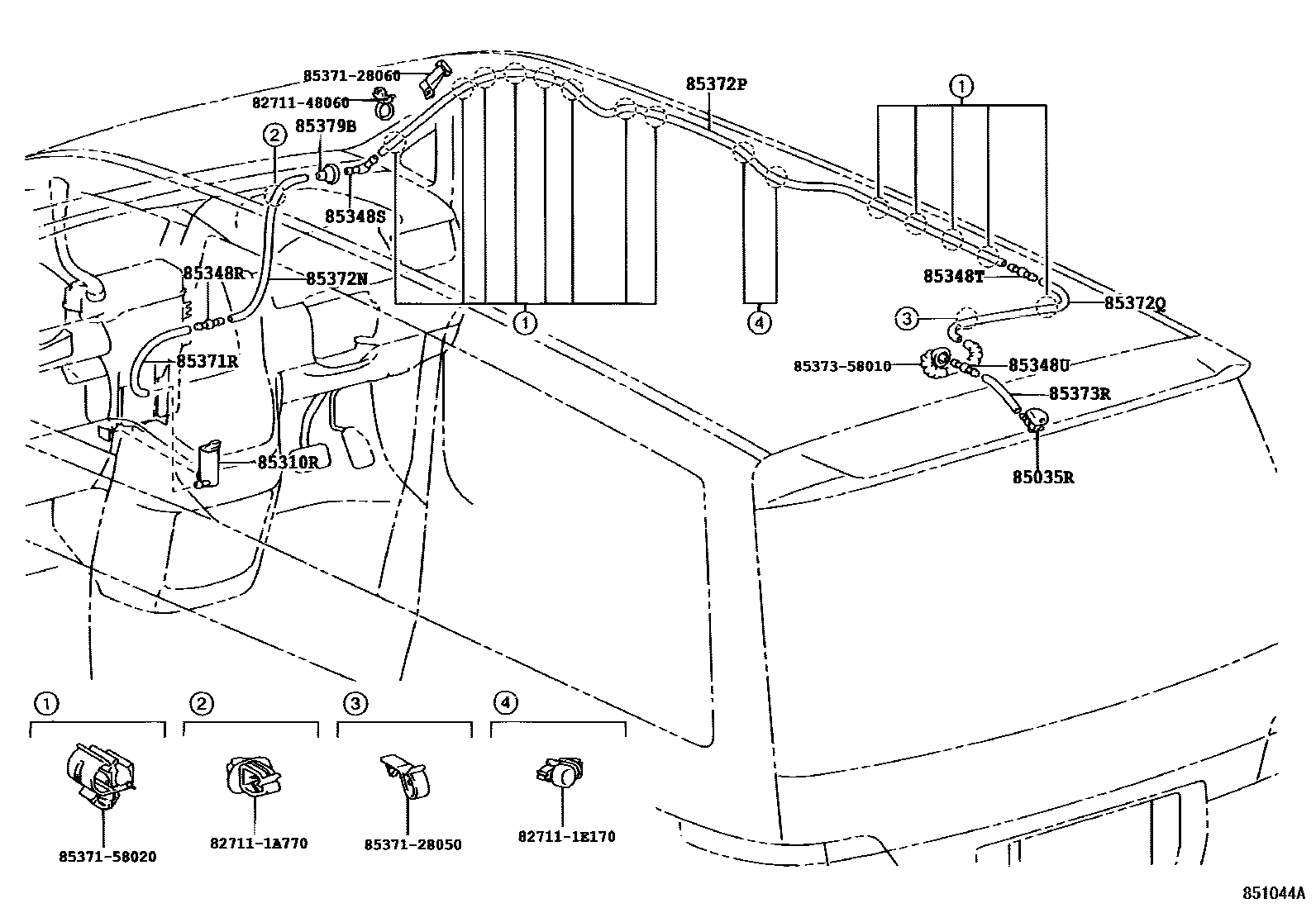

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-58010iMNH10200312-200504

85310RMOTOR ASSY, REAR WASHER

main85330-60140iMNH10200312-200504

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iMNH10200312-200504

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iMNH10200312-200504

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iMNH10200312-200504

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-10260iMNH10200312-200504

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iMNH10200312-200504

L=1450(*H,L=430)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iMNH10; MNH10..MS200312-200504

L=1800(*H,L=960); L=1800(*H,L=960),W(TWIN MOON ROOF)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33658iMNH10; MNH10..MS200312-200504

L=4985(*H,L=3680); L=4985(*H,L=3680),W(TWIN MOON ROOF)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iMNH10; MNH10..MS200312-200504

L=1000(*H,L=50); L=1000(*H,L=50),W(TWIN MOON ROOF)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iMNH10; MNH10..MS200312-200504

L=1000(*H,L=440); L=1000(*H,L=440),W(TWIN MOON ROOF)

85379BGROMMET, WASHER, A

main85379-16180iMNH10200312-200504

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E170

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

8537128050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28050

8537128060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28060

8537158020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-58020

8537358010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-58010

19 parts on this diagram · 1 diagram in section
