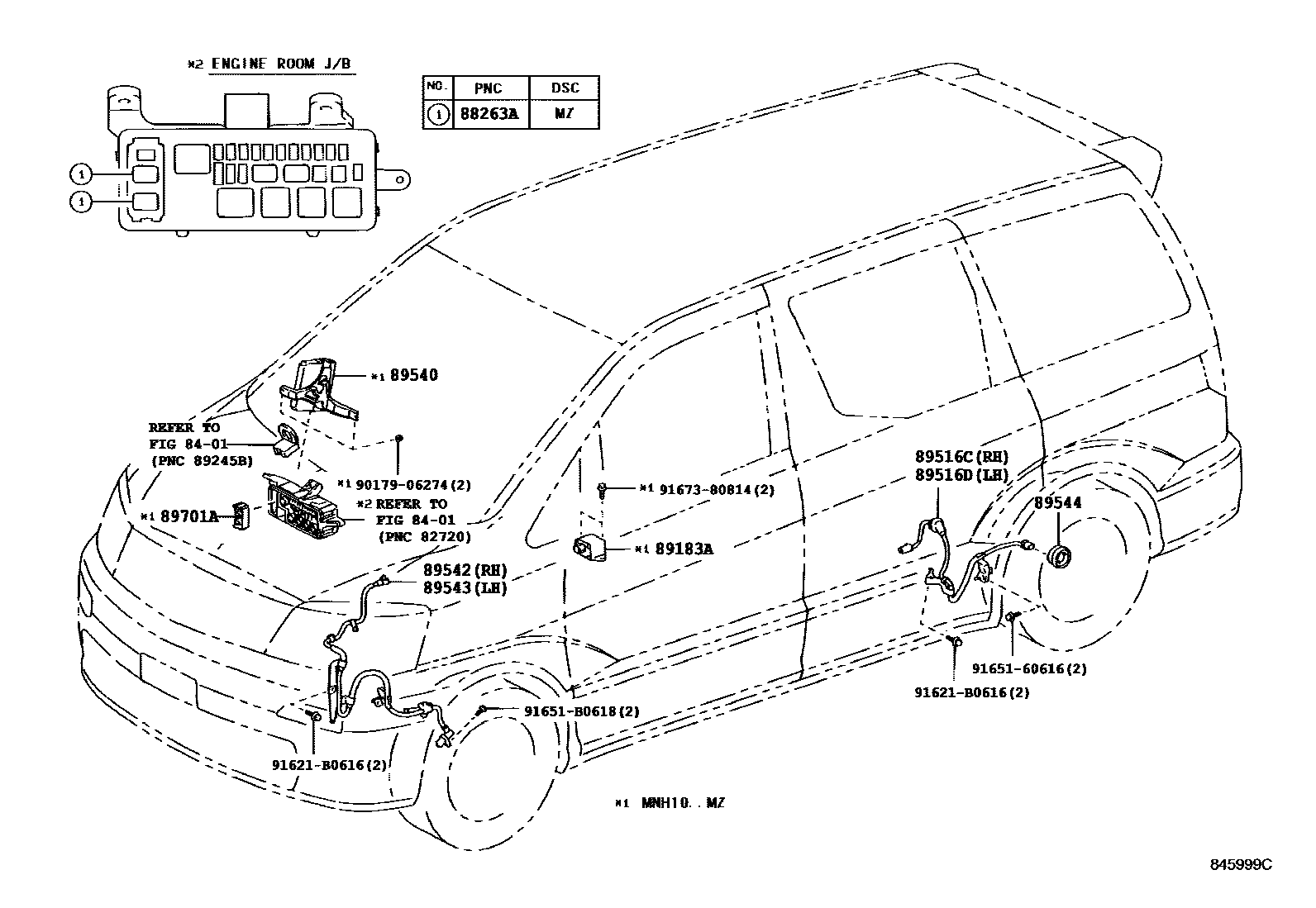

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88263ARELAY, SKID CONTROL

main88263-32070×2iMNH10..MZ200312-200504

89183ASENSOR, YAWRATE

main89183-22020iMNH10..MZ200505

main89183-60010iMNH10..MZ200312-200504

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-58030iMNH10200312-200504

main89516-58031iMNH10200706-200804

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-58020iMNH10200312-200504

89540COMPUTER ASSY, SKID CONTROL

main89540-58010iMNH10..MZ200312-200504

main89540-58040iMNH10..MZ200504

89542SENSOR, SPEED, FRONT RH

main89542-28090iMNH10200312-200504

89543SENSOR, SPEED, FRONT LH

main89543-28090iMNH10200312-200504

89544SENSOR, SKID CONTROL

main89544-20010×2iMNH10200312-200504

89701ABLOCK SUB-ASSY, ABS RELAY

main82660-20340iMNH10..MS200312-200504

main82660-58030iMNH10..MZ200312-200504

9017906274

main90179-06274

91621B0616

main91621-B0616

9165160616

main91651-60616

91651B0618

main91651-B0618

9167380814

main91673-80814

15 parts on this diagram · 1 diagram in section
