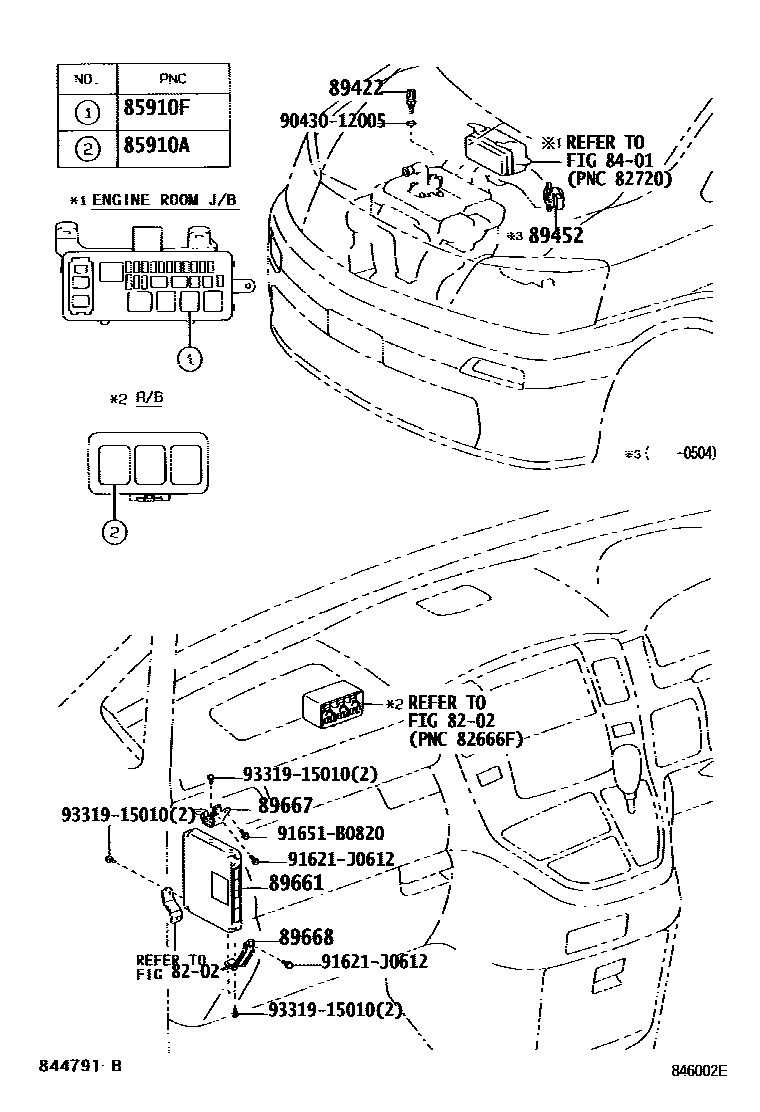

ELECTRONIC FUEL INJECTION SYSTEM

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02024iMNH10200312-200504

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iMNH10200312-200504

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMNH10200312-200504

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iMNH10200312-200504

89661COMPUTER, ENGINE CONTROL

main89661-58011iMNH10200312-200403

main89661-58012iMNH10200403-200504

main89661-58080iMNH10200504-200706

main89661-58110iMNH10200706

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-58010iMNH10200312-200504

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-58010iMNH10200312-200504

main89668-58030iMNH10200504

9043012005

main90430-12005

91621J0612

main91621-J0612

91651B0820

main91651-B0820

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
