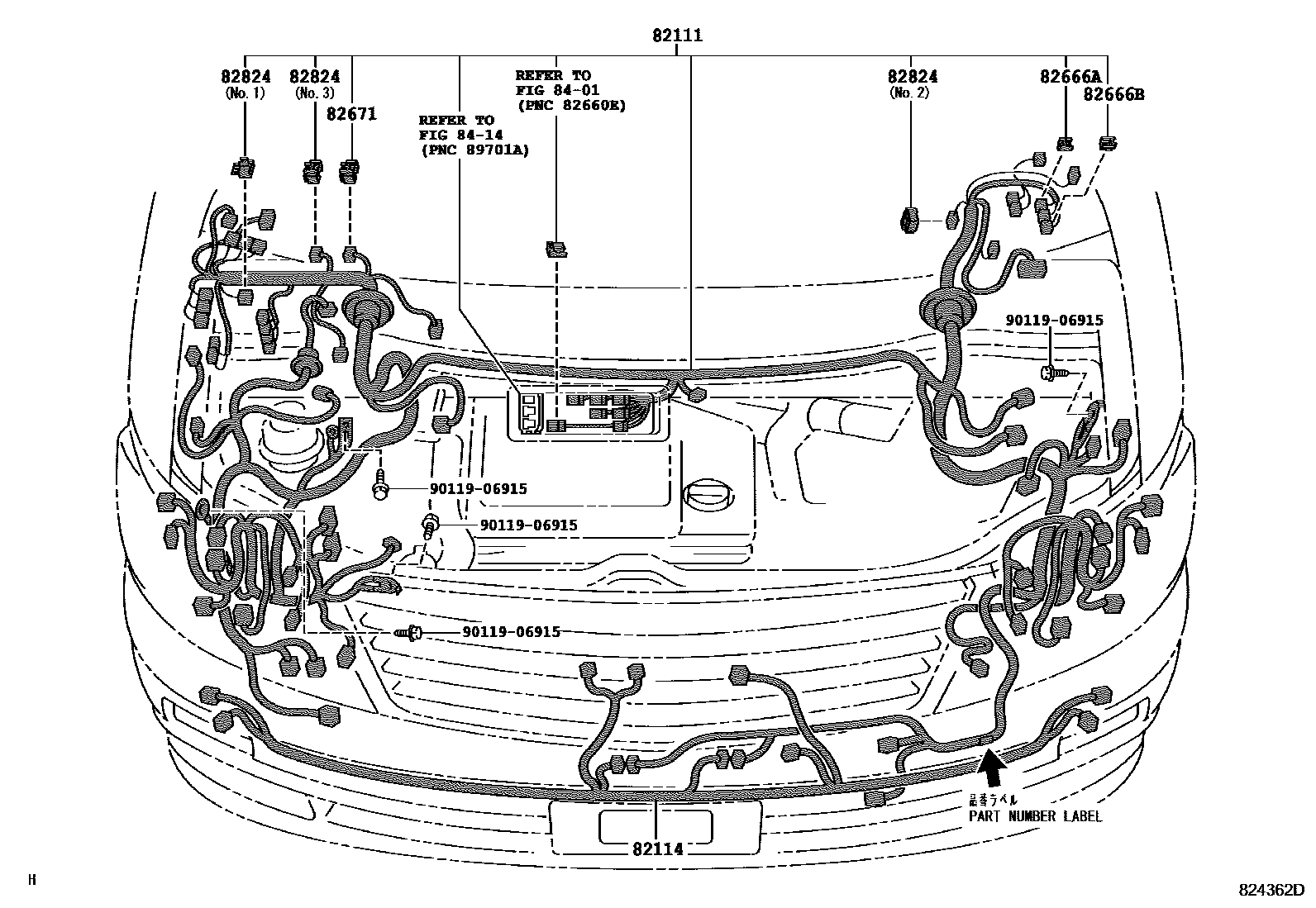

82111WIRE, ENGINE ROOM MAIN

main82111-58041iMNH10..MS200312-200504

main82111-58042iMNH10..MS200504

main82111-58051iMNH10..MZ200312-200504

main82111-58052iMNH10..MZ200504

82114WIRE, ENGINE ROOM, NO.4

main82114-58020iMNH10..MZ200312-200504

main82114-58030iMNH10..MS200312-200504

main82114-58100iMNH10..MS200504

main82114-58110iMNH10..MZ200504

82666AHOLDER, CONNECTOR NO.2

main82666-21040iMNH10200312-200504

82666BHOLDER, CONNECTOR NO.3

main82666-26080iMNH10200312-200504

82671BLOCK, JUNCTION

main82671-30340iMNH10200312-200504

E/G ROOM

main82671-44010iMNH10200706

ENGINE

main82671-58020iMNH10..MZ200607

INSTRUMENT PANEL

82824CONNECTOR, WIRING HARNESS

main82824-30130iMNH10200504

NO.1

main82824-30220iMNH10200504

NO.2

main82824-52080iMNH10200312-200504

NO.3

main82824-58030iMNH10200312-200504

NO.4

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906915

main90119-06915

9 parts on this diagram · 11 diagrams in section
