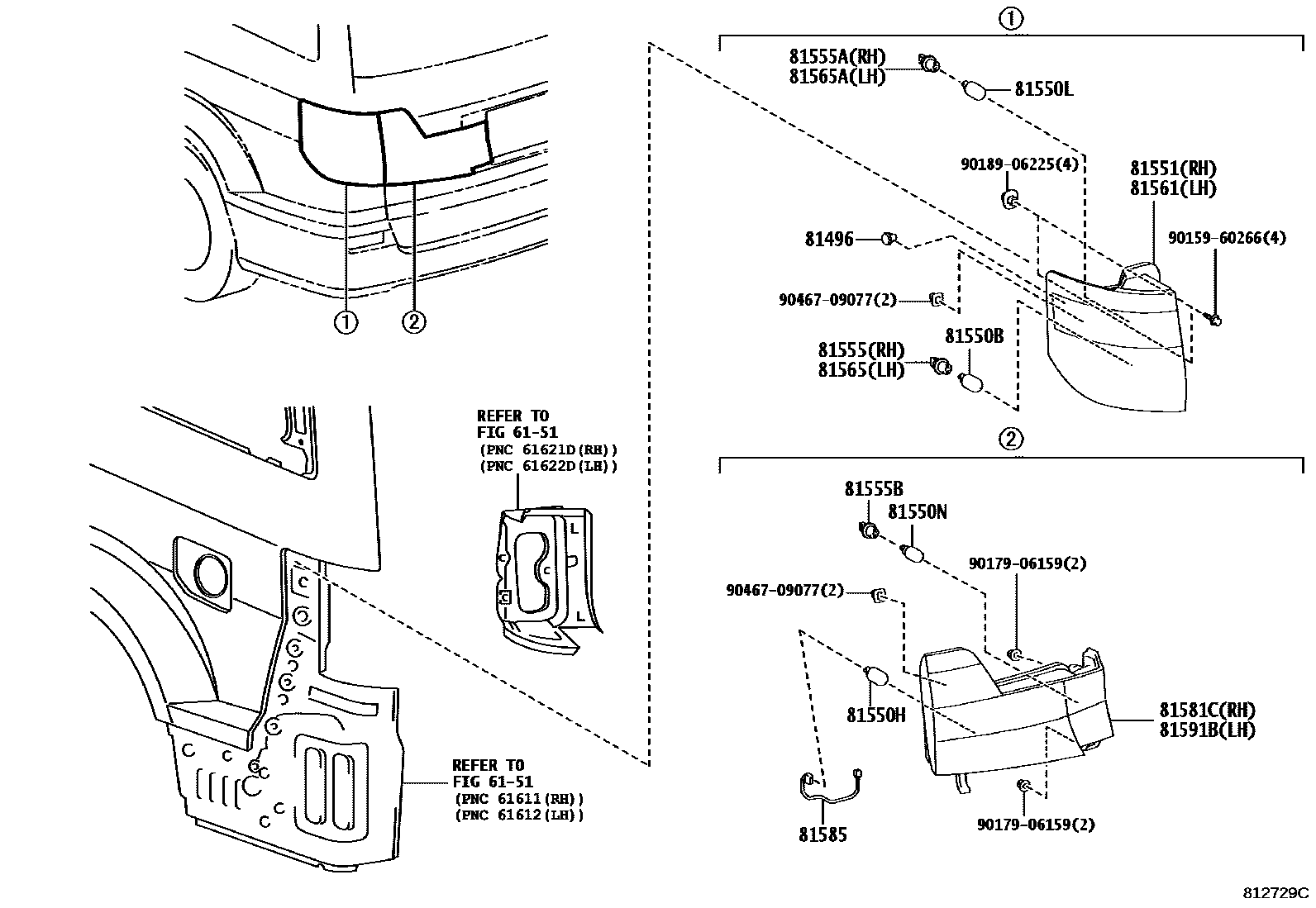

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iMNH10200312-200504

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13044iMNH10200312-200804

12V 21/5W

81550HBULB, TAIL & STOP LAMP

main90981-13044iMNH10200312-200804

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iMNH10200312-200504

main90981-15021iMNH10200504-200804

81550NBULB, BACK UP LAMP

main90981-11059iMNH10200312-200804

81551LENS, REAR COMBINATION LAMP, RH

main81551-58010iMNH10..MZ200312-200504

main81551-58020iMNH10..MS200312-200504

main81551-58040iMNH10..MZ200504

main81551-58050iMNH10..MS200504

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main90075-60002iMNH10200312-200504

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main90075-60026iMNH10200312-200504

81555BSOCKET PLUG, NO.1

main90075-99005iMNH10200312-200504

81561LENS, REAR COMBINATION LAMP, LH

main81561-58010iMNH10..MZ200312-200504

main81561-58020iMNH10..MS200312-200504

main81561-58040iMNH10..MZ200504

main81561-58050iMNH10..MS200504

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main90075-60002iMNH10200312-200504

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main90075-60026iMNH10200312-200504

81581CLENS AND BODY, REAR LAMP, RH

main81581-58010iMNH10..MZ200312-200504

main81581-58030iMNH10..MS200312-200504

main81581-58070iMNH10..MZ200504

main81581-58090iMNH10..MS200504

81585SOCKET & WIRE, REAR LAMP

main81585-58010iMNH10200312-200504

main81585-58070iMNH10200504

81591BLENS AND BODY, REAR LAMP, LH

main81591-58010iMNH10..MZ200312-200504

main81591-58030iMNH10..MS200312-200504

main81591-58070iMNH10..MZ200504

main81591-58090iMNH10..MS200504

9015960266

main90159-60266

9017906159

main90179-06159

9018906225

main90189-06225

9046709077

main90467-09077

20 parts on this diagram · 2 diagrams in section
