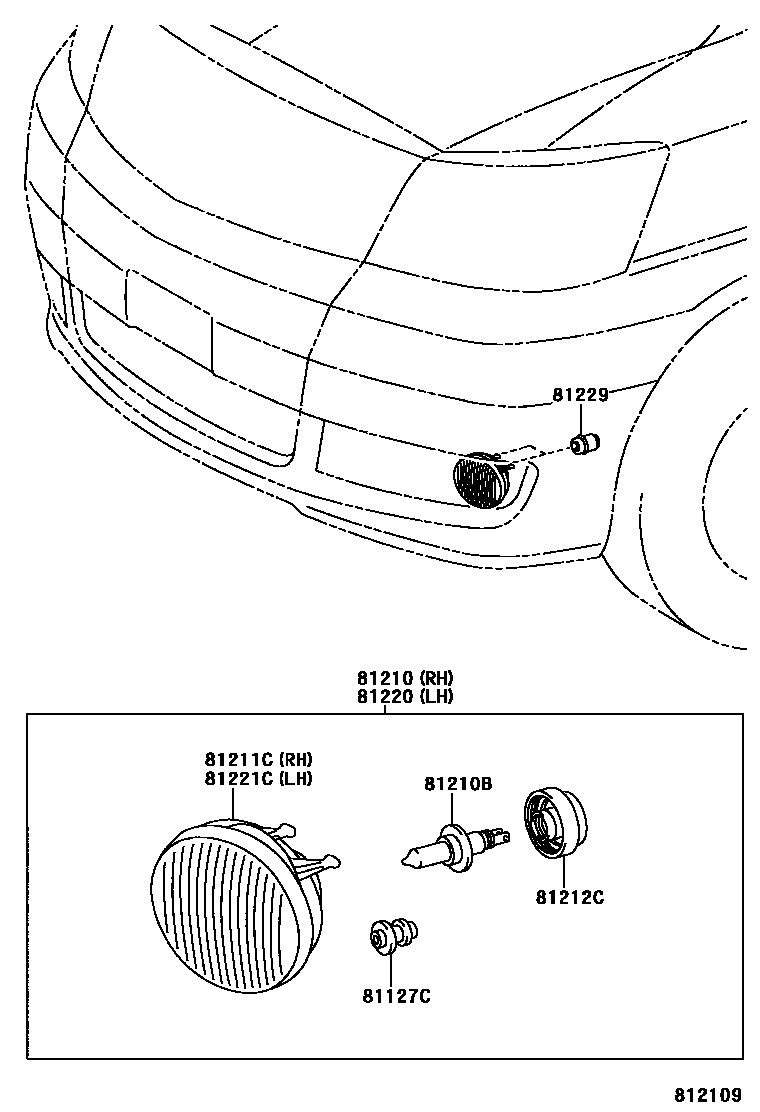

FOG LAMP

0001 1 0002 1 0003 1 0004 1

81127CBEARING FOG LAMP

main90075-10811×2iMNH10..MS200312-200504

81210LAMP ASSY, FOG

main81210-13040iMNH10..MS200312-200504

main81210-28210iMNH10..MZ200504

main81210-42050iMNH10..MS200504

main81210-58031iMNH10..MZ200312-200504

81210BBULB, FOG LAMP

main90981-13047×2iMNH10200504

12V 51W,HALOGEN

main90981-13057×2iMNH10..MS200312-200504

12V 35W

main90981-13071×2iMNH10..MZ200312-200504

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-13040iMNH10..MS200312-200504

main81211-28210iMNH10..MZ200504

main81211-42050iMNH10..MS200504

main81211-58031iMNH10..MZ200312-200504

81212CCOVER, FOG LAMP

main90075-65003×2iMNH10..MS200312-200504

81220LAMP ASSY, FOG, LH

main81220-13040iMNH10..MS200312-200504

main81220-28110iMNH10..MZ200504

main81220-42050iMNH10..MS200504

main81220-58031iMNH10..MZ200312-200504

81221CLAMP UNIT, FOG LAMP, LH

main81221-13040iMNH10..MS200312-200504

main81221-28110iMNH10..MZ200504

main81221-42050iMNH10..MS200504

main81221-58031iMNH10..MZ200312-200504

81229BRACKET, FOG LAMP

main81481-10030×4iMNH10..MS200312-200504

8 parts on this diagram · 4 diagrams in section
