71075HCLIP(FOR REAR SEAT)

main71236-28030×4i200403-200504

main90467-07090-A0×4i200312-200402

IVORY,TRIM0#

main90467-07090-B6×4i200312-200402

STONE,TRIM1#

71130CCLIP, REAR SEAT LEG

main90467-05020-A4×20i200504-200804

IVORY,TRIM0#

main90467-05020-P2×20i200504-200804

STONE,TRIM1#

71461DSPRING, NO.1 SEAT CUSHION, NO.1(FOR RH SEAT)

main71461-28090i200312-200504

71499SDAMPER, SEAT CUSHION SPRING

main71499-28030×2i200312-200504

TYPE A:REFER ILLUST.

main71499-58010×2i200312-200504

TYPE B:REFER ILLUST.

7152SEAT BELT

→ Go to FIG 71-52

71537TPROTECTOR, REAR SEAT CUSHION, NO.1

main71537-28070×2i200312-200504

71628BSPACER, REAR SEAT CUSHION, RH

main71628-28020×2i200312-200504

71833SCOVER, REAR SEAT RECLINING, NO.1 RH

main71811-58050-A0i200504-200804

IVORY,TRIM0#

main71811-58050-B0i200312-200504

DK.GRAY,TRIM1#

71834SCOVER, REAR SEAT RECLINING, NO.1 LH

main71812-58050-B0i200504-200804

DK.GRAY,TRIM1#

main71812-58060-A0i200312-200504

IVORY,TRIM0#

71875XCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-28040-A0×2i200312-200504

IVORY,TRIM0#

main71875-28040-B2×2i200312-200504

DK.GRAY,TRIM1#

71930QSUPPORT ASSY, REAR SEAT HEADREST

main71930-42020-A0×2i200312-200504

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-42020-B4×2i200312-200504

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

main71930-52030-A0×2i200706-200804

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-B0×2i200706-200804

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

main71931-42020-A0×2i200504-200804

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-B4×2i200504-200804

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

71940MHEADREST ASSY, REAR SEAT

main71910-58020-A0×2i200312-200504

IVORY,TRIM0#

main71910-58020-C0×2i200504-200804

BLACK,TRIM1#

71T76BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-28040-A0i200312-200504

IVORY,TRIM0#

main71876-28040-B2i200312-200504

DK.GRAY,TRIM1#

72201EHANDLE SUB-ASSY, SEAT TRACK RH

main72201-28130i200312-200504

72201GHANDLE SUB-ASSY, SEAT TRACK, RH

main72201-58010i200312-200504

72213KKNOB, SEAT TRACK ADJUSTING HANDLE, RH

main72213-28060-A0i200312-200504

IVORY,TRIM0#

main72213-28060-B2i200312-200504

DK.GRAY,TRIM1#

72302EWIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING

main72312-58030×2i200312-200504

72525NHANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

main72525-44010-A1i200312-200504

IVORY,TRIM0#

main72525-44010-B4i200312-200504

DK.GRAY,TRIM1#

72658GKNOB, REAR SEAT LOCK HANDLE, RH

main72658-28030-A0i200312-200504

IVORY,TRIM0#

main72658-28030-B3i200312-200504

STONE,TRIM1#

72830UARMREST ASSY, REAR SEAT, RH

main72890-58121-A0i200312-200504

IVORY,TRIM0#

main72890-58121-C0i200504-200804

BLACK,TRIM1#

72830VARMREST ASSY, REAR NO.1 SEAT, RH

main72880-58111-A0i200504-200804

IVORY,TRIM0#

main72880-58111-C0i200312-200504

BLACK,TRIM1#

78067ABRACKET SUB-ASSY, REAR SEAT LEGREST, OUTER(FOR RH SEAT)

main78067-28010i200312-200504

78631BTABLE, REAR SEAT SIDE

main78060-58010-A0i200312-200504

IVORY,TRIM0#

main78060-58020-A0i200504-200804

IVORY,TRIM0#

78656JCOVER, REAR SEAT LEGREST, RH

main78656-28020-A0i200504-200804

IVORY,TRIM0#,FRONT LH

main78656-28020-B3i200504-200804

STONE,TRIM1#,FRONT LH

main78656-28030-A0i200504-200804

IVORY,TRIM0#,REAR LH

main78656-28030-B3i200504-200804

STONE,TRIM1#,REAR LH

main78656-28050-A0i200504-200804

IVORY,TRIM0#,FRONT RH

main78656-28050-B3i200312-200504

STONE,TRIM1#,FRONT

main78656-28060-A0i200504-200804

IVORY,TRIM0#,REAR RH

main78656-28060-B3i200312-200504

STONE,TRIM1#,REAR

78980DFOOTREST ASSY, REAR SEAT, NO.1

main78980-28010-A0×2i200312-200504

IVORY,TRIM0#

main78980-28010-B4×2i200504-200804

DK.GRAY,TRIM1#

78980EFOOTREST ASSY, REAR SEAT, NO.2

main78980-58010-A0×2i200312-200504

IVORY,TRIM0#

main78980-58010-C0×2i200312-200504

BLACK,TRIM1#

78987CCOVER, REAR NO.1 SEAT FOOTREST, NO.1 RH

main78987-28010-A0×2i200312-200504

IVORY,TRIM0#

main78987-28010-B4×4i200504-200804

DK.GRAY,TRIM1#

79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-58040-A1i200504-200804

IVORY,TRIM0#

main79011-58040-C0i200504-200804

BLACK,TRIM1#

79013DCOVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-58250-A0i200504-200706

IVORY,TRIM0#

main79013-58250-C0i200312-200504

BLACK,TRIM1#

main79013-58251-A0i200706-200804

IVORY,TRIM0#

main79013-58251-C0i200706-200804

BLACK,TRIM1#

79101CFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-58010i200312-200504

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-58030i200312-200504

main79103-58031i200706-200804

79135CPAD, NO.1 SEAT CUSHION, RH

main79135-58030i200312-200504

79175FPAD, NO.1 SEATBACK, RH

main79175-58030i200504-200706

main79175-58031i200706-200804

79937CCOVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)

main79937-28050-A0×4i200504-200804

IVORY,TRIM0#

main79937-28050-B2×2i200312-200504

STONE,TRIM1#

79937HCOVER, REAR SEAT LEG, NO.2

main79937-58010-A0×2i200312-200504

IVORY,TRIM0#

main79937-58010-B0×2i200312-200504

STONE,TRIM1#

79956VCOVER, REAR SEAT LEG SIDE, RH

main79966-58010-A0i200312-200504

IVORY,TRIM0#

main79966-58010-B0i200312-200504

STONE,TRIM1#

79956XCAP(FOR REAR SEAT LEG SIDE COVER)

main90339-10001-A0×4i200312-200504

IVORY,TRIM0#

main90339-10001-P7×4i200312-200504

STONE,TRIM1#

79959SCOVER, REAR SEAT LEG, RH

main79965-58010-A0i200504-200804

IVORY,TRIM0#

main79965-58010-B0i200504-200804

STONE,TRIM1#

79966KCOVER, REAR SEAT LEG, RH(FOR RH SEAT)

main79968-58010-A0i200504-200804

IVORY,TRIM0#

main79968-58010-B0i200312-200504

STONE,TRIM1#

79966LCOVER, REAR SEAT LEG, LH(FOR RH SEAT)

main79969-58010-A0i200312-200504

IVORY,TRIM0#

main79969-58010-B0i200312-200504

STONE,TRIM1#

7218928010

main72189-28010

7270228070BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28070

9010908290

main90109-08290

9010908291

main90109-08291

9011910911

main90119-10911

9014940012

main90149-40012

9016740044

main90167-40044

9020612003

main90206-12003

9038912019

main90389-12019

9050610040

main90506-10040

9050710023

main90507-10023

9090506070

main90905-06070

9151581025

main91515-81025

91611B0614

main91611-B0614

9164180818

main91641-80818

9164580816

main91645-80816

9418560800

main94185-60800

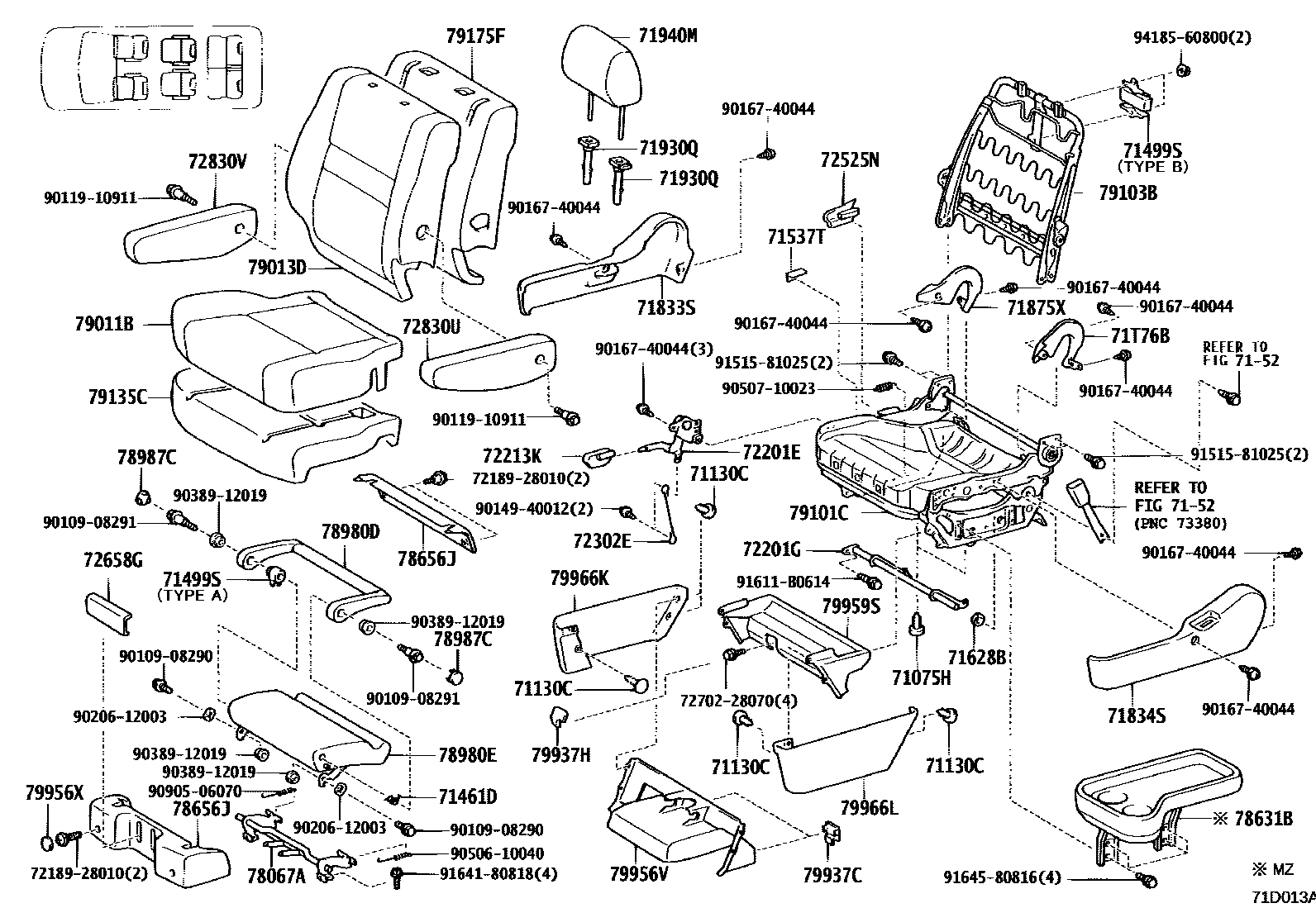

REAR SEAT & SEAT TRACK
