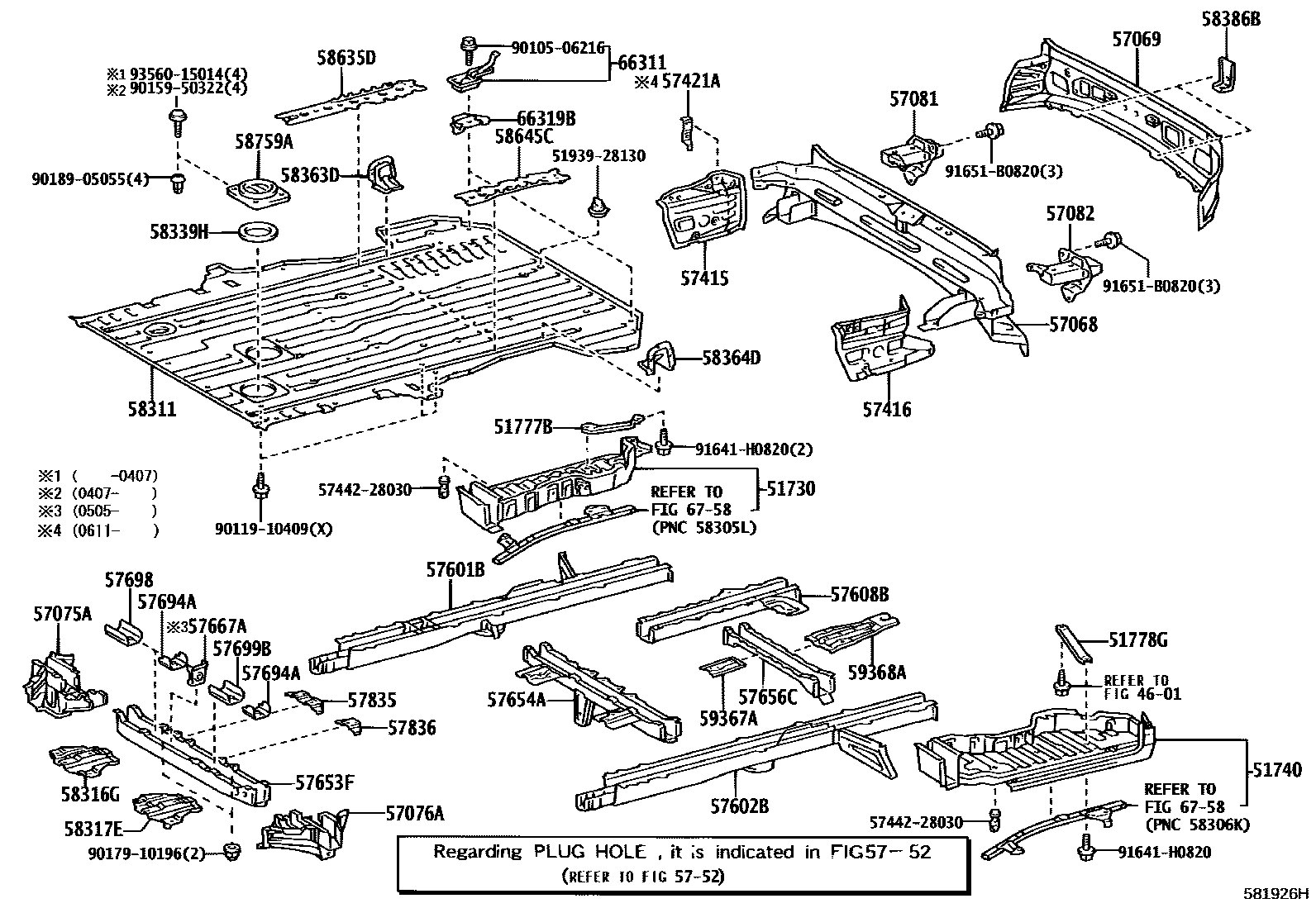

REAR FLOOR PANEL & REAR FLOOR MEMBER

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

51730STEP ASSY, REAR FLOOR, RH

main51730-58023supersedes 51730-58013iMNH10..MS; MNH10..MZ200312-200504

SRS AIR BAG-SIDE & CURTAIN

51740STEP ASSY, REAR FLOOR, LH

main51740-58020supersedes 51740-58010iMNH10..MS; MNH10..MZ200312-200504

SRS AIR BAG-SIDE & CURTAIN

51777BSTAY, STEP PLATE

main51777-58010iMNH10200312-200504

51778GSTAY, STEP PLATE, LH

main51778-58010iMNH10200312-200504

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-58020iMNH10200312-200504

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-58010iMNH10200312-200504

57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH

main57075-58010iMNH10200312-200504

57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH

main57076-58010iMNH10200312-200504

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57081-58010iMNH10200312-200504

57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main57082-58010iMNH10200312-200504

57415RAIL, FLOOR SIDE, REAR RH

main57415-58010iMNH10200312-200504

57416RAIL, FLOOR SIDE, REAR LH

main57416-58010iMNH10200312-200504

57421APLATE, FLOOR SIDE RAIL, RH

main57421-58010iMNH10200611

5752HOLE PLUG

→ Go to FIG 57-52

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-58020iMNH10200312-200504

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-58020iMNH10200312-200504

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-58010iMNH10200312-200504

57653FMEMBER, REAR FLOOR CROSS, NO.2

main57653-28120iMNH10200312-200504

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57607-58011iMNH10..4FC200312-200408

main57607-58012iMNH10200408-200504

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-58010iMNH10200312-200504

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-58010iMNH10200505

57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2

main57694-28020×2iMNH10200312-200504

57698REINFORCEMENT, FUEL TANK

main57698-28010iMNH10200312-200504

57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3

main57699-28010iMNH10200312-200504

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-28100iMNH10200312-200504

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-28070iMNH10200312-200504

58311PAN, REAR FLOOR

main58311-58021iMNH10200312-200504

58316GRETAINER, REAR SEAT, NO.1

main58316-58021iMNH10200312-200504

58317ERETAINER, REAR SEAT, NO.2

main58317-58021iMNH10200312-200504

58339HPACKING, REAR FLOOR SERVICE HOLE

main58337-28010iMNH10200312-200504

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-58010iMNH10200312-200504

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-58010iMNH10200312-200504

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28010×2iMNH10200312-200504

58635DPLATE, REAR FLOOR, CENTER UPPER NO.1 RH

main58635-58010iMNH10200312-200504

58645CPLATE, REAR FLOOR, CENTER UPPER NO.1 LH

main58645-58010iMNH10200312-200504

58759ACOVER, FUEL TANK INSPECTION HOLE

main58759-58010iMNH10..4FC200312-200407

main58759-58011iMNH10200407-200504

59367ARETAINER, REAR SEAT, NO.4

main59375-58010iMNH10200312-200504

59368ARETAINER, REAR SEAT, NO.2

main59385-58010iMNH10200504

66311HOOK, ROPE

main66310-58011-A0×2iMNH10..MZ200504-200804

IVORY,TRIM0#

main66310-58011-B0×2iMNH10..MS200312-200504

STONE,TRIM1#

66319BBRACKET, ROPE HOOK

main66319-58010×2iMNH10200312-200504

6758SLIDE ROLLER & RAIL

→ Go to FIG 67-58

5193928130CUP, SPARE TIRE CARRIER WINCH

main51939-28130

5744228030PLUG, STEP PANEL HOLE

main57442-28030

9010506216

main90105-06216

9011910409

main90119-10409

9015950322

main90159-50322

9017910196

main90179-10196

9018905055

main90189-05055

91641H0820

main91641-H0820

91651B0820

main91651-B0820

9356015014

main93560-15014

52 parts on this diagram · 1 diagram in section
