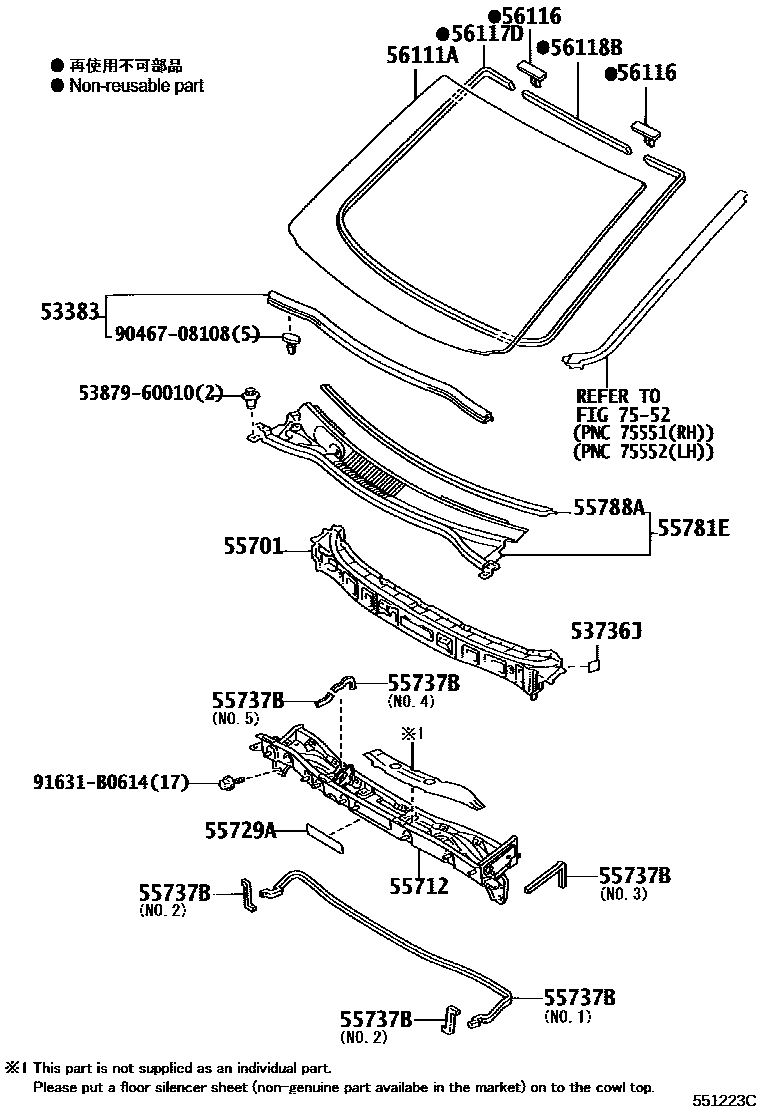

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-58010iMNH10200312-200504

53736JSEAL, FENDER APRON

main53736-58010iMNH10200312-200504

55701PANEL SUB-ASSY, COWL

main55700-58010iMNH10200312-200504

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-58011iMNH10200504

55729ACOVER, COWL PANEL HOLE

main55729-28010iMNH10200312-200504

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-58010iMNH10200312-200504

NO.1

main55737-58020×2iMNH10200312-200504

NO.2

main55737-58030iMNH10200504-200804

NO.3

main55737-58040iMNH10200312-200504

NO.4

main55737-58050iMNH10200312-200504

NO.5

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-58010iMNH10200504

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-58010iMNH10200312-200504

56111AGLASS, WINDSHIELD

main56101-58090iMNH10..MS200312-200504

*TL,T=4.76,GREEN

main56101-58100iMNH10..MZ200312-200504

*TL,T=4.76,GREEN

56116SPACER, WINDSHIELD GLASS

main56116-35050×2iMNH10200312-200504

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-58010iMNH10200312-200504

L=3734

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-58010iMNH10200312-200504

L=782

7552MOULDING

→ Go to FIG 75-52

5387960010LINER, FRONT FENDER, LH

main53879-60010

9046708108

main90467-08108

91631B0614

main91631-B0614

16 parts on this diagram · 1 diagram in section
