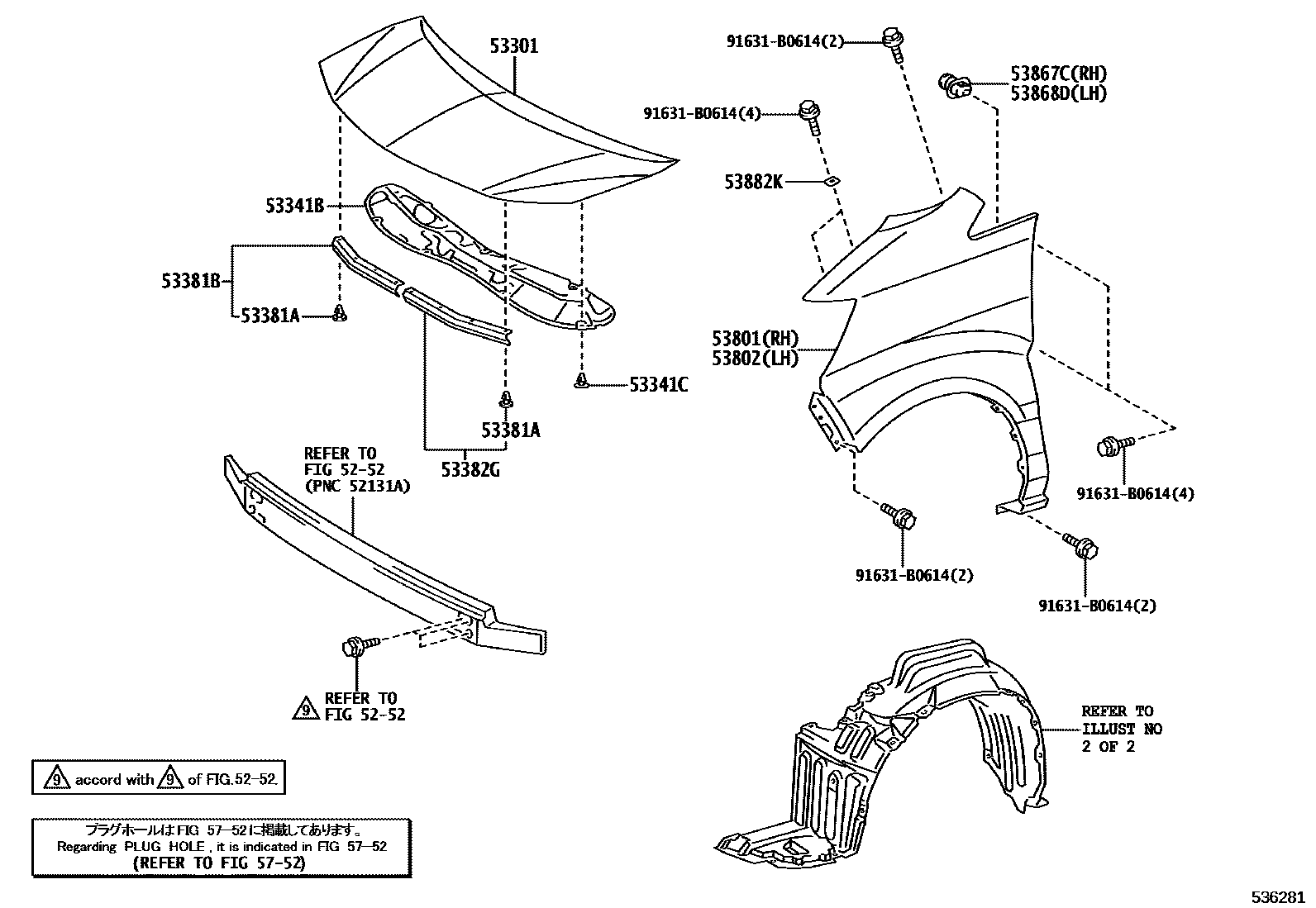

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53301HOOD SUB-ASSY

main53301-58010iMNH10200312-200504

53341BINSULATOR, HOOD

main53341-58010iMNH10200312-200504

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×7iMNH10200312-200504

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iMNH10200312-200504

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-58010iMNH10200312-200504

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53381-58020iMNH10200312-200504

53801FENDER SUB-ASSY, FRONT RH

main53811-58010iMNH10..MZ200312-200504

main53811-58020iMNH10..MS200504

53802FENDER SUB-ASSY, FRONT LH

main53802-58010iMNH10..MZ200504

main53802-58020iMNH10..MS200504

main53812-58010iMNH10..MZ200312-200504

main53812-58020iMNH10..MS200312-200504

53867CRETAINER, FRONT SIDE PANEL, RH

main53867-58030iMNH10200312-200504

53868DRETAINER, FRONT SIDE PANEL, LH

main53867-58030iMNH10200312-200504

53882KSEAL, FRONT FENDER

main53882-26010×4iMNH10200312-200504

5752HOLE PLUG

→ Go to FIG 57-52

91631B0614

main91631-B0614

14 parts on this diagram · 4 diagrams in section
