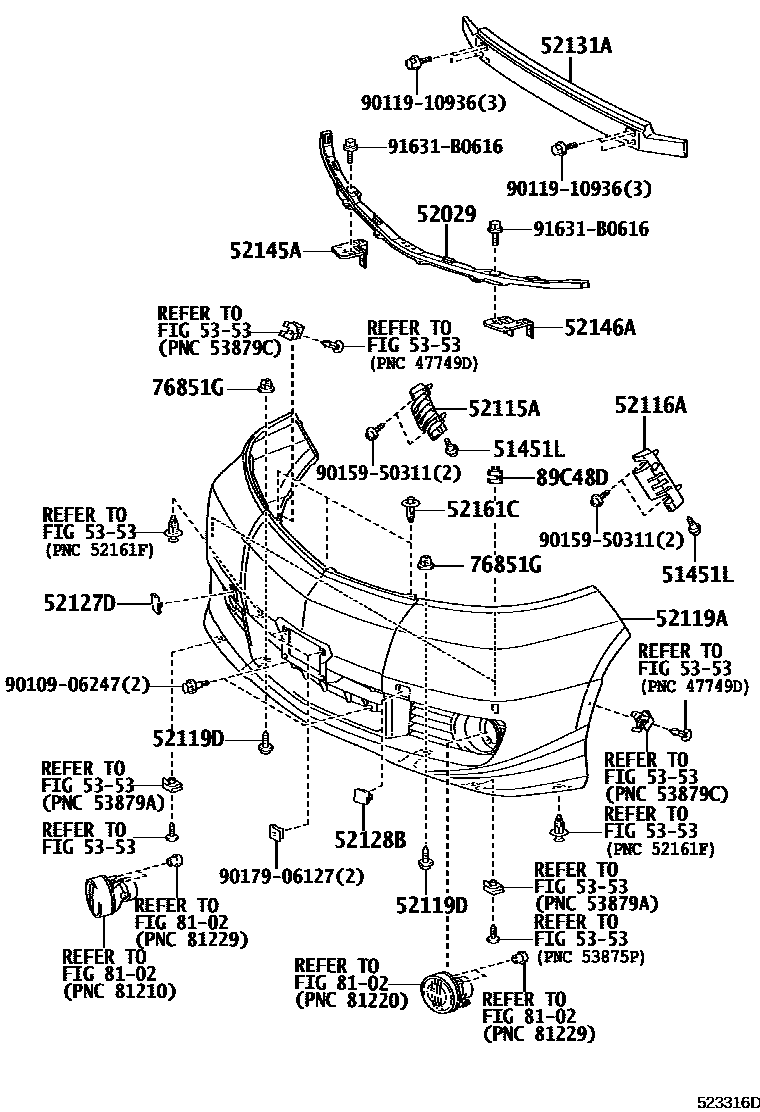

FRONT BUMPER & BUMPER STAY
51451LBOLT, NO.1
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
WHITE PM.,042
SILVER ME.,1C0
GRACEFUL PEARL TONIN,2JD
BLACK MC.,209
BORDEAUX MC.,1C0 ,3P2
GOLD ME.,2JD ,593
LT. GREEN M.M.,209 ,6T2
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
52119DSCREW, NO.1
52127DCOVER, FRONT BUMPER HOLE, RH
WHITE PM.,042 ,3P2
SILVER ME.,1C0 ,593
BLACK MC.,042 ,209
BORDEAUX MC.,1C0 ,3P2
SHELL ME.,2JD
GOLD ME.,2JD ,593
LT. GREEN M.M.,209 ,6T2
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
GOLD ME.,593
DK.BLUE MC.,8K8
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1E4
SILVER ME.,1F7
BLACK MC.,209
DK.BLUE MC.,8K8
52128BCOVER, FRONT BUMPER HOLE, LH
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
BORDEAUX MC.,3P2
SHELL ME.,2JD
GOLD ME.,593
LT. GREEN M.M.,6T2
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
GOLD ME.,593
DK.BLUE MC.,8K8
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1E4
SILVER ME.,1F7
BLACK MC.,209
DK.BLUE MC.,8K8
52131AREINFORCEMENT, FRONT BUMPER
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52161CPIECE, FRONT BUMPER
5353HOOD & FRONT FENDER
76851GGROMMET, SCREW, NO.1
8102FOG LAMP
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
9010906247
main90109-06247
9011910936
main90119-10936
9015950311
main90159-50311
9017906127
main90179-06127
91631B0616
main91631-B0616
21 parts on this diagram · 4 diagrams in section
