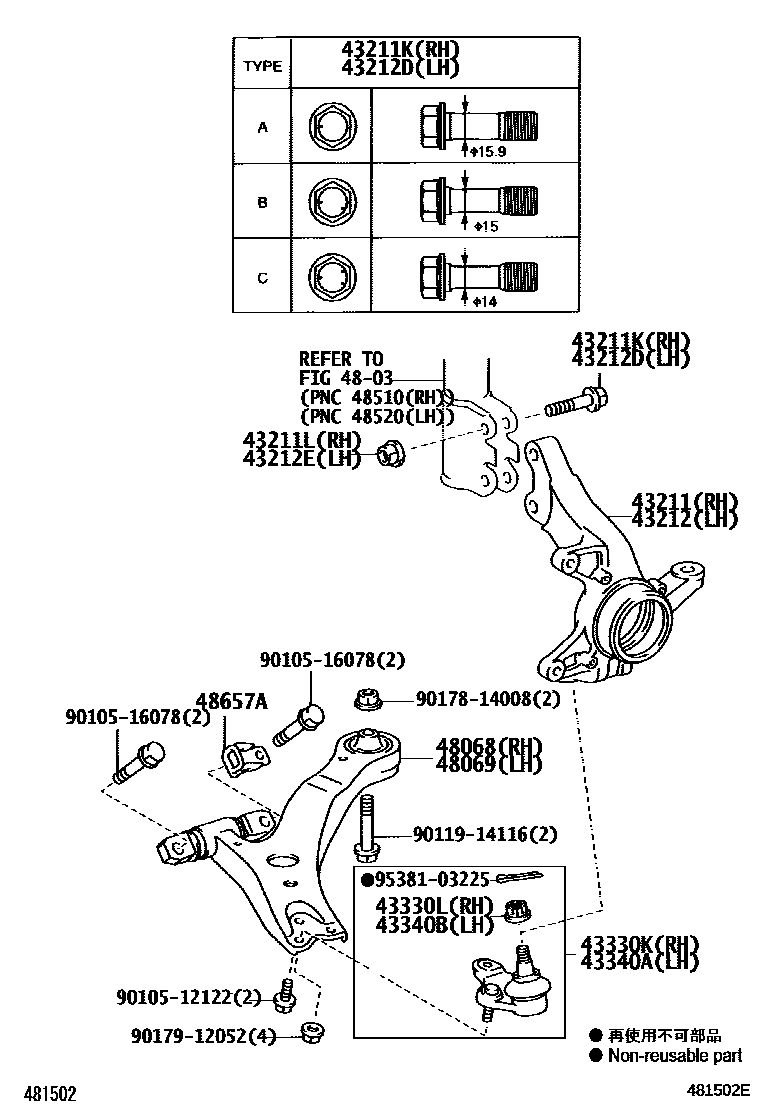

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-58010iMNH10200312-200504

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009×2iMNH10200504

OD=15.9

main90105-17010iMNH10200504

OD=15

main90105-17011iMNH10200312-200504

OD=14

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iMNH10200312-200504

43212KNUCKLE, STEERING, LH

main43212-58010iMNH10200312-200504

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009×2iMNH10200504

OD=15.9

main90105-17010iMNH10200312-200504

OD=15

main90105-17011iMNH10200504

OD=14

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iMNH10200312-200504

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iMNH10200312-200504

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMNH10200312-200504

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iMNH10200312-200504

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMNH10200312-200504

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-58010iMNH10200312-200504

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-58010iMNH10200312-200504

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010×2iMNH10200312-200504

9010512122

main90105-12122

9010516078

main90105-16078

9011914116

main90119-14116

9017814008

main90178-14008

9017912052

main90179-12052

9538103225

main95381-03225

20 parts on this diagram · 1 diagram in section
