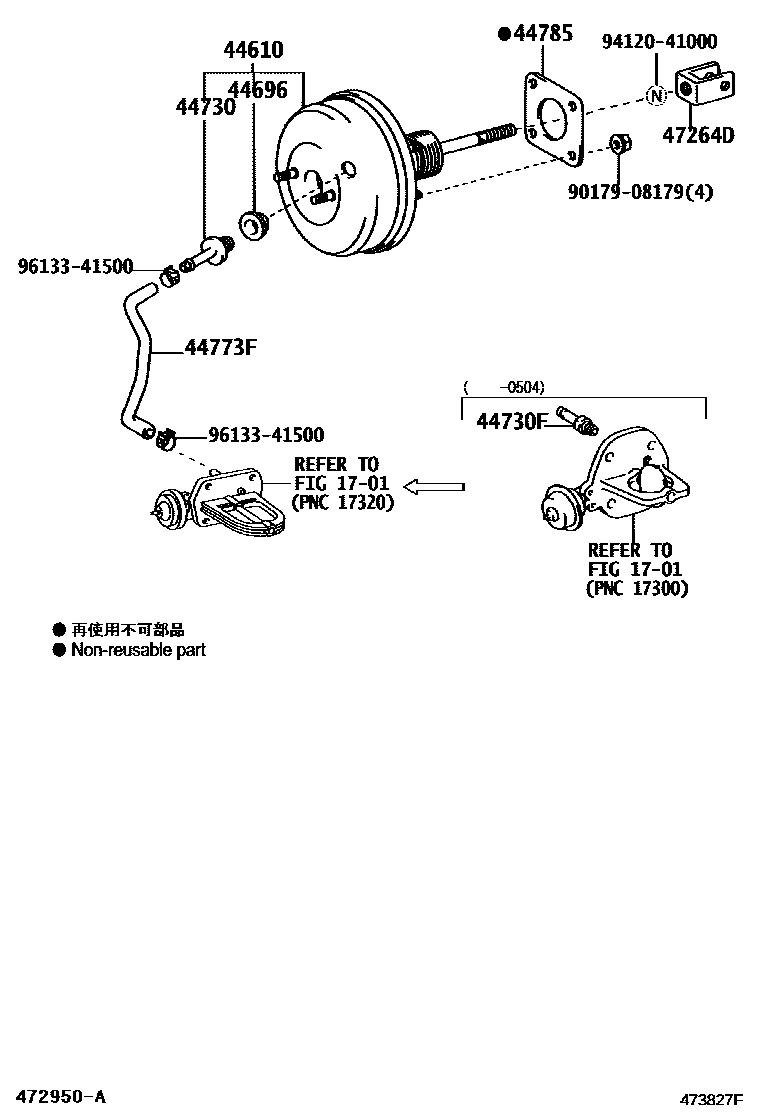

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-58010iMNH10..MS200312-200504

main44610-58011iMNH10..MS200603-200804

main44610-58020iMNH10..MZ200504-200804

44696GROMMET, CHECK VALVE

main90480-24439iMNH10200312-200504

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iMNH10200504-200804

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMNH10200312-200504

44773FHOSE, UNION TO CHECK VALVE

main44773-58010iMNH10200312-200504

main44773-58030iMNH10200504

44785GASKET, BRAKE BOOSTER

main44785-32010iMNH10200312-200504

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-60020iMNH10200312-200504

9017908179

main90179-08179

9412041000

main94120-41000

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
