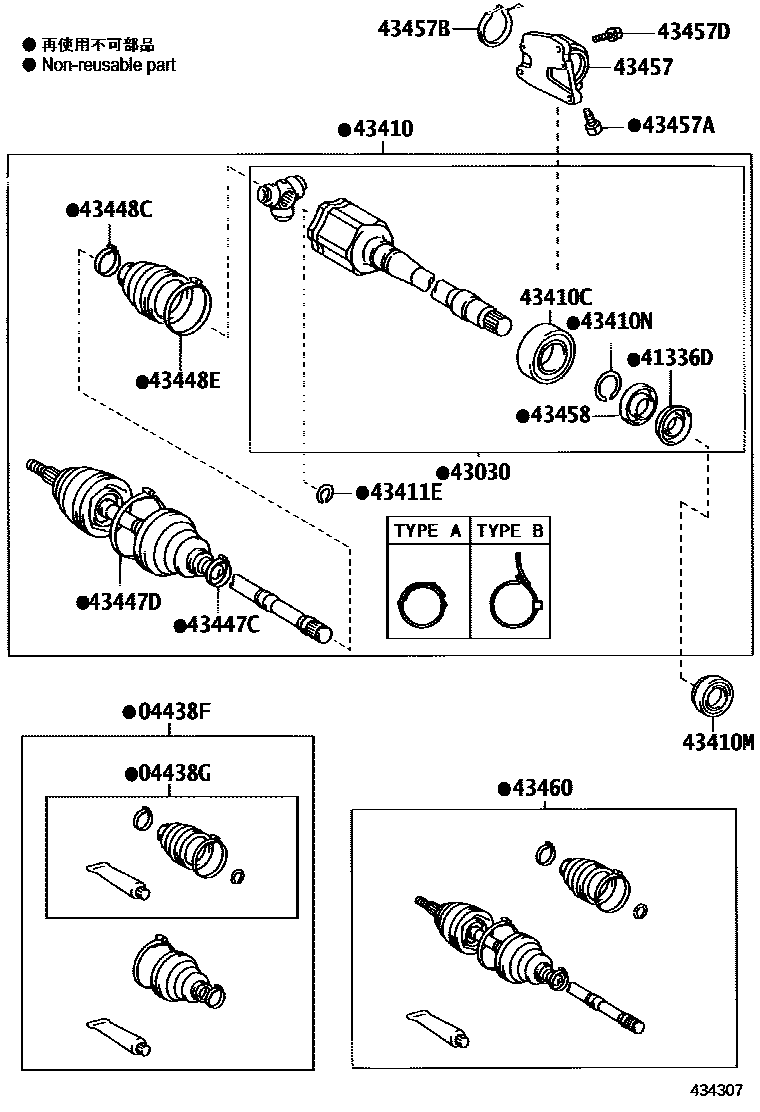

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-58050i200504

main04428-58060i200411-200504

main04438-44051i200312-200411

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-58030i200504

main04438-28041i200312-200411

main04438-58020i200411-200504

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020i200312-200504

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-58011i200312-200504

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-58010i200504-200804

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002i200312-200409

main90363-41003i200409-200504

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40028i200312-200504

main90311-40029i200511-200804

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015i200312-200504

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010i200312-200504

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48010i200312-200504

main42345-48030i200504

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-44010i200312-200504

main42345-44020i200504

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010i200504

TYPE A:REFER ILLUST.

main90949-01559i200504

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160i200504

main90949-01076i200312-200504

TYPE B:REFER ILLUST.

43457BRACKET, DRIVE SHAFT BEARING

main43457-33010i200312-200504

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461i200504

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002i200312-200504

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3i200312-200504

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010i200504

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39156i200312-200411

main43460-49275i200411-200504

19 parts on this diagram · 2 diagrams in section
