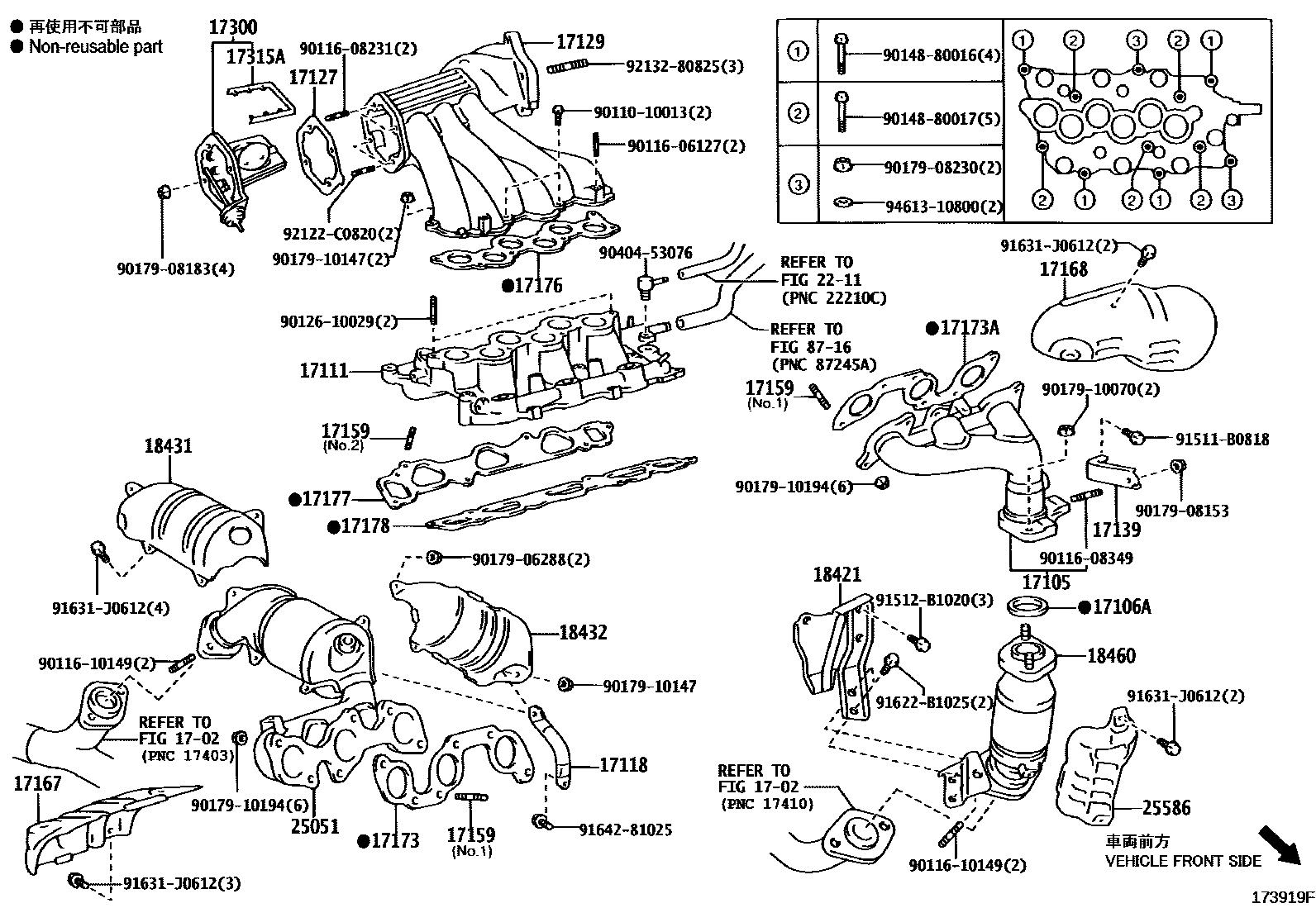

MANIFOLD
1702
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17106AGASKET, EXHAUST PIPE
17111MANIFOLD, INTAKE
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17139STAY, MANIFOLD, NO.2
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.2
NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17315AGASKET, INTAKE AIR CONTROL VALVE
18421STAY, CONVERTER PROTECTOR, LH
18431INSULATOR, CATALYTIC CONVERTER, UPPER
18432INSULATOR, CATALYTIC CONVERTER, LOWER
18460CONVERTER ASSY, MONOLITHIC, LH
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*115=TOYOTA/03-/Y
25586INSULATOR, MANIFOLD CONVERTER, NO.1
8716
9011010013
main90110-10013
9011606127
main90116-06127
9011608231
main90116-08231
9011608349
main90116-08349
9011610149
main90116-10149
9012610029
main90126-10029
9014880016
main90148-80016
9014880017
main90148-80017
9017906288
main90179-06288
9017908153
main90179-08153
9017908183
main90179-08183
9017908230
main90179-08230
9017910070
main90179-10070
9017910147
main90179-10147
9017910194
main90179-10194
9040453076
main90404-53076
91511B0818
main91511-B0818
91512B1020
main91512-B1020
91622B1025
main91622-B1025
91631J0612
main91631-J0612
9164281025
main91642-81025
92122C0820
main92122-C0820
9213280825
main92132-80825
9461310800
main94613-10800
50 parts on this diagram · 3 diagrams in section
