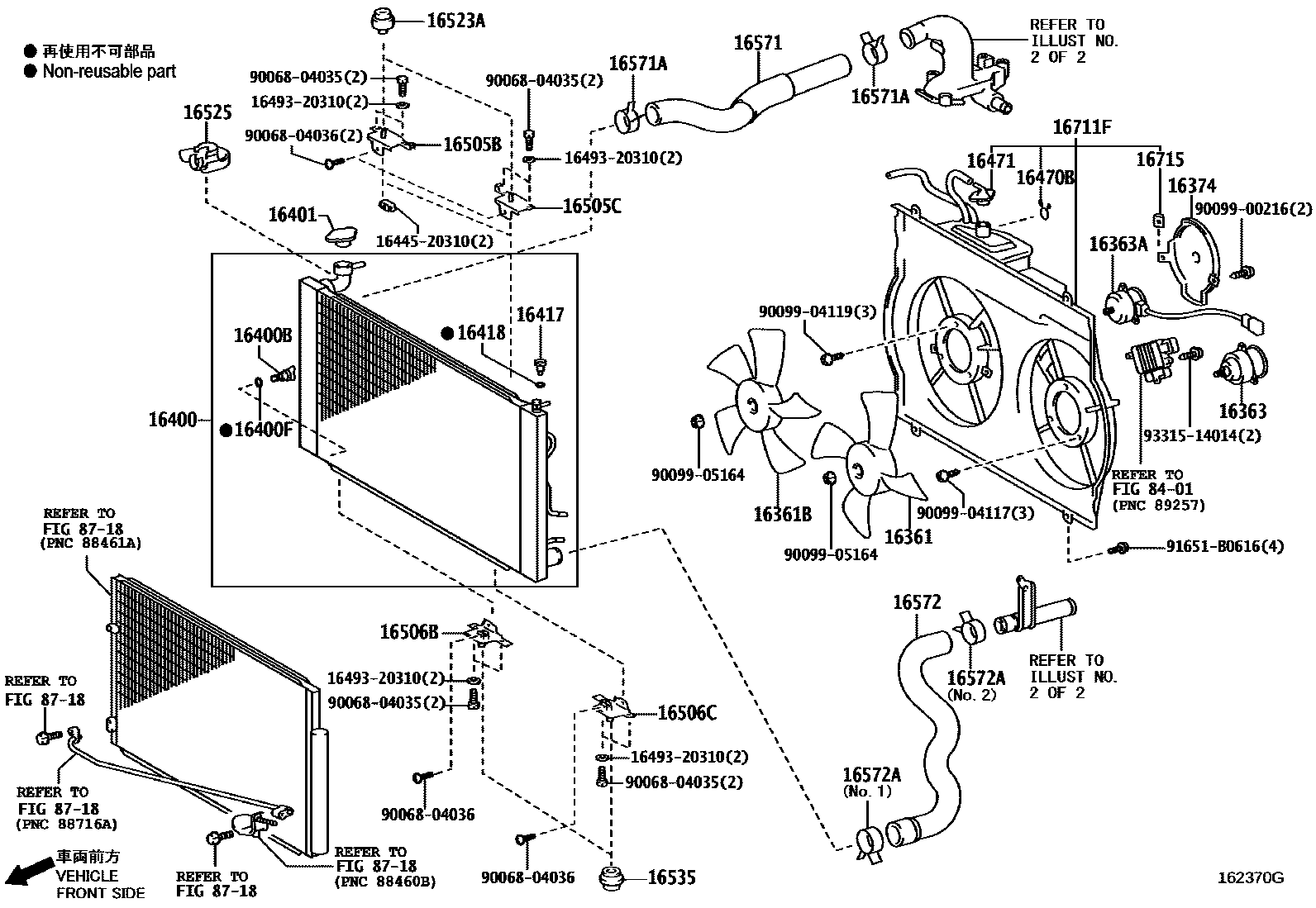

RADIATOR & WATER OUTLET
16361FAN
PNC16361B REFER
16361BFAN, NO.2
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-31520
16417COCK
16418PACKING
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH
16523ACUSHION, RADIATOR SUPPORT
16525TRAY, WATER FILLER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1
NO.2
16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)
16715BRACKET, FAN SHROUD
1644520310
main16445-20310
1649320310
main16493-20310
9006804035
main90068-04035
9006804036
main90068-04036
9009900216
main90099-00216
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
91651B0616
main91651-B0616
9331514014
main93315-14014
36 parts on this diagram · 4 diagrams in section
