Toyota 713210 — MIRROR

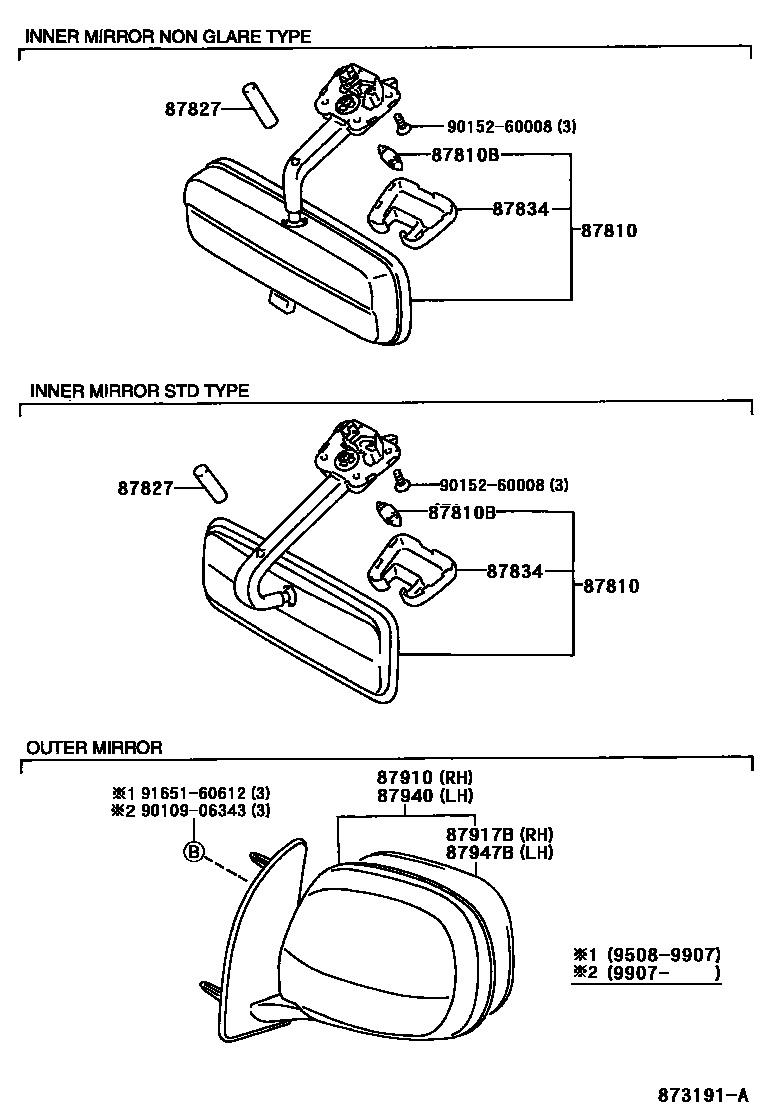

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
87810-26010
87810-26020
90981-11027
87810-26030
87810-26050
87810-26080
99132-12100
87810BBULB, INNER REAR VIEW MIRROR LAMP
87827ABSORBER, INNER REAR VIEW MIRROR
87828-30010
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
81241-95J03
87910MIRROR ASSY, OUTER REAR VIEW, RH
87910-26130
87910-26131
87910-26132
87910-26140
87910-26141
87910-26190
87910-26191
87910-26192
87910-26193
87910-26230
87910-26231
87910-26340
87910-26341
87910-26342
87910-26343
87910-26390
87910-26391
87910-26410
87910-26411
87910-26420
87910-26490
87910-26491
87910-26492
87910-26500
87910-26501
87910-26520
87917BMIRROR, OUTER REAR VIEW, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87940-26160
87940-26161
87940-26162
87940-26200
87940-26201
87940-26202
87940-26203
87940-26310
87940-26311
87940-26390
87940-26391
87940-26392
87940-26393
87940-26460
87940-26461
87940-26480
87940-26481
87940-26490
87940-26610
87940-26611
87940-26612
87940-26620
87940-26621
87940-26640
87947BMIRROR, OUTER REAR VIEW, LH
9010906343
90109-06343
9015260008
90152-60008
9165160612
91651-60612

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota 713210

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota 713210. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
