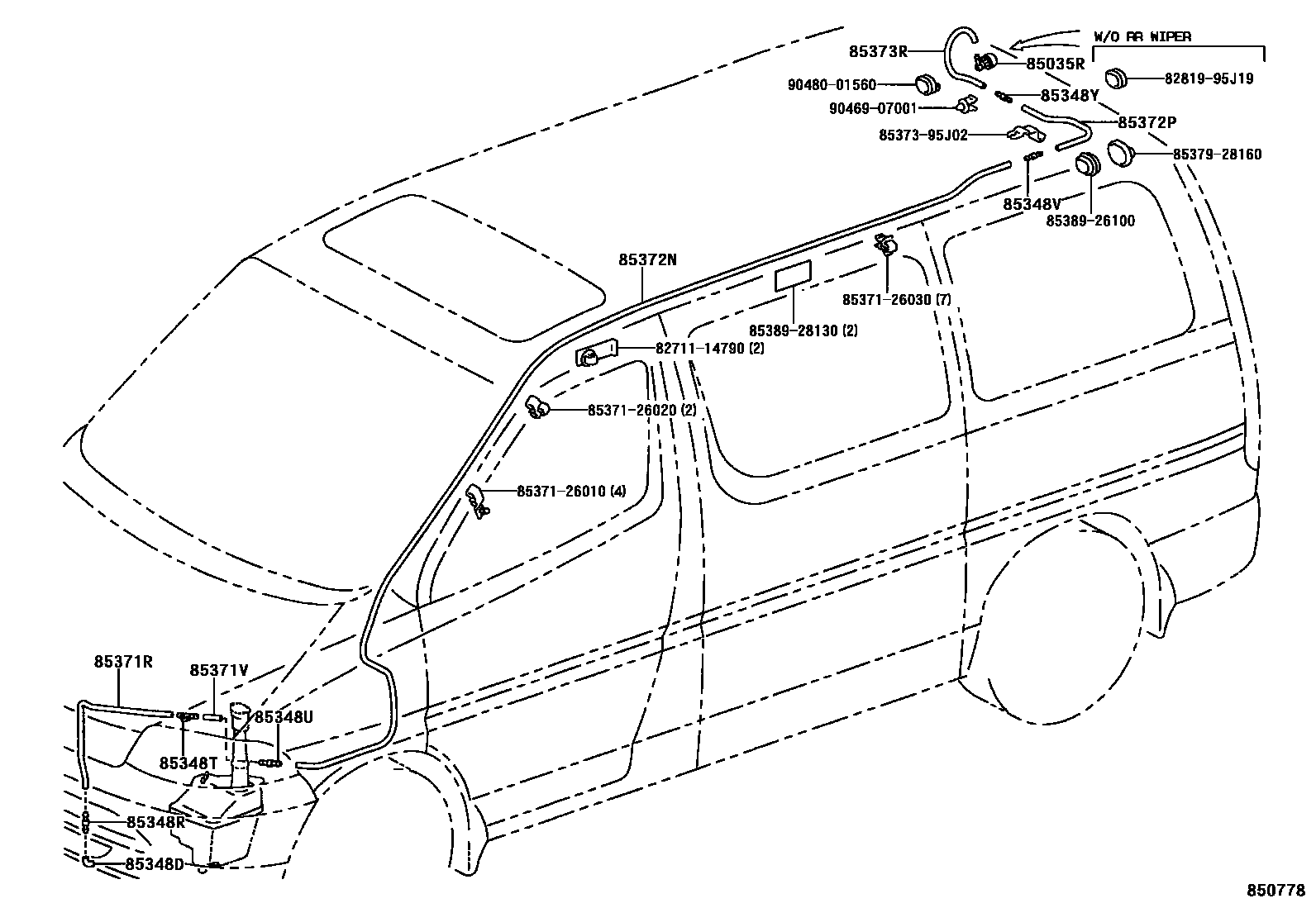

REAR WASHER

0001 1 0002 1 0003 1W(DOUBLE SWING BACK DOOR)

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-26010iRCH12,22199907-200311

main85391-26040iLXH1#,2#..STD;RCH13..ATM..STD199907-200108

W(DOUBLE SWING BACK DOOR)

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-90A00iLXH12,RCH12199508-199608

main85349-89122iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199702-199910

main85375-12520iLXH1#,RCH1#199608-199702

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iRCH13,19,23,29..MTM199907-200605

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

main85355-20200iRCH12,22200005-200311

85348YJOINT, REAR WASHER HOSE, NO.5

main85031-12250iLXH1#,RCH1#199605-199702

main85349-89122iKLH1#,2#..STD200108-200608

W(DOUBLE SWING BACK DOOR)

main85375-10260iRCH13,19,23,29..MTM199907-200605

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

L=1800(*H,L=850)

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33080iKLH1#,2#199907-200608

L=1450(*H,L=40)

main90099-33299iLXH12,RCH12199508-199608

L=1000(*H,L=40)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iLXH2#,RCH2#199703-199907

L=4985(*H,L=4750)

main90099-59142iKLH1#200608

L=4300

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iRCH13,19,23,29..MTM..STD199907-200605

L=1450(*H,L=50),W(DOUBLE SWING BACK DOOR)

main90099-33299iKLH1#,2#200608

L=1000(*H,L=410)

main90099-59143iLXH1#,RCH1#199508-199609

L=520

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-59110iKLH1#,2#199907-200608

L=380

main90446-07001iRCH13,19,23,29..MTM..STD199907-200605

L=1800(*H,L=1150),W(DOUBLE SWING BACK DOOR)

8271114790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14790

8281995J19GROMMET, WIRING HARNESS

main82819-95J19

8537126010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26010

8537126020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26020

8537126030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26030

8537395J02HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-95J02

8537928160JOINT

main85379-28160

8538926100PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-26100

8538928130PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-28130

9046907001

main90469-07001

9048001560

main90480-01560

23 parts on this diagram · 3 diagrams in section
