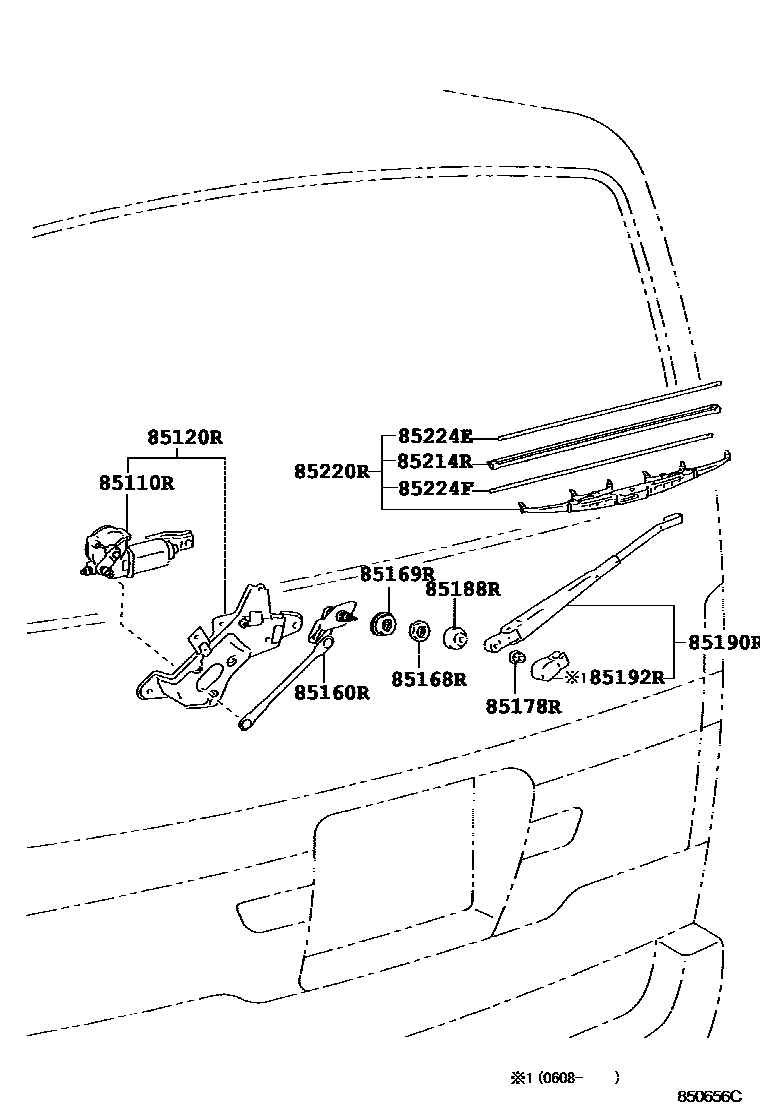

REAR WIPER
85110RMOTOR ASSY, REAR WIPER
W(DOUBLE SWING BACK DOOR),RH
W(DOUBLE SWING BACK DOOR),RH
RH
W(DOUBLE SWING BACK DOOR),LH
W(DOUBLE SWING BACK DOOR),LH
LH
85120RMOTOR AND BRACKET ASSY, REAR WIPER
85160RLINK ASSY, REAR WIPER
85168RNUT, REAR WIPER LINK PIVOT, NO.1
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
85178RNUT (FOR REAR WIPER ARM SETTING)
W(DOUBLE SWING BACK DOOR)
85188RCAP, REAR WIPER PIVOT, NO.1
85190RARM ASSY, REAR WIPER
W(DOUBLE SWING BACK DOOR),RH
LH
85192RCOVER, REAR WIPER ARM
W(DOUBLE SWING BACK DOOR)
85214RRUBBER, REAR WIPER
W(DOUBLE SWING BACK DOOR)
85220RBLADE ASSY, REAR WIPER
W(DOUBLE SWING BACK DOOR)
85224EPLATE, REAR WIPER RUBBER BACKING, NO.1
W(DOUBLE SWING BACK DOOR)
85224FPLATE, REAR WIPER RUBBER BACKING, NO.2
W(DOUBLE SWING BACK DOOR)
13 parts on this diagram · 2 diagrams in section
