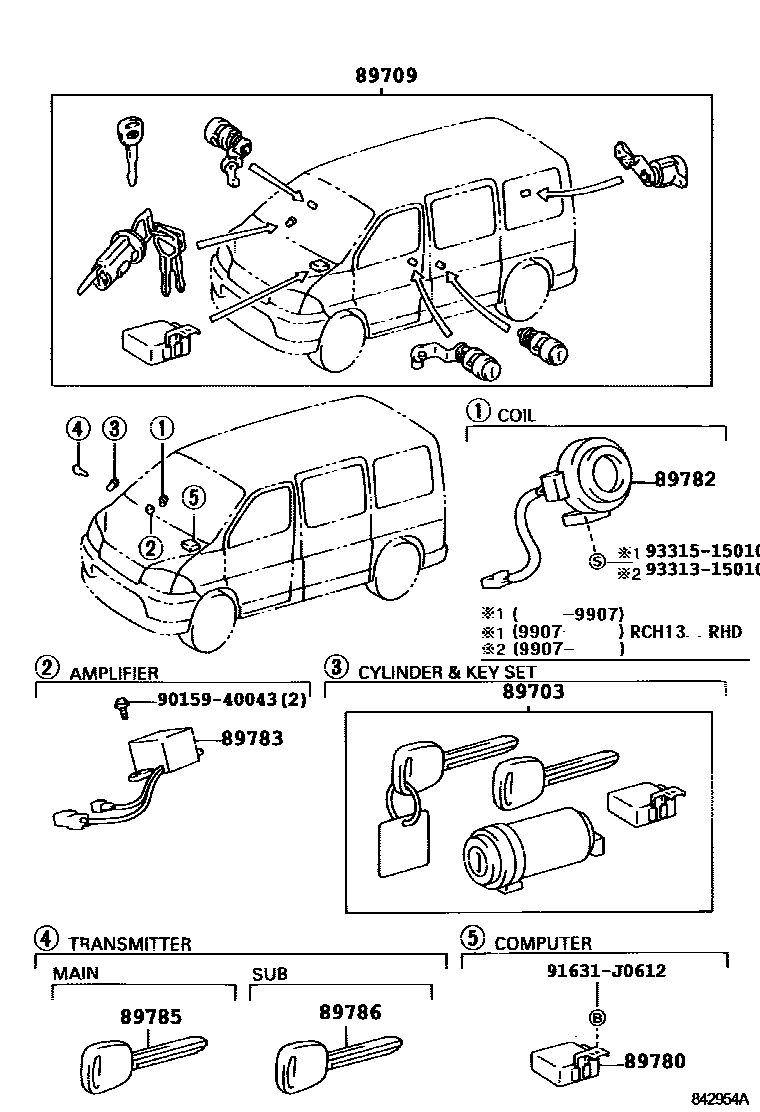

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-26010iRCH12,13..RHD..EUR199708-199805

main89703-26020iRCH1#..LHD199508-199708

main89703-26030iLXH12,22..RHD199907-200108

main89703-26040iLXH1#,2#..LHD199907-200108

main89703-26050iRCH13..RHD199805-199910

main89703-26060iRCH13,19,2#..LHD199805-199907

89709COMPUTER SET, TRANSPONDER KEY

main89709-26010iRCH12,13..RHD..EUR199508-199805

main89709-26020iRCH1#,22,23..LHD..4DV199508-199805

main89709-26030iRCH1#,2#..5DV199508-199805

main89709-26070iRCH13..RHD199805-199910

main89709-26080iRCH13,19,23..LHD..4DV199805-199907

main89709-26090iRCH13,19,2#..5DV199805-199907

main89709-26110iRCH13,19,23..LHD..4DV..STD199907-200108

W(DOUBLE SWING BACK DOOR)

main89709-26120iRCH13,19,23,29..5DV199907-200108

W(DOUBLE SWING BACK DOOR)

main89709-26170iRCH13..RHD199910-200108

W(DOUBLE SWING BACK DOOR)

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-26011iRCH2#;RCH12..RHD..EUR199508-199708

main89780-26021iRCH13,19,2#..LHD199804-199805

main89780-26070iRCH13..RHD199805-199910

main89780-26080iRCH13,19,23,29..LHD199907-200108

main89780-26090iKLH12,22..RHD200108-200608

main89780-26100iKLH1#,2#..LHD200108-200608

main89780-26130iKLH12,22..RHD200608-200808

main89780-26131iKLH12,22..RHD200808

main89780-26140iKLH1#,2#..LHD200608-200808

main89780-26141iKLH1#,2#..LHD200808

89782COIL, TRANSPONDER KEY

main89782-26010iRCH12..EUR199508-199608

89783AMPLIFIER, TRANSPONDER KEY

main89783-26010iLXH1#,2#,RCH1#,2#..EUR199608-199804

main89783-26020iRCH13,19,23,29200108-200605

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iKLH12..GL200608-200808

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-26020iLXH1#,2#,RCH1#,2#..EUR199608-199804

main89786-60050iKLH1#,2#200108-200608

9015940043

main90159-40043

91631J0612

main91631-J0612

9331315010

main93313-15010

9331515010

main93315-15010

11 parts on this diagram · 3 diagrams in section
