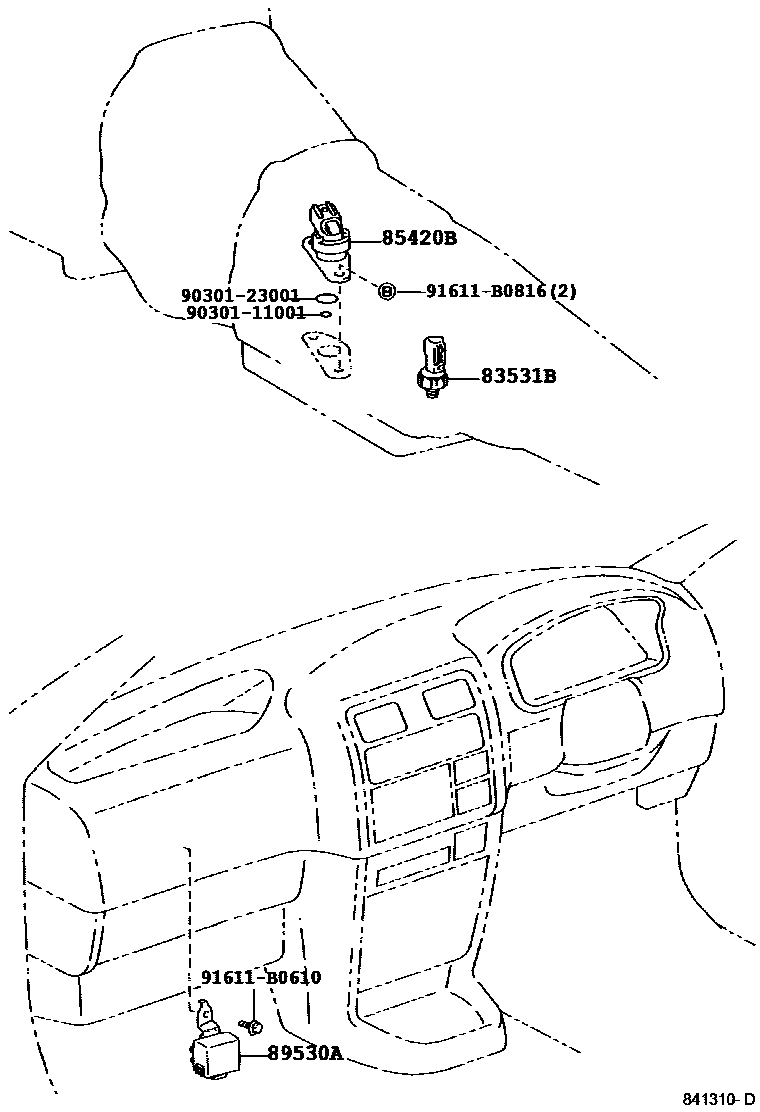

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

83531BSWITCH, OIL PRESSURE

main83531-12010iLXH12,22,RCH12,13..ATM199508-199907

85420SOLENOID ASSY, TRANSMISSION

main35250-30050iKLH12,22..ATM200108-200608

NO.1,DENSO

main35250-30070iKLH12,22..ATM200108-200608

NO.2,DENSO

main35250-50030iKLH12,22..ATM200206-200608

NO.3

main85420-22150iKLH12,22..ATM200108-200206

NO.1

main85420-22170iKLH12,22..ATM200108-200206

NO.2

main85420-30260iKLH12,22..ATM200108-200206

NO.3,DENSO

main85420-30270iKLH12,22..ATM200108-200206

NO.3,AISIN

85420BSOLENOID ASSY, TRANSMISSION

main85420-30160iLXH12,22,RCH12,13..ATM199508-199907

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-26160iLXH12,22..ATM199508-199907

9030111001

main90301-11001

9030123001

main90301-23001

91611B0610

main91611-B0610

91611B0816

main91611-B0816

8 parts on this diagram · 2 diagrams in section
