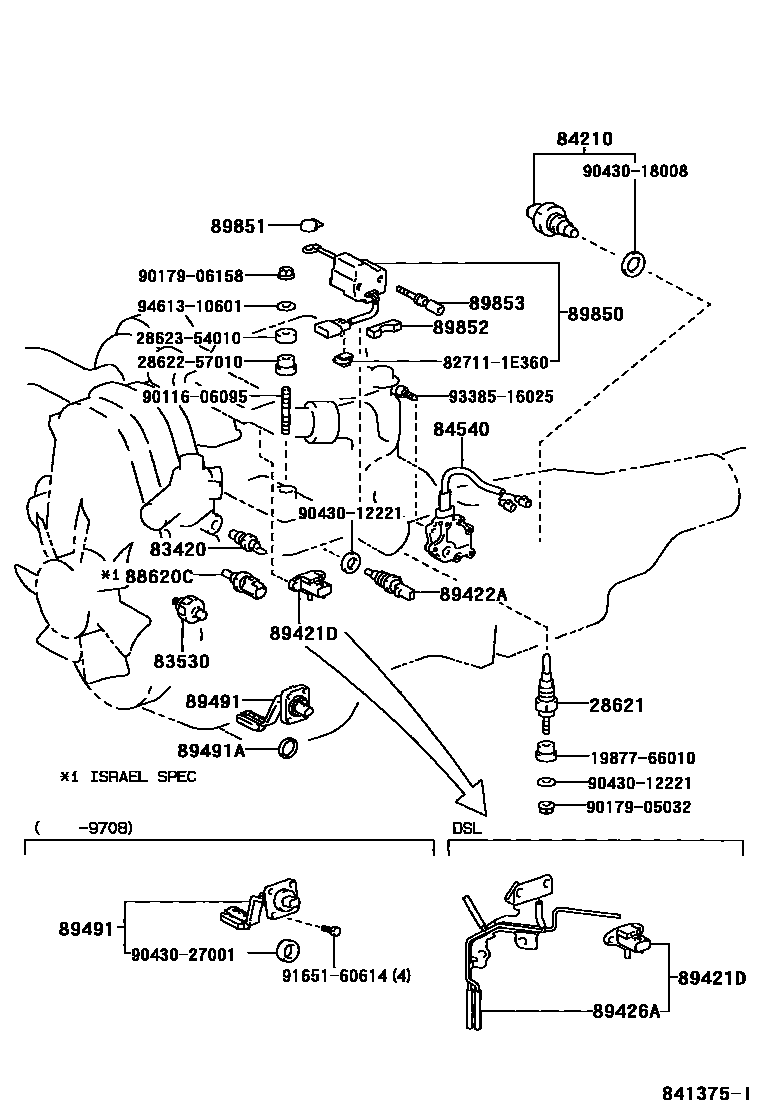

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL SWITCHES 0009 1INSTRUMENT PANEL SWITCHES 0010 1IGNITION & COMBINATION SWITCH0011 1IGNITION & COMBINATION SWITCH0012 1IGNITION & COMBINATION SWITCH0013 1DOOR,TRIM,ROOF & FLOOR 0014 1DOOR,TRIM,ROOF & FLOOR

28621RESISTOR, GLOW PLUG

main28621-54080i2L#..LXH1#199508-199703

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLXH1#,2#,RCH12,18,22,28199508-200405

main83420-20040iRCH13,19,23,29..DX,STD199804-200605

main83420-26010iKLH1#,2#200405-200608

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRCH13..ATM199803-200605

main83530-30060iLXH1#,2#199508-199803

sub83530-60030

main83530-30090iRCH1#,2#199508-199803

sub83530-60020

main83530-60010iKLH1#,2#200108-200608

main83530-60030iLXH1#,2#199803-200108

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-30290iLXH12,22,RCH12,13..ATM199508-200108

TOKAIRIKA

main84540-30300iLXH12,22,RCH13..ATM199508-200108

MATSUSHITA

main84540-50020iKLH12,22..ATM200202-200608

main84540-51010iKLH12,22..ATM200108-200202

88620CTHERMO SWITCH ASSY

main88620-12070iLXH12,22..5DV..TD199701-200108

89421DSENSOR, TURBO PRESSURE

main89420-26090iLXH12,22..DSL199804-200108

sub89420-26091

main89421-21010iLXH1#,2#..TD199804-200108

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLXH1#,2#199508-200108

89426ABRACKET, VACUUM SENSOR

main89426-26061iLXH12,22..DSL199804-200108

89491SENSOR, ENGINE OIL LEVEL

main89491-26061iRCH18,28199608-199711

sub89491-26062

main89491-26062iRCH18,28199711-199804

main89491-26081iLXH12,22199508-199705

main89491-26091iKLH18,28200108-200608

main89491-26121iKLH12,22200108-200608

main89491-26130iLXH18,28199608-199705

sub89491-26160

main89491-26140iRCH12,22199508-199711

sub89491-26141

main89491-26141iRCH12,22199711-200311

main89491-26150iRCH19,29199804-200605

main89491-26160iLXH1#,2#199705-200108

main89491-37011iRCH13,23..MTM199804-200605

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLXH22..06S;LXH12..RHD..DX;LXH22..RHD..5DV;LXH18,28,RCH1#,2#199705-200608

89850UNIT ASSY, FUEL CUT VALVE CONTROL

main89850-20011iLXH1#,2#199608-200108

89851CAP, FUEL CUT VALVE CONTROLLER

main89851-20010iLXH1#,2#199608-200108

89852CLAMP, FUEL CUT VALVE CONTROLLER

main89852-20010iLXH1#,2#199608-200108

89853BOLT, FUEL CUT VALVE CONTROLLER

main89853-20010iLXH1#,2#199608-200108

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9011606095

main90116-06095

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9165160614

main91651-60614

9338516025

main93385-16025

9461310601

main94613-10601

28 parts on this diagram · 14 diagrams in section
