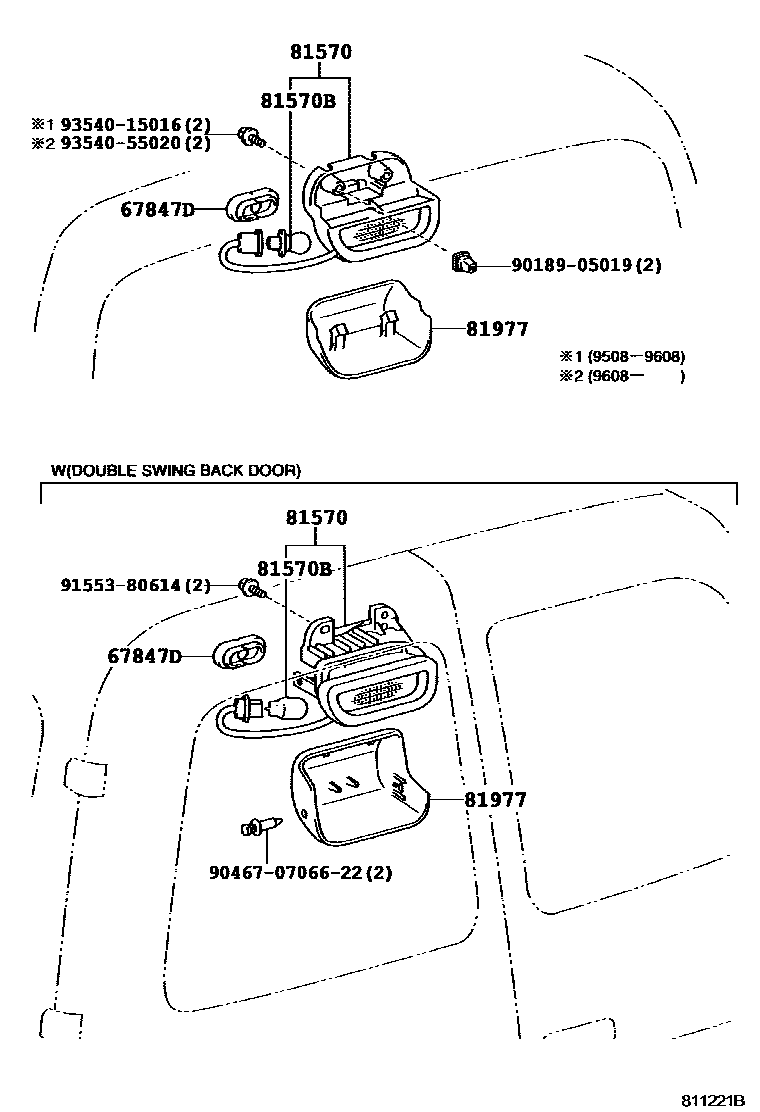

CENTER STOP LAMP

67847DCOVER, BACK DOOR SERVICE HOLE

main67847-26050iRCH13,19,23,29..MTM199508-200608

81570LAMP ASSY, CENTER STOP

main81570-26050iRCH13,19,23,29..MTM199508-200808

main81570-26160iRCH13,19,23,29..MTM..STD199907-200608

W(DOUBLE SWING BACK DOOR)

main81570-26180iKLH1#,2#200808

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043iKLH1#,2#..STD199907-200608

12V 21W,W(DOUBLE SWING BACK DOOR)

main99132-11210iLXH1#,2#;RCH13..ATM199508-200608

12V 21W

81977COVER, CENTER STOP LAMP

main81977-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

main81977-26060iRCH13,19,23,29..MTM..STD199907-200608

W(DOUBLE SWING BACK DOOR)

9018905019

main90189-05019

904670706622

main90467-0706622

9155380614

main91553-80614

9354015016

main93540-15016

9354055020

main93540-55020

9 parts on this diagram · 1 diagram in section
