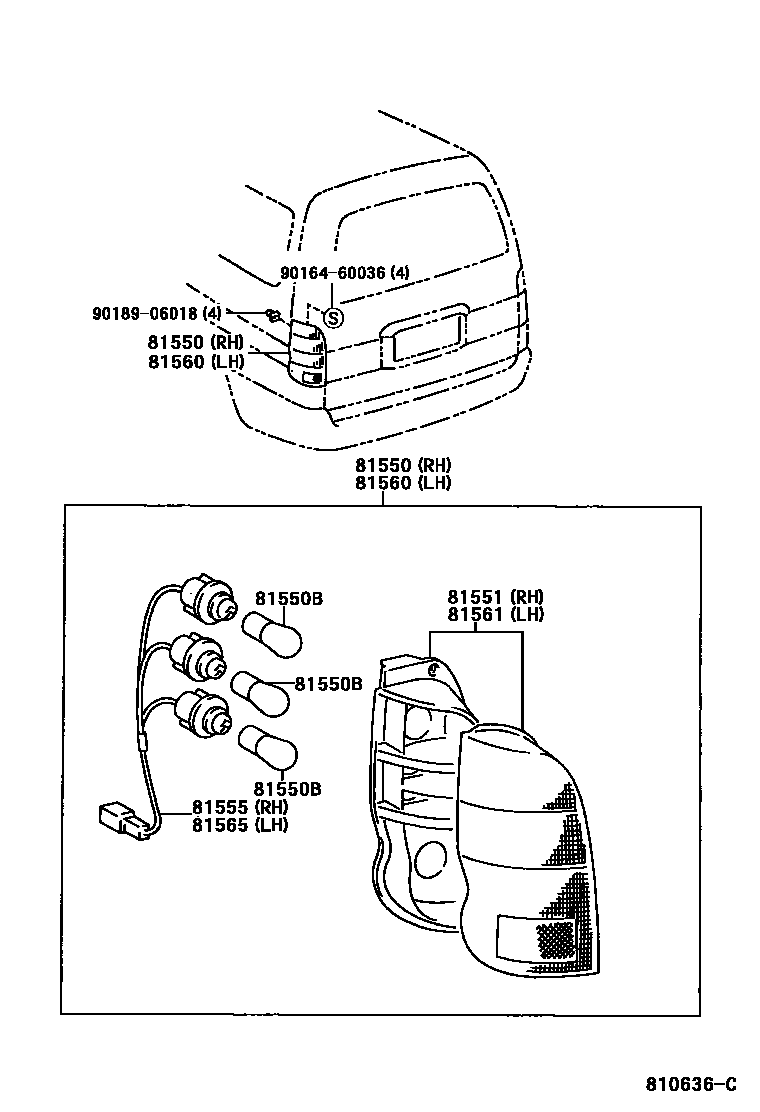

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
main81550-26180iLXH12..09S;LXH12..ATM;LXH18,RCH18..03S;LXH12..LHD..SP..DSL; RCH12..DX;LXH12..05S;RCH12..5DV..03S;RCH13..09S..MTM;RCH13..LHD..(03S,05S);LXH22,RCH22,23..LHD..(03S,09S);LXH12,28,RCH19,28,29..5DV..MTM..(EFI,TD)199610-199907
FINLAND SPEC OR NORWAY SPEC; FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,AMBER
12V 21W
12V 21/5W
81551LENS, REAR COMBINATION LAMP, RH
main81551-26180iLXH12..4DV..STD..TD;LXH12..LHD..SG..(03S,06S); LXH12..GL;RCH13..MTM..DX;LXH2#,RCH29..LHD;RCH19,23..03S,09S;LXH12..5DV..MTM..TD;RCH13..LHD..(03S,08S); LXH18;LXH12..09S;LXH12..ATM..STD;LXH12..LHD..SP..DSL199907-200108
FINLAND SPEC; FINLAND SPEC OR NORWAY SPEC; FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
main81560-26180iLXH12..4DV..STD..TD;LXH12..LHD..SG..(03S,06S); LXH12..5DV..MTM..TD; LXH12..GL;RCH13..MTM..DX;LXH2#,RCH29..LHD;RCH19,23..03S,09S;RCH13..LHD..(03S,08S); LXH18;LXH12..09S;LXH12..ATM..STD;LXH12..LHD..SP..DSL199907-200108
FINLAND SPEC; FINLAND SPEC OR NORWAY SPEC; FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC; FINLAND,NORWAY OR SWEDEN SPEC
FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
81561LENS, REAR COMBINATION LAMP, LH
main81561-26180iLXH12..09S;LXH12..LHD..SP..DSL;LXH1#,RCH18..5DV..(EFI,TD); RCH12..DX;LXH12..05S;RCH12..5DV..03S199508-199610
FINLAND SPEC OR NORWAY SPEC; FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-26130iLXH12..09S;LXH12..ATM;LXH18,RCH18..03S;LXH12..LHD..SP..DSL; LXH12..SG..03S;LXH12..4DV..STD..TD; RCH12..DX;LXH12..05S;LXH2#,RCH2#;RCH12..5DV..03S;LXH12..5DV..MTM..TD;LXH12,RCH12..RHD..EUR199610-199708
FINLAND SPEC; FINLAND SPEC OR NORWAY SPEC; FINLAND SPEC OR NORWAY SPEC OR SWEDEN SPEC
9016460036
main90164-60036
9018906018
main90189-06018
9 parts on this diagram · 3 diagrams in section
