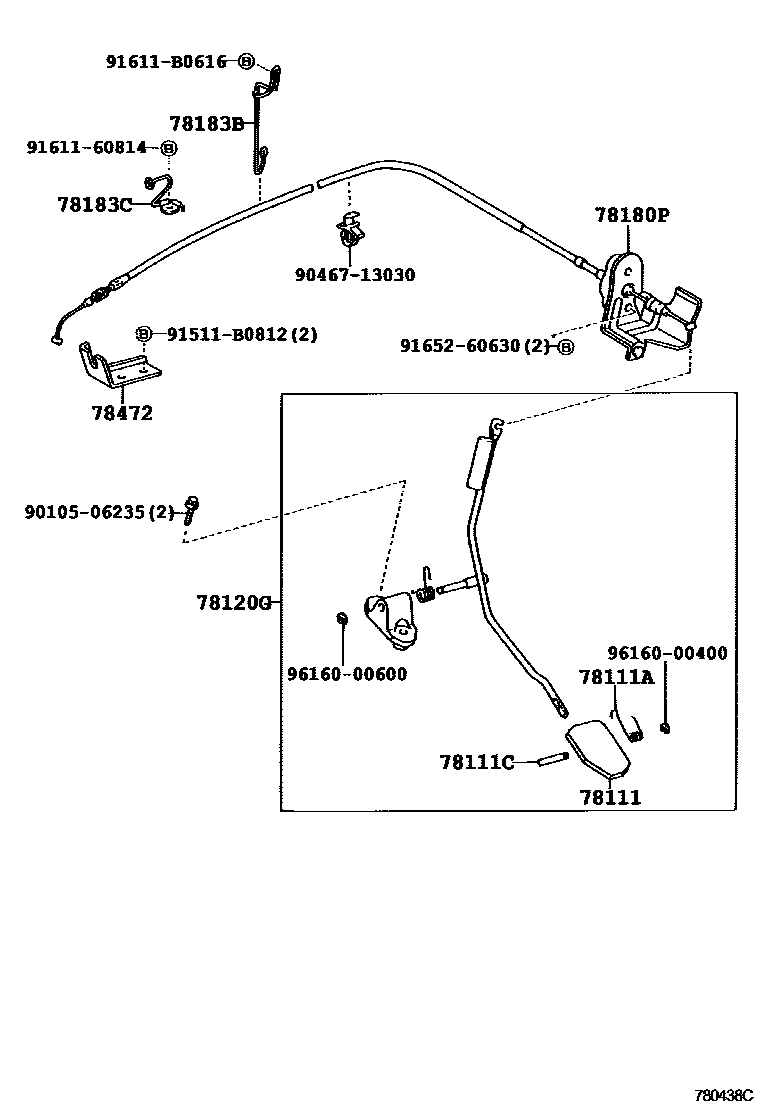

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78111PEDAL, ACCELERATOR

main78111-20050iKLH12,22..RHD199907-200608

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iLXH12,22,RCH12,13..RHD..03S199508-199910

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iLXH12,22,RCH12,13..RHD..03S199508-199910

78120GROD ASSY, ACCELERATOR PEDAL

main78120-26010iLXH1#,2#..LHD..MTM199907-200108

main78120-26030iLXH12,RCH12..RHD199508-199703

main78120-26040iLXH12,22,RCH12..ATM199508-199907

main78120-26050iLXH12,22..RHD199907-200108

main78120-26100iRCH13,19,23,29..LHD..MTM199907-200605

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-26010iLXH1#,2#..LHD199508-199907

main78180-26020iRCH1#,2#..LHD199508-199804

main78180-26030iLXH12,22..RHD199508-199907

main78180-26040iRCH12,22199907-200311

main78180-26060iRCH13..RHD199910-200605

main78180-26100iRCH13,19,2#..LHD199804-199907

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-26070iLXH1#,2#,RCH1#,2#..LHD199508-199907

main78183-26100iRCH12,22199907-200311

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-26080iLXH1#,2#199508-199907

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-26020iLXH1#,2#199508-199907

9010506235

main90105-06235

9046713030

main90467-13030

91511B0812

main91511-B0812

9161160814

main91611-60814

91611B0616

main91611-B0616

9165260630

main91652-60630

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 7 diagrams in section
