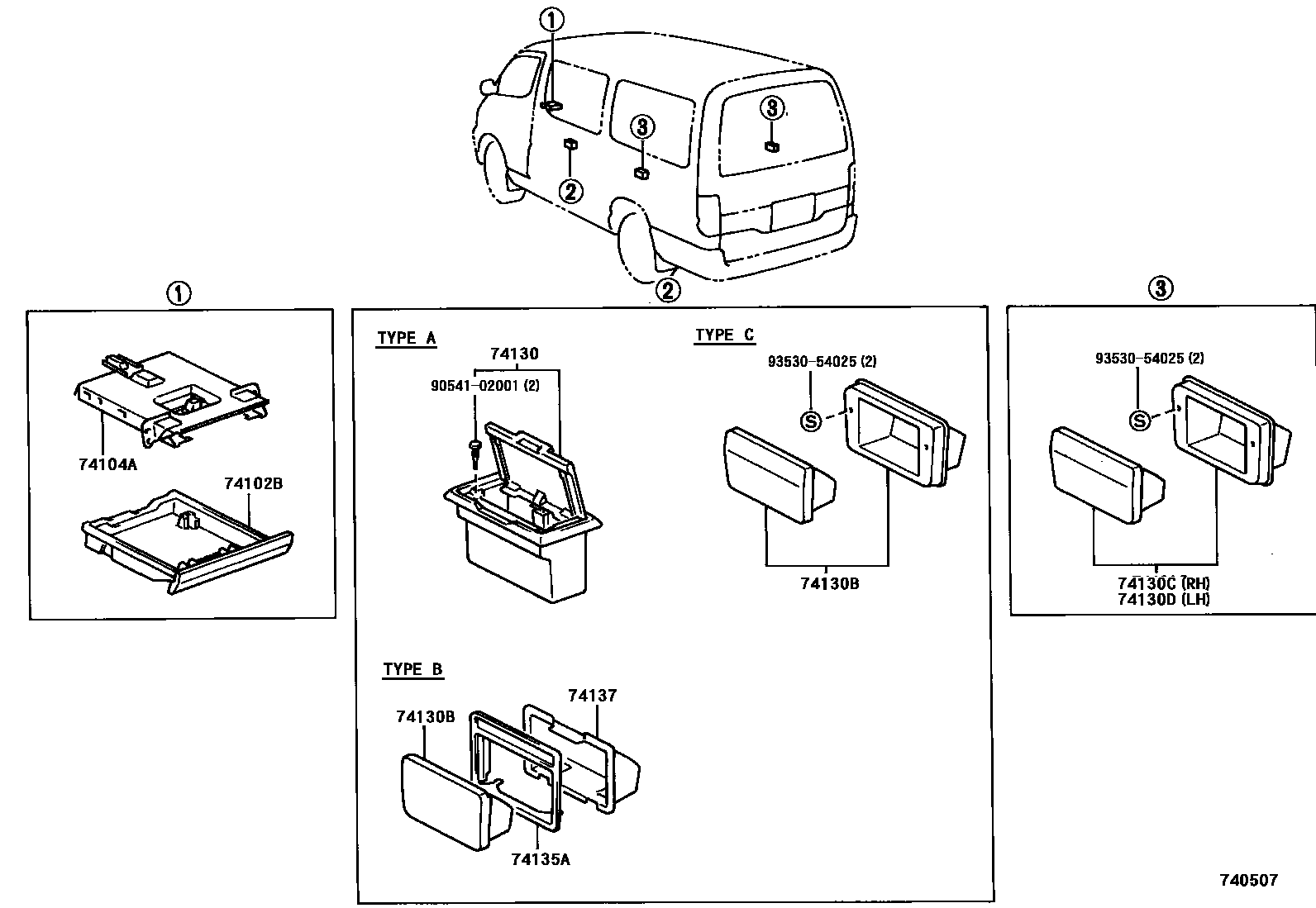

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-26020-C0iRCH13,19,23,29..MTM199907-200605

BLACK,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-26030iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-199910

74130RECEPTACLE ASSY, REAR ASH

main74130-26020-B0iLXH12,RCH12,13..05S199508-199907

TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#

main74130-26020-B3iLXH12..GL199907-200108

TYPE A:REFER TO ILLUSTRATION,BLUE GRAY,TRIM1#

74130BRECEPTACLE ASSY, REAR ASH

main74105-10010-B0iKLH22..06S199907-200608

TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#

main74105-10010-B5iKLH22..06S201010-201111

TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#

main74130-14020-B1×3iKLH12..09S; KLH22..DX200108-200608

TYPE C:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#

74130CRECEPTACLE ASSY, REAR ASH

main74130-14020-B1iLXH12,RCH1#..09S199508-199907

BLUISH GRAY,TRIM1#

74130DRECEPTACLE ASSY, REAR ASH

main74130-14020-B1iLXH12,RCH1#..09S199508-199907

BLUISH GRAY,TRIM1#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iLXH22,RCH1#,23..06S..MTM199508-199907

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iLXH22,RCH1#,23..06S..MTM199508-199907

9054102001

main90541-02001

9353054025

main93530-54025

10 parts on this diagram · 1 diagram in section
